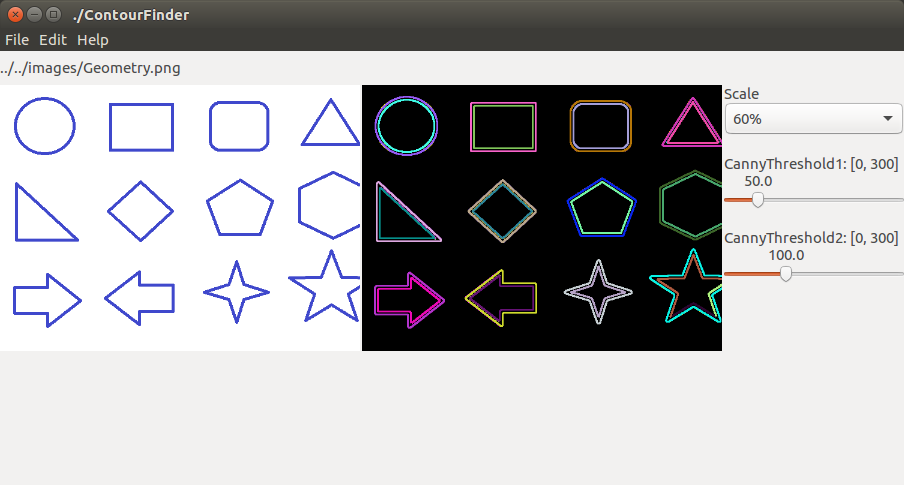

Es++ Sample: ContourFinder


/******************************************************************************
 *
 * Copyright (c) 2017 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 * 1. Redistributions of source code must retain the above copyright
 *    notice, this list of conditions, and the following disclaimer.
 *
 * 2. The name of the author may not be used to endorse or promote products
 *    derived from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
 * IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 * OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
 * IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
 * PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
 * OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
 * WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
 * OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
 * ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 *
 *  ContourFinder.cpp
 *
 *****************************************************************************/

//2017/10/18
//See: http://docs.opencv.org/3.2.0/df/d0d/tutorial_find_contours.html
//
#include <es++/gtkmm-3.0/Application.h>
#include <es++/gtkmm-3.0/Label.h>
#include <es++/gtkmm-3.0/LabeledTrackBar.h>
#include <es++/gtkmm-3.0/FileOpenDialog.h>
#include <es++/opencv-4.0/OpenCVMainView.h>
#include <es++/opencv-4.0/OpenCVScrolledImageView.h>
#include <es++/opencv-4.0/OpenCVScaleComboBox.h>


using namespace Gtk;

namespace Es {

class MainView :public Es::OpenCVMainView {
private:
  ///////////////////////////////////////////////////////
  //Inner classes start.

  class OriginalImageView :public Es::OpenCVScrolledImageView {
  public:
    OriginalImageView()
    {
    }
    void rescale(int scaling_ratio)
    {
      OpenCVScrolledImageView::scaleImage(scaling_ratio);
    }
  };

  class DetectedImageView :public Es::OpenCVScrolledImageView {
  private:
    cv::Mat gray_image;
    cv::Mat detected_image;
    cv::Mat contour_image;

  public:
    DetectedImageView()
    {
    }

    void loadImage(const std::string& filename,
        int imageLoadingFlag= CV_LOAD_IMAGE_COLOR,
                int scaling_ratio=100)
    {
      OpenCVScrolledImageView::loadImage(filename, imageLoadingFlag,
                                scaling_ratio);

      cv::Mat& original_image = getOriginalImage();
      detected_image = original_image.clone();

      cv::cvtColor(original_image, gray_image, COLOR_BGR2GRAY );

      contour_image = gray_image.clone();

      scaleImage(contour_image, scaling_ratio);
    }

    //The following method is based on the sample code
    // on  http://docs.opencv.org/3.2.0/df/d0d/tutorial_find_contours.html
    void detect(int threshold1, int threshold2, int scaling_ratio)
    {
      cv::RNG rng;
      cv::Mat& original_image = getOriginalImage();

      threshold1 = (threshold1/2)*2 + 1;
      threshold2 = (threshold2/2)*2 + 1;

      cv::Canny(gray_image, detected_image,
                    (double)threshold1, (double)threshold2);

      std::vector<std::vector<cv::Point> > contours;
      std::vector<cv::Vec4i> hierarchy;

      //2 find contours on the canny edge-detected image
      cv::findContours(detected_image, contours, hierarchy,
             RETR_TREE, CHAIN_APPROX_SIMPLE, Point(0, 0) );

      contour_image = Mat::zeros(detected_image.size(), CV_8UC3 );

      for( size_t i = 0; i< contours.size(); i++ ) {

        cv::Scalar color = cv::Scalar( rng.uniform(0, 255),
                       rng.uniform(0,255), rng.uniform(0,255) );
        cv::drawContours(contour_image, contours, (int)i, color, 2, 8,
                      hierarchy, 0, Point() );
      }
      scaleImage(contour_image, scaling_ratio);
    }

    void rescale(int scaling_ratio)
    {
      OpenCVScrolledImageView::scaleImage(contour_image, scaling_ratio);
    }
  };
  // Inner classes end.
  ///////////////////////////////////////////////////////

  Es::Label              filepath;

  Es::HorizontalLayout   horiz_layout;

  Es::VerticalLayout     control_pane;

  OriginalImageView      original_image;

  DetectedImageView       detected_image;

  int                    loading_flag;

  Es::OpenCVScaleComboBox scale_combobox;

  Es::LabeledTrackBar     threshold1_trackbar;
  int                     threshold1;

  Es::LabeledTrackBar     threshold2_trackbar;
  int                     threshold2;

  int                     scaling_ratio;  //Percentage.
  static const int        CONTROLPANE_WIDTH = 180;

  std::string             filename;

  Es::FileOpenDialog      file_dialog;
public:
  //////////////////////////////////////////////
  //Constructor
  //
  MainView(Es::Application& applet,
          std::string&      name,
          Es::Args&         args)
  :OpenCVMainView(applet, name, args)
  ,scaling_ratio(100)  //100%
  ,file_dialog(*this, Es::FileOpenDialog::IMAGE_FILES)
  {
    int w = (int)args.get(XmNwidth);
    int h = (int)args.get(XmNheight);

    int ratio = (int)args.get(XmNscalingRatio);

    scaling_ratio = OpenCVImageView::validateScale(ratio);

    Es::MainLayout& main_layout = get_main_layout();

    main_layout.pack_start(filepath, FALSE, FALSE, 0);

    main_layout.pack_start(horiz_layout);

    filename = "../../images/Geometry.png";

    filepath.set_label(filename);
    int ww = (w - CONTROLPANE_WIDTH)/2;

    filepath.set_size_request(w, 30);
    original_image.set_size_request(ww, h);
    detected_image.set_size_request(ww, h);
    control_pane.set_size_request( CONTROLPANE_WIDTH, h);

    horiz_layout.pack_start(original_image);
    horiz_layout.pack_start(detected_image);

    horiz_layout.pack_start(control_pane, FALSE, FALSE, 0);

    scale_combobox.set_selection(scaling_ratio);

    threshold1 = 50;
    threshold1_trackbar.set_label("CannyThreshold1: [0, 300]");
    threshold1_trackbar.configure_adjuster((double)threshold1, 0.0f, 300.0f);
    threshold1_trackbar.set_value_changed_callback(
            sigc::mem_fun(*this, &MainView::threshold1_value_changed) );

    threshold2 = 100;
    threshold2_trackbar.set_label("CannyThreshold2: [0, 300]");
    threshold2_trackbar.configure_adjuster((double)threshold2, 0.0f, 300.0f);
    threshold2_trackbar.set_value_changed_callback(
            sigc::mem_fun(*this, &MainView::threshold2_value_changed) );

    control_pane.set_spacing(20);
    control_pane.pack_start(scale_combobox, Gtk::PACK_SHRINK);
    control_pane.pack_start(threshold1_trackbar, Gtk::PACK_SHRINK);
    control_pane.pack_start(threshold2_trackbar, Gtk::PACK_SHRINK);

    scale_combobox.set_changed_callback(
             sigc::mem_fun(*this, &MainView::scale_changed) );

    loading_flag = IMREAD_COLOR;
    original_image.loadImage(filename, loading_flag, scaling_ratio);
    detected_image.loadImage(filename, loading_flag, scaling_ratio);

    detected_image.detect(threshold1, threshold2, scaling_ratio);

    show_all();
  }

  void scale_changed()
  {
    std::string scale = scale_combobox.get_active_text();
    printf("scale_changed %s\n", scale.c_str());
    scaling_ratio = scale_combobox.get_selection();

    original_image.rescale(scaling_ratio);
    detected_image.rescale(scaling_ratio);
  }

  void threshold1_value_changed()
  {
    threshold1 = (int)threshold1_trackbar.get_value();

    detected_image.detect(threshold1, threshold2, scaling_ratio);
  }

  void threshold2_value_changed()
  {
    threshold2 = (int)threshold2_trackbar.get_value();

    detected_image.detect(threshold1, threshold2, scaling_ratio);
  }

  void file_open()
  {
    int rc = file_dialog.popup();

    if (rc == Gtk::RESPONSE_OK) {
      const std::string filename = file_dialog.get_filename();

      filepath.set_label(filename);

      original_image.loadImage(filename, loading_flag, scaling_ratio);
      detected_image.loadImage(filename, loading_flag, scaling_ratio);

      detected_image.detect(threshold1, threshold2, scaling_ratio);
    }
  }
};
}


int main(int argc, char** argv)
{
  Es::Environment env;

  try {
    std::string name = argv[0];

    Es::Application applet(argc, argv);

    Es::Args args;
    args.set(XmNx, 20);
    args.set(XmNy, 40);
    args.set(XmNwidth, 900);
    args.set(XmNheight, 400);
    args.set(XmNscalingRatio, 60); //60%
    Es::MainView mainv(applet, name, args);

    mainv.show();

    applet.run(mainv);

  } catch (Es::Exception& ex) {
    caught(ex);

  } catch (...) {
    printf("Get exception \n");
  }
  return 0;
}
