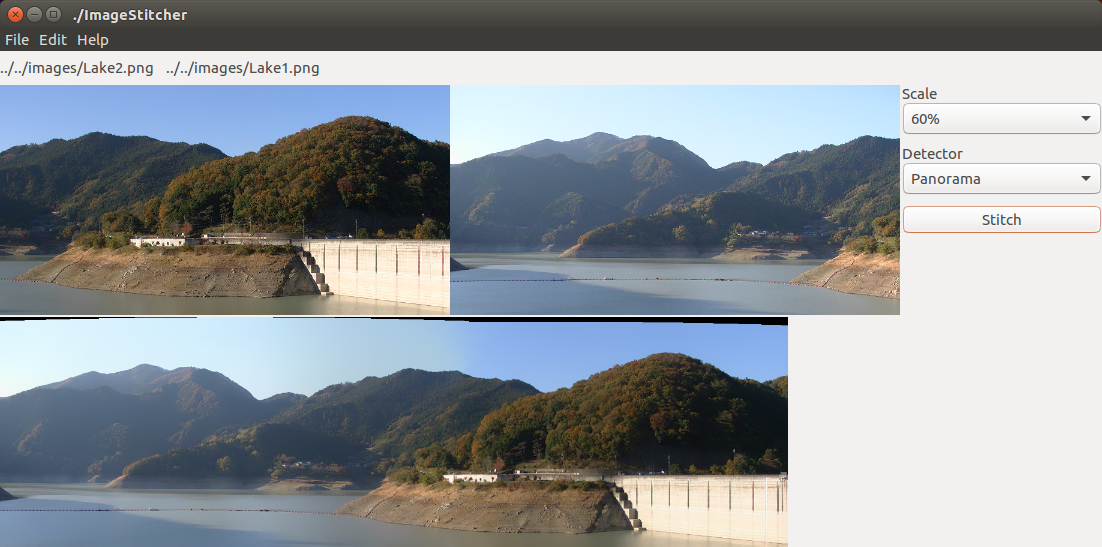

| Es++ Sample: ImageStitcher |
/******************************************************************************
*
* Copyright (c) 2017 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions, and the following disclaimer.
*
* 2. The name of the author may not be used to endorse or promote products
* derived from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
* IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
* OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
* IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
* ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*
*
* ImageStitchr.cpp
*
*****************************************************************************/
//
#include <es++/Pair.h>
#include <es++/gtkmm-3.0/Application.h>
#include <es++/gtkmm-3.0/FileOpenDialog.h>
#include <es++/gtkmm-3.0/Label.h>
#include <es++/gtkmm-3.0/PushButton.h>
#include <es++/opencv-4.0/OpenCVMainView.h>
#include <es++/opencv-4.0/OpenCVScaleComboBox.h>
#include <es++/opencv-4.0/OpenCVScrolledImageView.h>
#include <opencv2/stitching.hpp>
using namespace Gtk;
namespace Es {
class MainView :public Es::OpenCVMainView {
private:
/////////////////////////////////////////////////////
//Inner classes start.
class SourceImageView :public Es::OpenCVScrolledImageView {
private:
public:
SourceImageView()
{
}
void rescale(int scaling_ratio)
{
OpenCVScrolledImageView::scaleImage(scaling_ratio);
}
};
class StitchedImageView :public Es::OpenCVScrolledImageView {
private:
cv::Mat stitched_image;
public:
StitchedImageView()
{
}
void rescale(int scaling_ratio)
{
OpenCVScrolledImageView::scaleImage(stitched_image, scaling_ratio);
}
void set_stitched_image(cv::Mat& mat, int scaling_ratio)
{
stitched_image = mat.clone();
scaleImage(stitched_image, scaling_ratio);
}
};
//Inner classes end.
/////////////////////////////////////////////////////
//
private:
static const int IMAGES_COUNT = 2;
static const int FIRST = 0;
static const int SECOND = 1;
std::string filenames[IMAGES_COUNT];
Es::Label filepath;
Es::HorizontalLayout horiz_layout;
Es::VerticalLayout view_layout;
Es::HorizontalLayout source_view_layout;
SourceImageView source_images[IMAGES_COUNT];
StitchedImageView stitched_image;
Es::VerticalLayout control_pane;
Es::OpenCVScaleComboBox combobox;
Es::LabeledComboBox stitcher_mode_combobox;
Es::PushButton stitch_button;
int stitcher_mode_index;
cv::Ptr<cv::Stitcher> stitcher;
cv::Stitcher::Mode mode;
bool tryToUseGPU;
static const int FILEPATH_HEIGHT = 30;
static const int CONTROLPANE_WIDTH = 200;
int scaling_ratio;
static const int loading_flag = IMREAD_COLOR;
Es::FileOpenDialog file_dialog;
public:
//////////////////////////////////////////////
//Constructor
//
MainView(Es::Application& applet,
std::string& title,
Es::Args& args)
:OpenCVMainView(applet, title,
//We don't use the defaultFilePulldown menu.
args.set(XmNuseDefaultFilePulldown, false) )
,scaling_ratio(100)
,source_view_layout(0) //SPACING
,file_dialog(*this, Es::FileOpenDialog::IMAGE_FILES)
{
tryToUseGPU = false;
//Define File pulldown menu with multiple [Open File] pulldown menu items.
Es::SigcMenuCallback file_menu_callbacks[] = {
{"New", sigc::mem_fun(*this, &MainView::file_new)},
{"Open File1", sigc::mem_fun(*this, &MainView::file_open1)},
{"Open File2", sigc::mem_fun(*this, &MainView::file_open2)},
{"Save", sigc::mem_fun(*this, &MainView::file_save)},
{"Save_As", sigc::mem_fun(*this, &MainView::file_save_as)},
{"Quit", sigc::mem_fun(*this, &MainView::file_quit)},
};
file_pulldown_append( file_menu_callbacks,
CountOf(file_menu_callbacks));
int w = (int)args.get(XmNwidth);
int h = (int)args.get(XmNheight);
int ww = (w - CONTROLPANE_WIDTH)/2;
int hh = h/2;
int ratio = (int)args.get(XmNscalingRatio);
scaling_ratio = OpenCVImageView::validateScale(ratio);
Es::MainLayout& main_layout = get_main_layout();
filepath.set_size_request(w, FILEPATH_HEIGHT);
filepath.set_alignment(Gtk::ALIGN_START);
main_layout.pack_start(filepath, FALSE,FALSE, 0);
main_layout.pack_start(horiz_layout, FALSE, FALSE, 0);
source_images[FIRST].set_size_request(ww, h/2);
source_images[SECOND].set_size_request(ww, h/2);
stitched_image.set_size_request(w, h/2);
control_pane.set_spacing(10);
control_pane.set_size_request(CONTROLPANE_WIDTH, h);
main_layout.pack_start(filepath, FALSE, FALSE, 0);
main_layout.pack_start(horiz_layout);
horiz_layout.pack_start(view_layout);
view_layout.pack_start(source_view_layout);
source_view_layout.pack_start(source_images[FIRST]);
source_view_layout.pack_start(source_images[SECOND]);
view_layout.pack_start(stitched_image);
horiz_layout.pack_start(control_pane);
control_pane.pack_start(combobox, Gtk::PACK_SHRINK );
control_pane.pack_start(stitcher_mode_combobox, Gtk::PACK_SHRINK);
control_pane.pack_start(stitch_button, Gtk::PACK_SHRINK);
stitch_button.set_label("Stitch");
combobox.set_selection(scaling_ratio);
combobox.set_changed_callback(sigc::mem_fun(*this, &MainView::scale_changed) );
stitch_button.set_clicked_callback(sigc::mem_fun(*this,
&MainView::stitch_button_clicked) );
const char* types[] = {
"Panorama",
"Scans",
};
stitcher_mode_combobox.set_label("Detector");
stitcher_mode_combobox.append_items(types, CountOf(types));
stitcher_mode_combobox.set_active_text(types[0]); //Panorama
stitcher_mode_combobox.set_changed_callback(sigc::mem_fun(*this,
&MainView::stitcher_mode_changed) );
stitcher_mode_index = 0;
//7 Create an instance of cv::Stitcher.
mode = cv::Stitcher::PANORAMA;
stitcher = cv::Stitcher::create(mode, tryToUseGPU);
filenames[FIRST] = "../../images/Lake2.png";
filenames[SECOND] = "../../images/Lake1.png";
source_images[FIRST].loadImage(filenames[FIRST], loading_flag, scaling_ratio);
source_images[SECOND].loadImage(filenames[SECOND], loading_flag, scaling_ratio);
update_filepath();
show_all();
}
void scale_changed()
{
scaling_ratio = combobox.get_selection();
printf("scale_changed %d\n", scaling_ratio);
source_images[FIRST].rescale(scaling_ratio);
source_images[SECOND].rescale(scaling_ratio);
stitched_image.rescale(scaling_ratio);
}
void update_filepath()
{
std::string space = " ";
filepath.set_label(filenames[FIRST] + space + filenames[SECOND]);
}
cv::Stitcher::Mode get_stitcher_mode(int index)
{
int n = 0;
Pair<int, cv::Stitcher::Mode> types[] = {
{n++, cv::Stitcher::PANORAMA },
{n++, cv::Stitcher::SCANS },
};
mode = cv::Stitcher::PANORAMA;
if (index >= 0 && index <n) {
mode = types[index].second;
}
return mode;
}
void stitcher_mode_changed()
{
int prev_index = stitcher_mode_index;
stitcher_mode_index = stitcher_mode_combobox.get_active_row_number();
printf("stitcher_mode_index %d \n", stitcher_mode_index);
if (stitcher_mode_index != prev_index) {
mode = get_stitcher_mode(stitcher_mode_index);
//Rebuild stitcher.
stitcher = cv::Stitcher::create(mode, tryToUseGPU);
stitch_images();
}
}
//When the stitch button is clicked.
void stitch_button_clicked()
{
//call stitch_images method
stitch_images();
}
/*
enum Status {
OK = 0,
ERR_NEED_MORE_IMGS = 1,
ERR_HOMOGRAPHY_EST_FAIL = 2,
ERR_CAMERA_PARAMS_ADJUST_FAIL = 3
*/
const char* getErrorMessage(cv::Stitcher::Status status)
{
static const Pair<const char*, cv::Stitcher::Status> errors[] = {
{"Need more images", cv::Stitcher::Status::ERR_NEED_MORE_IMGS},
{"Homography est fail", cv::Stitcher::Status::ERR_HOMOGRAPHY_EST_FAIL},
{"Camera params adjust fail", cv::Stitcher::Status::ERR_CAMERA_PARAMS_ADJUST_FAIL},
};
const char* err = "";
for (int i = 0; i <CountOf(errors); i++) {
if (status == errors[i].second) {
err = errors[i].first;
break;
}
}
return err;
}
void stitch_images()
{
try {
std::vector<cv::Mat> images;
images.push_back( source_images[FIRST ].getOriginalImage() );
images.push_back( source_images[SECOND ].getOriginalImage() );
cv::Mat panorama;
cv::Stitcher::Status status = stitcher->stitch(images, panorama);
if (status == cv::Stitcher::Status::OK) {
stitched_image.set_stitched_image(panorama, scaling_ratio);
} else {
const char* err = getErrorMessage(status);
throw IException("Failed to Stitcher::stitch method error=%s", err);
}
} catch (Es::Exception& ex) {
caught(ex);
}
}
void file_open1()
{
int rc = file_dialog.popup();
if (rc == Gtk::RESPONSE_OK) {
filenames[FIRST] = file_dialog.get_filename();
update_filepath();
source_images[FIRST].loadImage(filenames[FIRST], loading_flag, scaling_ratio);
}
}
void file_open2()
{
int rc = file_dialog.popup();
if (rc == Gtk::RESPONSE_OK) {
filenames[SECOND] = file_dialog.get_filename();
update_filepath();
source_images[SECOND].loadImage(filenames[SECOND], loading_flag, scaling_ratio);
}
}
};
}
int main(int argc, char** argv)
{
Es::Environment env;
try {
Es::Application applet(argc, argv);
std::string title(argv[0]);
Es::Args args;
args.set(XmNx, 20);
args.set(XmNy, 20);
args.set(XmNwidth, 900);
args.set(XmNheight,460);
args.set(XmNscalingRatio,60);
Es::MainView mainv(applet, title, args);
mainv.show();
applet.run(mainv);
} catch (Es::Exception& ex) {
caught(ex);
} catch (...) {
printf("Get exception \n");
}
return 0;
}
