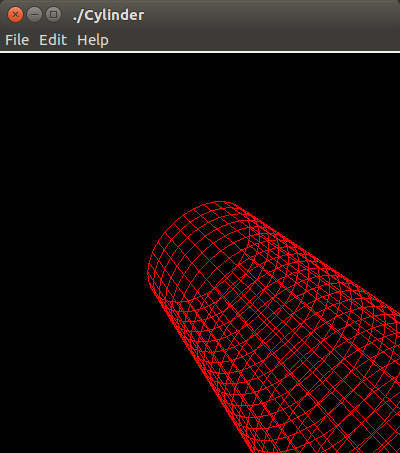

* Cylinder.cpp
*
*****************************************************************************/
//
#include <es++/opengl/OpenGLApplication.h>
#include <es++/opengl/OpenGLMainView.h>
#include <es++/opengl/OpenGLView.h>
#include <es++/opengl/OpenGLGC.h>
#include <es++/opengl/OpenGLCylinder.h>
using namespace Gtk;
namespace Es {
class MainView :public Es::OpenGLMainView {
private:
///////////////////////////////////////////////////////
//Inner classes start.
class SimpleView :public Es::OpenGLView {
private:
OpenGLGC gc;
OpenGLQuadric quadric;
OpenGLCylinder cylinder;
public:
SimpleView()
:OpenGLView()
,cylinder(&quadric)
{
}
virtual void display()
{
gc.clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
gc.loadIdentity();
gc.lookAt(2.0, 4.0, 6.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.5);
gc.polygonMode(GL_FRONT_AND_BACK, GL_LINE);
gc.color(1.0, 0.0, 0.0);
gc.rotate(60.0f, 0.0f, 1.0f, 0.0f);
cylinder.draw(0.4, 0.8, 3.0, 32, 32);
}
virtual void resize(int w, int h)
{
if (w == 0 || h == 0) {
return;
}
gc.matrixMode(GL_PROJECTION);
gc.loadIdentity();
gc.perspective(20.0, (double)w / (double)h, 0.5, 100.0);
gc.matrixMode(GL_MODELVIEW);
}
};
// Inner classes end.
///////////////////////////////////////////////////////
Es::HorizontalLayout horiz_layout;
SimpleView simple_view;
public:
//////////////////////////////////////////////
//Constructor
//
MainView(Es::OpenGLApplication& applet, std::string& name, Es::Args& args)
:OpenGLMainView(applet, name, args)
{
int w = (int)args.get(XmNwidth);
int h = (int)args.get(XmNheight);
Es::MainLayout& main_layout = get_main_layout();
main_layout.pack_start(horiz_layout);
horiz_layout.pack_start(simple_view);
OpenGLContext* context = applet.getOpenGLContext();
simple_view.set_opengl_context(context);
simple_view.set_size_request(400, 400);
show_all_children();
}
void render()
{
simple_view.render();
}
};
}
int main(int argc, char** argv)
{
Es::Environment env;
try {
std::string name = argv[0];
Es::OpenGLApplication applet(argc, argv);
Es::Args args;
args.set(XmNx, 20);
args.set(XmNy, 40);
args.set(XmNwidth, 400);
args.set(XmNheight, 400);
Es::MainView mainv(applet, name, args);
mainv.show();
applet.run(mainv);
} catch (Es::Exception& ex) {
caught(ex);
} catch (...) {
printf("Get exception \n");
}
return 0;
}
