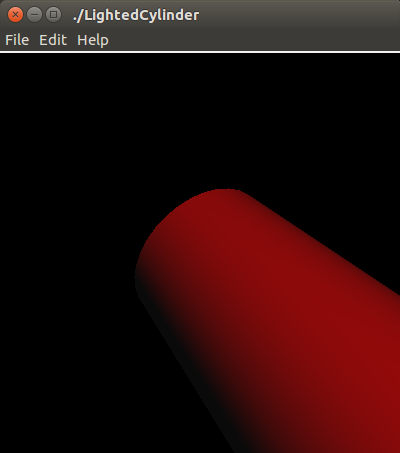

Es++ Sample: LightedCylinder


/******************************************************************************
 *
 * Copyright (c) 2017 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 * 1. Redistributions of source code must retain the above copyright
 *    notice, this list of conditions, and the following disclaimer.
 *
 * 2. The name of the author may not be used to endorse or promote products
 *    derived from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
 * IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 * OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
 * IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
 * PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
 * OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
 * WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
 * OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
 * ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 *
 *  LightedCylinder.cpp
 *
 *****************************************************************************/

//

#include <es++/opengl/OpenGLApplication.h>
#include <es++/opengl/OpenGLMainView.h>
#include <es++/opengl/OpenGLView.h>
#include <es++/opengl/OpenGLGC.h>
#include <es++/opengl/OpenGLLight.h>
#include <es++/opengl/OpenGLMaterial.h>
#include <es++/opengl/OpenGLCylinder.h>

using namespace Gtk;

namespace Es {

class MainView :public Es::OpenGLMainView {
private:
  ///////////////////////////////////////////////////////
  //Inner class starts.

  class SimpleView :public Es::OpenGLView {
  private:
    OpenGLGC gc;
    SmartPtr<OpenGLQuadric>  quadric;
    SmartPtr<OpenGLCylinder> cylinder;

  public:
    SimpleView()
    :OpenGLView()
    {
    }

    virtual void display()
    {
      if (cylinder) {
        gc.clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

       gc.loadIdentity();
       gc.lookAt(2.0, 4.0, 6.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.5);

       gc.clearColor(0.0, 0.0, 0.0, 1.0);
       gc.enable(GL_CULL_FACE);
       gc.enable(GL_LIGHTING);

       OpenGLLight light(GL_LIGHT0);
       GLfloat lightPosition[] = {10, 10, 10, 1.0};
       light.position(lightPosition);

       GLfloat white[] = {1.0f, 1.0f, 1.0f, 1.0f};
       GLfloat red[]  = {1.0f, 0.0f, 0.0f, 1.0f};
       GLfloat shininess[] = {100.0};

       OpenGLMaterial material(GL_FRONT);
       material.diffuse(red);
       material.specular(white);
       material.shininess(shininess);
       gc.rotate(60.0f, 0.0f, 1.0f, 0.0f);

       cylinder -> draw(0.4, 0.8, 3.0, 32, 32);
      }
    }

    virtual void resize(int w, int h)
    {
       if (w == 0 || h == 0) {
          return;
       }
       gc.matrixMode(GL_PROJECTION);
       gc.loadIdentity();
       gc.perspective(16.0, (double)w / (double)h, 0.5, 40.0);

       gc.matrixMode(GL_MODELVIEW);
    }


    virtual void initialize()
    {
       quadric = new OpenGLQuadric();
       quadric -> drawStyle(GLU_FILL);
       quadric -> normals(GLU_SMOOTH);
       cylinder = new OpenGLCylinder(quadric);
    }
  };

  // Inner class ends.
  ///////////////////////////////////////////////////////

  Es::HorizontalLayout   horiz_layout;

  SimpleView           simple_view;


public:
  //////////////////////////////////////////////
  //Constructor
  //
  MainView(Es::OpenGLApplication& applet, std::string& name, Es::Args& args)
  :OpenGLMainView(applet, name, args)
  {
    int w = (int)args.get(XmNwidth);
    int h = (int)args.get(XmNheight);

    Es::MainLayout& main_layout = get_main_layout();

    main_layout.pack_start(horiz_layout);

    horiz_layout.pack_start(simple_view);

    OpenGLContext* context = applet.getOpenGLContext();

    simple_view.set_opengl_context(context);

    simple_view.set_size_request(400, 400);

    show_all_children();
  }

  void render()
  {
    simple_view.render();
  }
};
}


int main(int argc, char** argv)
{
  Es::Environment env;

  try {
    std::string name = argv[0];

    Es::OpenGLApplication applet(argc, argv);

    Es::Args args;
    args.set(XmNx, 20);
    args.set(XmNy, 40);
    args.set(XmNwidth, 400);
    args.set(XmNheight, 400);
    Es::MainView mainv(applet, name, args);

    mainv.show();

    applet.run(mainv);

  } catch (Es::Exception& ex) {
    caught(ex);

  } catch (...) {
    printf("Get exception \n");
  }
  return 0;
}
