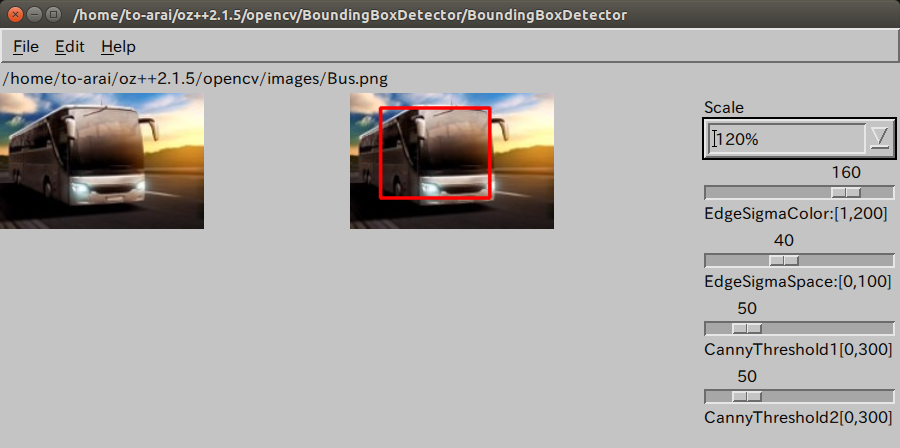

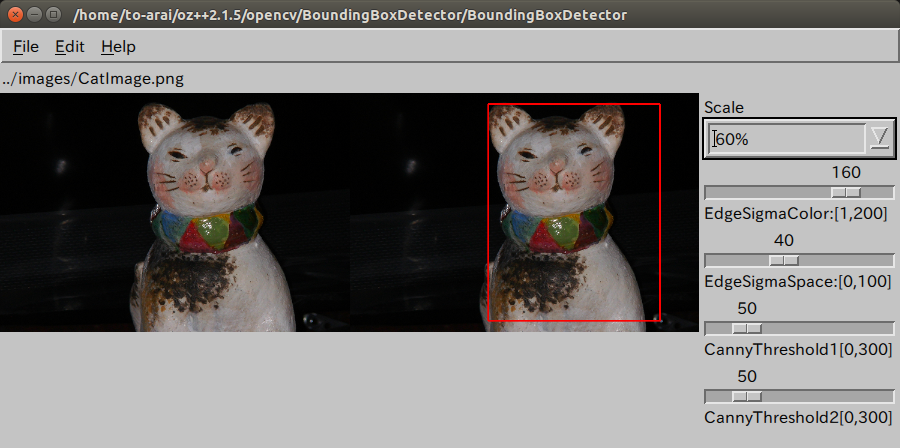

/****************************************************************************** * * Copyright (c) 2017 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED. * * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the above copyright * notice, this list of conditions, and the following disclaimer. * * 2. The name of the author may not be used to endorse or promote products * derived from this software without specific prior written permission. * * THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR * IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES * OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. * IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, * PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; * OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, * WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR * OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF * ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. * * * CannyEdgeDetector.cpp * *****************************************************************************/ //2017/05/15 //2019/01/03 #include <opencv2/stitching.hpp> #include <oz++/motif/Label.h> #include <oz++/motif/RowColumn.h> #include <oz++/motif/LabeledTrackBar.h> #include <oz++/opencv/OpenCVScaleComboBox.h> #include <oz++/opencv/OpenCVMainView.h> #include <oz++/opencv/OpenCVImageView.h> #include <oz++/motif/FileOpenDialog.h> namespace OZ { class MainView :public OpenCVMainView { private: /////////////////////////////////////////////// //Inner classes start. class OriginalImageView: public OpenCVImageView { private: cv::Mat originalImage; cv::Mat scaledImage; virtual void display() { show(scaledImage); } public: OriginalImageView(View* parent, const char* name, Args& args) :OpenCVImageView(parent, name, args) { try { const char* filename = (const char*)args.get(XmNimageFileName); int imageLoadingFlag = args.get(XmNimageLoadingFlag); int scalingRatio = (int)args.get(XmNimageScalingRatio); loadImage(filename, imageLoadingFlag, scalingRatio); } catch (OZ::Exception ex) { caught(ex); } } ~OriginalImageView() { } void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR, int scalingRatio=100) { originalImage = readImage(filename, imageLoadingFlag); scaleImage(originalImage, scaledImage, scalingRatio); } void rescale(int scalingRatio) { scaledImage.release(); scaleImage(originalImage, scaledImage, scalingRatio); } }; class DetectedImageView: public OpenCVImageView { private: cv::Mat originalImage; cv::Mat edgePreserved; cv::Mat grayImage; cv::Mat cannyEdgedImage; cv::Mat detectedImage; cv::Mat scaledImage; //The scale image is displayed on this image view. virtual void display() { show(scaledImage); } public: DetectedImageView(View* parent, const char* name, Args& args) :OpenCVImageView(parent, name, args) { try { const char* filename = (const char*)args.get(XmNimageFileName); int imageLoadingFlag = args.get(XmNimageLoadingFlag); int scalingRatio = (int)args.get(XmNimageScalingRatio); loadImage(filename, imageLoadingFlag, scalingRatio); } catch (OZ::Exception ex) { caught(ex); } } ~DetectedImageView() { } void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR, int scalingRatio=100) { originalImage = readImage(filename, imageLoadingFlag); detectedImage = originalImage.clone(); detectedImage.create( originalImage.size(), originalImage.type() ); cv::cvtColor( originalImage, grayImage, COLOR_BGR2GRAY ); scaleImage(grayImage, scaledImage, scalingRatio); } void rescale(int scalingRatio) { scaledImage.release(); scaleImage(detectedImage, scaledImage, scalingRatio); } void applyEdgePreservedFilter(double sigmaColor, double sigmaSpace, cv::Mat& image, cv::Mat& filtered ) { //const int SIGMA_SPACE = 160; //const int SIGMA_COLOR = 70; try { int flag = RECURS_FILTER ; //NORMCONV_FILTER is very slow; cv::edgePreservingFilter( image, filtered, flag, sigmaSpace, //(double)SIGMA_SPACE, sigmaColor/100.0f); //(double)SIGMA_COLOR/100.0f); } catch (cv::Exception& ex) { ; //Ignore } } void detect(int sigmaColor, int sigmaSpace, int threshold1, int threshold2, int scalingRatio) { threshold1 = (threshold1/2)*2 + 1; threshold2 = (threshold2/2)*2 + 1; Mat threshold_output; std::vector<vector<Point> > contours; std::vector<Vec4i> hierarchy; //1 Apply EdgePreservedFilter to originalImage. applyEdgePreservedFilter((double)sigmaColor, (double)sigmaSpace, originalImage, edgePreserved); //2 Convert it to grayImage. cv::cvtColor(edgePreserved, grayImage, COLOR_BGR2GRAY ); //3 Apply Canny edge detector to the grayImage. cv::Canny(grayImage, cannyEdgedImage, threshold1, threshold2); //4 Find contours from the detectedImage. cv::findContours(cannyEdgedImage, contours, hierarchy, CV_RETR_TREE, CV_CHAIN_APPROX_SIMPLE, Point(0, 0) ); std::vector<std::vector<cv::Point> > contours_poly( contours.size() ); std::vector<cv::Rect> boundRect( contours.size() ); //5 Get approximate polygonal coordinates from the contours, and // bounding rectangles from the contours_polygons. for( int i = 0; i < contours.size(); i++ ) { cv::approxPolyDP(cv::Mat(contours[i]), contours_poly[i], 3, true ); boundRect[i] = boundingRect( Mat(contours_poly[i]) ); } detectedImage.release(); detectedImage = originalImage.clone(); //6 Find minimum x and y, and maximum w and h from the boundRect array. int width = detectedImage.size().width; int height = detectedImage.size().height; int x = width, y = height, w = 0, h = 0; int sx = width, sy = height, ex = 0, ey = 0; // for( int i = 0; i< contours.size(); i++ ) { int xx = boundRect[i].x; int yy = boundRect[i].y; int ww = boundRect[i].width; int hh = boundRect[i].height; int area = ww * hh; int MIN_AREA = 10; int MIN_X = 10; int MIN_Y = 10; if (area > MIN_AREA) { if (xx < sx && xx > MIN_X) sx = xx; if (yy < sy && yy > MIN_Y) sy = yy; if (xx > ex) ex = xx; if (yy > ey) ey = yy; } } int endx = x + w; if (endx >= width) endx = width; int endy = y + h; if (endy >= height) endy = height; int eex = sx + ex; int eey = sy + ey; if (eex > width) eex = width - 4; if (eey > height) eey = height- 4; //7 Draw a rectangle having a start Point(sx, sy) and end Point(ex, ey) on the contourImage. cv::rectangle(detectedImage, Point(sx, sy), Point(ex, ey), CV_RGB(255, 0, 0), 2, 8, 0 ); scaleImage(detectedImage, scaledImage, scalingRatio); } }; //Inner classes end. private: StringT<char> imageFile; int imageLoadingFlag; int imageScalingRatio; //percentage SmartPtr<Label> label; SmartPtr<OriginalImageView> originalImage; SmartPtr<DetectedImageView> detectedImage; SmartPtr<RowColumn> controlPane; SmartPtr<OpenCVScaleComboBox> scaleComboBox; //Parameters for EdgePreservingFilter static const int SIGMA_COLOR_MAX =200; int sigmaColor; SmartPtr<LabeledTrackBar> sigmaColorTrackBar; static const int SIGMA_SPACE_MAX=100; int sigmaSpace; SmartPtr<LabeledTrackBar> sigmaSpaceTrackBar; //Parameters for CannyEdgeDetector static const int THRESHOLD1_MAX = 300; int threshold1; SmartPtr<LabeledTrackBar> threshold1TrackBar; static const int THRESHOLD2_MAX = 300; int threshold2; SmartPtr<LabeledTrackBar> threshold2TrackBar; SmartPtr<FileOpenDialog> fileDialog; public: void scaleChanged(Action& action) { int val = scaleComboBox->getScale(); if (val > 0 && imageScalingRatio != val) { imageScalingRatio = val; originalImage -> rescale(imageScalingRatio); detectedImage -> rescale(imageScalingRatio); } } //Common trackBarScrolled callback void trackBarScrolled(Action& action) { sigmaColor = sigmaColorTrackBar->getPosition(); sigmaSpace = sigmaSpaceTrackBar->getPosition(); threshold1 = threshold1TrackBar->getPosition(); threshold2 = threshold2TrackBar->getPosition(); detectedImage->detect(sigmaColor, sigmaSpace, threshold1, threshold2, imageScalingRatio); } void cancel(Action& action) { fileDialog->popdown(); } void fileOpen(Action& action) { fileDialog->popup(); } void updateLabel(const char* filename) { CompoundString cs(filename); label->set(XmNlabelString, cs); } void ok(Action& action) { try { imageFile = fileDialog->getFileName(); const char* filename = (const char*)imageFile; printf("filename: %s\n", filename); fileDialog->popdown(); originalImage->invalidate(); originalImage->loadImage(filename, imageLoadingFlag, imageScalingRatio); originalImage->invalidate(); detectedImage->loadImage(filename, imageLoadingFlag, imageScalingRatio); sigmaColor = sigmaColorTrackBar->getPosition(); sigmaSpace = sigmaSpaceTrackBar->getPosition(); threshold1 = threshold1TrackBar->getPosition(); threshold2 = threshold2TrackBar->getPosition(); detectedImage->detect(sigmaColor, sigmaSpace, threshold1, threshold2, imageScalingRatio); updateLabel(filename); resize(width(), height()); flush(); } catch (OZ::Exception& ex) { caught(ex); } } void resize(Dimension w, Dimension h) { int CP_WIDTH = 200; int LB_HEIGHT = 30; int ww = w-CP_WIDTH; int hh = h - LB_HEIGHT; if (label && originalImage && detectedImage && controlPane ) { label -> reshape(0, 0, w, LB_HEIGHT); originalImage-> reshape(0, LB_HEIGHT, ww/2, hh); detectedImage -> reshape(ww/2, LB_HEIGHT, ww/2-1, hh); controlPane -> reshape(ww-1, LB_HEIGHT, CP_WIDTH+1, hh); //The following two lines are a workaround to erase garbage. controlPane -> unmap(); controlPane -> map(); } flush(); } public: MainView(OpenCVApplication& applet, const char* name, Args& args) :OpenCVMainView(applet, name, args) { BulletinBoard* bboard = getBulletinBoard(); imageFile = "../images/CatImage.png"; imageLoadingFlag = CV_LOAD_IMAGE_COLOR; imageScalingRatio = 60; //% try { Args ar; CompoundString fileNamecs(imageFile); ar.set(XmNlabelString, fileNamecs); ar.set(XmNalignment, XmALIGNMENT_BEGINNING); label = new Label(bboard, "", ar); ar.reset(); ar.set(XmNimageFileName, imageFile); ar.set(XmNimageLoadingFlag, imageLoadingFlag); ar.set(XmNimageScalingRatio, imageScalingRatio); originalImage = new OriginalImageView(bboard, "", ar); ar.reset(); ar.set(XmNimageFileName, imageFile); ar.set(XmNimageLoadingFlag, imageLoadingFlag); ar.set(XmNimageScalingRatio, imageScalingRatio); detectedImage = new DetectedImageView(bboard, "", ar); ar.reset(); controlPane = new RowColumn(bboard, "", ar); const char* defaultScale = "60%"; ar.reset(); CompoundString scaler("Scale"); ar.set(XmNlabelString, scaler); ar.set(XmNdefaultScale, defaultScale); scaleComboBox = new OpenCVScaleComboBox(controlPane, "", ar); scaleComboBox->addCallback(XmNselectionCallback, this, (Callback)&MainView::scaleChanged, NULL); sigmaColor = 160; sigmaSpace = 40; ar.reset(); CompoundString sth1Title("EdgeSigmaColor:[1,200]"); ar.set(XmNminimum, 1); ar.set(XmNmaximum, SIGMA_COLOR_MAX); ar.set(XmNvalue, sigmaColor); ar.set(XmNtitleString, sth1Title); sigmaColorTrackBar = new LabeledTrackBar(controlPane, "", ar); sigmaColorTrackBar->addCallback(XmNvalueChangedCallback, this, (Callback)&MainView::trackBarScrolled, NULL); ar.reset(); CompoundString sth2Title("EdgeSigmaSpace:[0,100]"); ar.set(XmNminimum, 0); ar.set(XmNmaximum, SIGMA_SPACE_MAX); ar.set(XmNvalue, sigmaSpace); ar.set(XmNtitleString, sth2Title); sigmaSpaceTrackBar = new LabeledTrackBar(controlPane, "", ar); sigmaSpaceTrackBar->addCallback(XmNvalueChangedCallback, this, (Callback)&MainView::trackBarScrolled, NULL); threshold1 = 50; threshold2 = 100; ar.reset(); CompoundString th1Title("CannyThreshold1[0,300]"); ar.set(XmNminimum, 0); ar.set(XmNmaximum, THRESHOLD1_MAX); ar.set(XmNvalue, threshold1); ar.set(XmNtitleString, th1Title); threshold1TrackBar = new LabeledTrackBar(controlPane, "", ar); threshold1TrackBar->addCallback(XmNvalueChangedCallback, this, (Callback)&MainView::trackBarScrolled, NULL); ar.reset(); CompoundString th2Title("CannyThreshold2[0,300]"); ar.set(XmNminimum, 0); ar.set(XmNmaximum, THRESHOLD1_MAX); ar.set(XmNvalue, threshold1); ar.set(XmNtitleString, th2Title); threshold2TrackBar = new LabeledTrackBar(controlPane, "", ar); threshold2TrackBar->addCallback(XmNvalueChangedCallback, this, (Callback)&MainView::trackBarScrolled, NULL); detectedImage->detect(sigmaColor, sigmaSpace, threshold1, threshold2, imageScalingRatio); ar.reset(); fileDialog = new FileOpenDialog(this, "FileOpenDialog", ar); fileDialog -> getOkButton() -> addCallback(XmNactivateCallback, this, (Callback)&MainView::ok, NULL); sendConfigureEvent(); } catch(OZ::Exception& ex) { caught(ex); } } ~MainView() { } }; } // int main(int argc, char** argv) { try { const char* appclass = argv[0]; OpenCVApplication applet(appclass, argc, argv); Args args; args.set(XmNwidth, 900); args.set(XmNheight, 420); MainView view(applet, argv[0], args); view.realize(); applet.run(); } catch (OZ::Exception& ex) { caught(ex); } return 0; }
