OZ++ Sample: FeatureMatcher |
/******************************************************************************
*
* Copyright (c) 2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions, and the following disclaimer.
*
* 2. The name of the author may not be used to endorse or promote products
* derived from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
* IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
* OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
* IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
* ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*
*
* FeatureMatcher.cpp
*
*****************************************************************************/

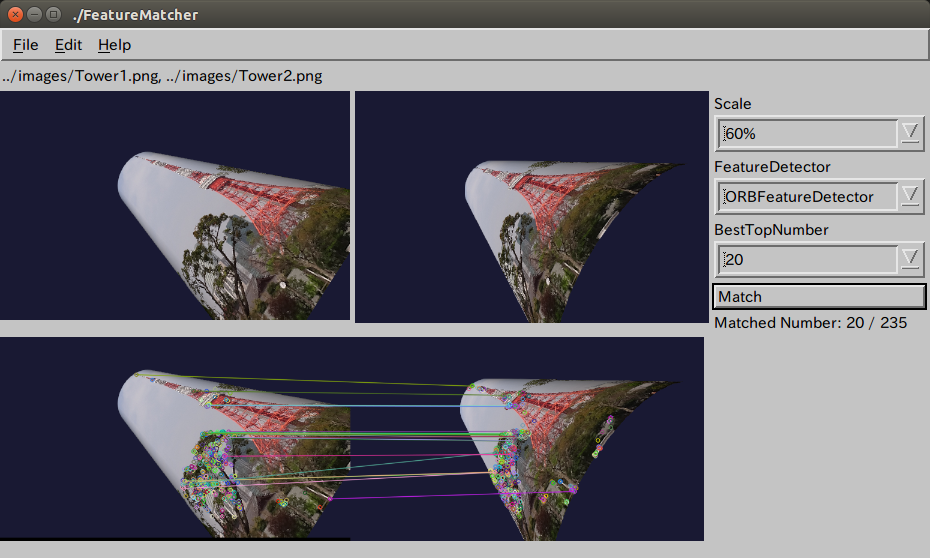

// This is an elementary feature matching sample program, based on OpenCV2.4.8
//
//2017/05/30
//2019/01/03
#include <opencv2/stitching.hpp>
#include <oz++/Pair.h>
#include <oz++/motif/Label.h>
#include <oz++/motif/RowColumn.h>
#include <oz++/motif/LabeledTrackBar.h>
#include <oz++/opencv/OpenCVScaleComboBox.h>
#include <oz++/opencv/OpenCVMainView.h>
#include <oz++/opencv/OpenCVImageView.h>
#include <oz++/motif/FileOpenDialog.h>
#include "PrivateFileMenu.h"
namespace OZ {
class MainView :public OpenCVMainView {
private:
///////////////////////////////////////////////
//Inner classes start.
class SourceImageView: public OpenCVImageView {
private:
cv::Mat originalImage;
cv::Mat scaledImage;
virtual void display()
{
show(scaledImage);
}
public:
SourceImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
try {
const char* filename = (const char*)args.get(XmNimageFileName);
int imageLoadingFlag = args.get(XmNimageLoadingFlag);
int scalingRatio = (int)args.get(XmNimageScalingRatio);
loadImage(filename, imageLoadingFlag, scalingRatio);
} catch (OZ::Exception ex) {
caught(ex);
}
}
~SourceImageView()
{
}
cv::Mat& getMat()
{
return originalImage;
}
void loadImage(const char* filename,
int imageLoadingFlag= CV_LOAD_IMAGE_COLOR,
int scalingRatio=100)
{
originalImage = readImage(filename, imageLoadingFlag);
scaleImage(originalImage, scaledImage, scalingRatio);
}
void rescale(int scalingRatio)
{
scaledImage.release();
scaleImage(originalImage, scaledImage, scalingRatio);
}
};
class MatchedImageView: public OpenCVImageView {
private:
cv::Mat matchedImage;
cv::Mat scaledImage;
//The scale image is displayed on this image view.
virtual void display()
{
show(scaledImage);
}
public:
MatchedImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
refresh();
}
~MatchedImageView()
{
}
void rescale(int scalingRatio)
{
scaledImage.release();
scaleImage(matchedImage, scaledImage, scalingRatio);
}
void setMatched(cv::Mat& mat, int scalingRatio)
{
matchedImage.release();
matchedImage = mat;
scaleImage(matchedImage, scaledImage, scalingRatio);
}
};
//Inner classes end.
private:
typedef enum {
/* AKAZEFeatureDetector */ DETECTOR_AKAZE=0,
/* BRISKFeatureDetector */ DETECTOR_BRISK,
/* ORBFeatureDetector */ DETECTOR_ORB,
} DETECTOR;
static const int IMAGES_COUNT = 2;
static const int FIRST = 0;
static const int SECOND = 1;
StringT<char> imageFiles[IMAGES_COUNT];
int fileOpenIndex;
SmartPtr<SourceImageView> sourceImage[IMAGES_COUNT];
int imageLoadingFlag;
int imageScalingRatio; //percentage
SmartPtr<Label> label;
SmartPtr<MatchedImageView> matchedImage;
SmartPtr<RowColumn> controlPane;
SmartPtr<OpenCVScaleComboBox> scaleComboBox;
int detectorIndex;
SmartPtr<LabeledComboBox> detectorComboBox;
SmartPtr<Label> matchedNumber;
int bestTopNumberIndex;
SmartPtr<LabeledComboBox> bestTopNumberComboBox;
SmartPtr<PushButton> matchButton;
SmartPtr<FileOpenDialog> fileDialog;
//Callback for the matchButton
void match(Action& action)
{
matchFeature();
}
void setMatchedNumber(int bestMatched, int totalMatchedNumber)
{
char number[128];
sprintf(number, //CountOf(number),
"Matched Number: %d / %d", bestMatched, totalMatchedNumber);
matchedNumber->setText(number);
}
//Matching operation.
void matchFeature()
{
try {
cv::Ptr<cv::Feature2D> feature = cv::ORB::create();
switch (detectorIndex) {
case DETECTOR_AKAZE:
feature = cv::AKAZE::create();
break;
case DETECTOR_BRISK:
feature = cv::BRISK::create();
break;
case DETECTOR_ORB:
feature = cv::ORB::create(); //use default argments
break;
default:
break;
}
std::vector<cv::KeyPoint> keypoints[IMAGES_COUNT];
cv::Mat descriptors[IMAGES_COUNT];
cv::Mat mats[IMAGES_COUNT];
//Detect features and compute descriptors.
for (int i = 0; i<IMAGES_COUNT; i++) {
mats[i] = sourceImage[i] -> getMat();
feature -> detect(mats[i], keypoints[i]);
feature -> compute(mats[i], keypoints[i], descriptors[i]);
}
//Brute force matcher
cv::BFMatcher matcher(NORM_HAMMING, true);
std::vector<cv::DMatch> matches;
matcher.match(descriptors[FIRST], descriptors[SECOND], matches);
int totalMatchedNumber = matches.size();
int bestTop = (bestTopNumberIndex + 1) * 10;
if (bestTop <= totalMatchedNumber) {
std::nth_element(matches.begin(), matches.begin() + bestTop - 1, matches.end());
matches.erase(matches.begin() + bestTop, matches.end());
}
int bestMatchedNumber = matches.size();
Mat matchedImg;
drawMatches(mats[FIRST], keypoints[FIRST],
mats[SECOND], keypoints[SECOND], matches, matchedImg);
matchedImage ->setMatched(matchedImg, imageScalingRatio);
setMatchedNumber(bestMatchedNumber, totalMatchedNumber);
} catch (cv::Exception& ex) {
//MessageBox(NULL, "Caught an excption", "Exception", MB_OK);
}
}
//Callback for the detectorComboBox
void detectorChanged(Action& action)
{
detectorIndex = (DETECTOR)detectorComboBox->getSelectedPosition();
printf("detectorChanged: %d\n", detectorIndex);
matchFeature();
}
public:
//Callback for the bestTopNumberComboBox
void bestTopNumberChanged(Action& action)
{
bestTopNumberIndex = bestTopNumberComboBox->getSelectedPosition();
printf("bestTopNumberChanged %d\n", bestTopNumberIndex);
matchFeature();
}
void scaleChanged(Action& action)
{
int val = scaleComboBox->getScale();
if (val > 0 && imageScalingRatio != val) {
imageScalingRatio = val;
sourceImage[FIRST] -> rescale(imageScalingRatio);
sourceImage[SECOND] -> rescale(imageScalingRatio);
matchedImage -> rescale(imageScalingRatio);
}
}
void fileOpen(int index, Action& action)
{
fileOpenIndex = index;
fileDialog->popup();
}
void updateLabel()
{
char path[PATH_MAX];
sprintf(path, "%s, %s",
(const char*)imageFiles[0], (const char*)imageFiles[1]);
label -> setText(path);
}
//OK button callback for FileOpenDialog
void ok(Action& action)
{
try {
imageFiles[fileOpenIndex] = fileDialog->getFileName();
const char* filename = (const char*)imageFiles[fileOpenIndex];
printf("filename: %s\n", filename);
fileDialog->popdown();
sourceImage[fileOpenIndex]->invalidate();
sourceImage[fileOpenIndex]->loadImage(filename,
imageLoadingFlag, imageScalingRatio);
updateLabel();
resize(width(), height());
flush();
} catch (OZ::Exception& ex) {
caught(ex);
}
}
void resize(Dimension w, Dimension h)
{
int CP_WIDTH = 220;
int LB_HEIGHT = 30;
int ww = w-CP_WIDTH;
int hh = h - LB_HEIGHT;
if (label && sourceImage[0] && matchedImage && controlPane
) {
label -> reshape(0, 0, w, LB_HEIGHT);
sourceImage[0]-> reshape(0, LB_HEIGHT, ww/2, hh/2-4 );
sourceImage[1] -> reshape(ww/2, LB_HEIGHT, ww/2-1, hh/2-4);
matchedImage -> reshape(0, hh/2-2, ww, hh/2);
controlPane -> reshape(ww-1, LB_HEIGHT, CP_WIDTH+1, hh);
controlPane -> unmap();
controlPane -> map();
}
flush();
}
//Callback to handle file pulldown events.
virtual void privateFileMenu(Action& action)
{
menuId = action.getClientIntData();
switch(menuId) {
case NEW:
fileNew(action);
break;
case OPEN_FILE1:
fileOpen(FIRST, action);
break;
case OPEN_FILE2:
fileOpen(SECOND, action);
break;
case SAVE:
fileSave(action);
break;
case SAVE_AS:
fileSaveAs(action);
break;
case EXIT:
confirm(action);
break;
}
}
virtual void addFilePulldownMenu()
{
//1 Recreate pulldown menu for File.
MenuBar* menubar = getMenuBar();
getFileMenuButton() -> recreatePulldownMenu(menubar, "file");
//2 Add PrivateFileItems to the FilePulldown.
getFileMenuButton() -> addItems(PrivateFileItems, XtNumber(PrivateFileItems),
this, (Callback)&MainView::privateFileMenu);
}
public:
MainView(OpenCVApplication& applet, const char* name, Args& args)
:OpenCVMainView(applet, name, args)
{
addFilePulldownMenu();
BulletinBoard* bboard = getBulletinBoard();
imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
imageScalingRatio = 60; //%
try {
imageFiles[FIRST] = "../images/Tower1.png";
imageFiles[SECOND] = "../images/Tower2.png";
//1 Create a label to display image file names.
Args ar;
ar.set(XmNalignment, XmALIGNMENT_BEGINNING);
label = new Label(bboard, "", ar);
updateLabel();
int imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
//2 Create two sourceImageViews.
for (int i = 0; i< IMAGES_COUNT; i++) {
ar.reset();
const StringT<char> fullpath = getFullpath(imageFiles[i]);
ar.set(XmNimageFileName, fullpath);
ar.set(XmNimageLoadingFlag, imageLoadingFlag);
sourceImage[i] = new SourceImageView(bboard, "", ar);
sourceImage[i]->rescale(imageScalingRatio);
}
//3 Create a feature matched imageView
ar.reset();
matchedImage = new MatchedImageView(bboard, "", ar);
//4 Create a rowColumn controlPane to manage controls.
ar.reset();
controlPane = new RowColumn(bboard, "", ar);
//5 Create a scaleComboBox in the controlPane
const char* defaultScale = "60%";
ar.reset();
CompoundString scaler("Scale");
ar.set(XmNlabelString, scaler);
ar.set(XmNdefaultScale, defaultScale);
scaleComboBox = new OpenCVScaleComboBox(controlPane, "", ar);
scaleComboBox->addCallback(XmNselectionCallback, this,
(Callback)&MainView::scaleChanged, NULL);
//6 Create a detectorComboBox.
ar.reset();
const char* items[] = {
"AKAZEFeatureDetector",
"BRISKFeatureDetector",
"ORBFeatureDetector"};
detectorIndex = DETECTOR_ORB;
CompoundStringList csl(items, CountOf(items));
ar.set(XmNitems, csl);
ar.set(XmNitemCount, CountOf(items));
ar.set(XmNselectedPosition, detectorIndex);
detectorComboBox = new LabeledComboBox(controlPane, "FeatureDetector", ar);
detectorComboBox -> addCallback(XmNselectionCallback, this,
(Callback)&MainView::detectorChanged, NULL);
//7 Create a bestTopNumbercombobox
const char* numbers[] = {
"10", "20", "30", "40", "50", "60", "70", "80", "90", "100",
};
CompoundStringList numbersCsl(numbers, CountOf(numbers));
bestTopNumberIndex = 1;
ar.reset();
ar.set(XmNitems, numbersCsl);
ar.set(XmNitemCount, CountOf(numbers));
ar.set(XmNselectedPosition, bestTopNumberIndex);
bestTopNumberComboBox = new LabeledComboBox(controlPane, "BestTopNumber", ar);
bestTopNumberComboBox -> addCallback(XmNselectionCallback, this,
(Callback)&MainView::bestTopNumberChanged, NULL);
//8 Create a match push button.
ar.reset();
matchButton = new PushButton(controlPane, "Match", ar);
matchButton -> addCallback(XmNactivateCallback, this,
(Callback)&MainView::match, NULL);
//9 Create a label to display the number of matched features.
ar.reset();
matchedNumber = new Label(controlPane, "", ar);
//10 Call matchFeature method to detect features in sourceimages
// and to compute the matched descriptors from the detected features.
matchFeature();
ar.reset();
fileDialog = new FileOpenDialog(this, "FileOpenDialog", ar);
fileDialog -> getOkButton()
-> addCallback(XmNactivateCallback, this,
(Callback)&MainView::ok, NULL);
sendConfigureEvent();
} catch(OZ::Exception& ex) {
caught(ex);
}
}
~MainView()
{
}
};
}
//
int main(int argc, char** argv)
{
try {
const char* appclass = argv[0];
OpenCVApplication applet(appclass, argc, argv);
Args args;
args.set(XmNwidth, 900);
args.set(XmNheight, 500);
MainView view(applet, argv[0], args);
view.realize();
applet.run();
} catch (OZ::Exception& ex) {
caught(ex);
}
return 0;
}
