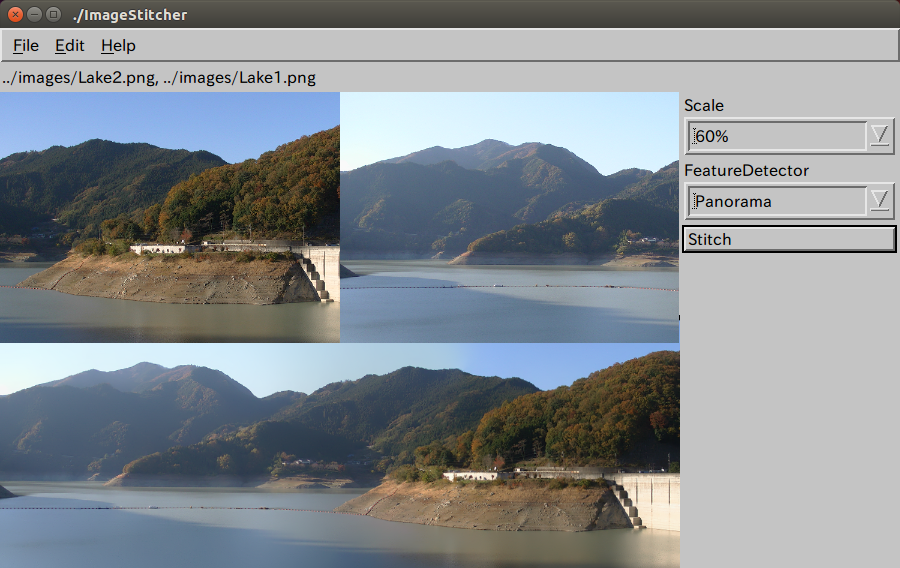

OZ++ Sample: ImageStitcher |
/******************************************************************************
*
* Copyright (c) 2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions, and the following disclaimer.
*
* 2. The name of the author may not be used to endorse or promote products
* derived from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
* IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
* OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
* IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
* ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*
*
* ImageStitcher.cpp
*
*****************************************************************************/
// 2019/01/01 Modified create method not to use the second parameter
//2017/10/10 We redefine Status in X11 as XtStatus to avoid type collision
// in cv::Stitcher::Status.
//#define Status XtStatus
#include <opencv2/stitching.hpp>
#include <oz++/Pair.h>
#include <oz++/SmartPtr.h>
#include <oz++/motif/Label.h>
#include <oz++/motif/RowColumn.h>
#include <oz++/motif/LabeledTrackBar.h>
#include <oz++/opencv/OpenCVScaleComboBox.h>
#include <oz++/opencv/OpenCVMainView.h>
#include <oz++/opencv/OpenCVImageView.h>
#include <oz++/motif/FileOpenDialog.h>
#include <opencv2/features2d/features2d.hpp>
#undef Status
#include <opencv2/stitching.hpp>
#include "PrivateFileMenu.h"
namespace OZ {
class MainView :public OpenCVMainView {
private:
///////////////////////////////////////////////
//Inner classes start.
class SourceImageView: public OpenCVImageView {
private:
cv::Mat originalImage;
cv::Mat scaledImage;
virtual void display()
{
show(scaledImage);
}
public:
SourceImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
try {
const char* filename = (const char*)args.get(XmNimageFileName);
int imageLoadingFlag = args.get(XmNimageLoadingFlag);
int scalingRatio = (int)args.get(XmNimageScalingRatio);
loadImage(filename, imageLoadingFlag, scalingRatio);
} catch (OZ::Exception ex) {
caught(ex);
}
}
~SourceImageView()
{
}
cv::Mat& getMat()
{
return originalImage;
}
cv::Mat getClone()
{
return originalImage.clone();
}
void loadImage(const char* filename,
int imageLoadingFlag= CV_LOAD_IMAGE_COLOR,
int scalingRatio=100)
{
originalImage = readImage(filename, imageLoadingFlag);
scaleImage(originalImage, scaledImage, scalingRatio);
}
void rescale(int scalingRatio)
{
scaledImage.release();
scaleImage(originalImage, scaledImage, scalingRatio);
}
};
class StitchedImageView: public OpenCVImageView {
private:
cv::Mat stitchedImage;
cv::Mat scaledImage;
//The scale image is displayed on this image view.
virtual void display()
{
show(scaledImage);
}
public:
StitchedImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
refresh();
}
~StitchedImageView()
{
}
void rescale(int scalingRatio)
{
scaledImage.release();
scaleImage(stitchedImage, scaledImage, scalingRatio);
}
void setStitchedImage(cv::Mat stitched, int scalingRatio)
{
stitchedImage = stitched;
scaleImage(stitchedImage, scaledImage, scalingRatio);
}
};
//Inner classes end.
private:
static const int IMAGES_COUNT = 2;
static const int FIRST = 0;
static const int SECOND = 1;
StringT<char> imageFiles[IMAGES_COUNT];
int fileOpenIndex;
SmartPtr<SourceImageView> sourceImage[IMAGES_COUNT];
int imageLoadingFlag;
int imageScalingRatio; //percentage
SmartPtr<Label> label;
SmartPtr<StitchedImageView> stitchedImage;
SmartPtr<RowColumn> controlPane;
SmartPtr<OpenCVScaleComboBox> scaleComboBox;
int stitcherModeIndex;
cv::Ptr<cv::Stitcher> stitcher;
cv::Stitcher::Mode mode;
SmartPtr<LabeledComboBox> stitcherModeComboBox;
SmartPtr<PushButton> stitchButton;
SmartPtr<FileOpenDialog> fileDialog;
cv::Stitcher::Mode getStitcherMode(int index)
{
int n = 0;
Pair<int, cv::Stitcher::Mode> types[] = {
{n++, cv::Stitcher::PANORAMA },
{n++, cv::Stitcher::SCANS }
};
mode = cv::Stitcher::PANORAMA;
if (index >= 0 && index <n) {
mode = types[index].second;
}
return mode;
}
const char* getErrorMessage(cv::Stitcher::Status status)
{
static const Pair<const char*, cv::Stitcher::Status> errors[] = {
{"Need more images",
cv::Stitcher::ERR_NEED_MORE_IMGS},
{"Homography est fail",
cv::Stitcher::ERR_HOMOGRAPHY_EST_FAIL},
{"Camera params adjust fail",
cv::Stitcher::ERR_CAMERA_PARAMS_ADJUST_FAIL}
};
const char* err = "";
for (int i = 0; i <CountOf(errors); i++) {
if (status == errors[i].second) {
err = errors[i].first;
break;
}
}
return err;
}
void stitch(Action& action)
{
stitchImages();
}
void stitchImages()
{
std::vector<cv::Mat> images;
images.push_back( sourceImage[FIRST ]->getClone() );
images.push_back( sourceImage[SECOND ]->getClone() );
cv::Mat panorama;
cv::Stitcher::Status status = stitcher->stitch(images, panorama);
if (status == cv::Stitcher::OK) {
stitchedImage->setStitchedImage(panorama, imageScalingRatio);
} else {
char message[1024];
const char* err = getErrorMessage(status);
sprintf(message, "Failed to Stitcher::stitch method error:%s", err);
throw IException("Failed to stitch images:%s", message);
}
}
//Callback for the stitcherModeComboBox
void stitcherModeChanged(Action& action)
{
int index = stitcherModeComboBox -> getSelectedPosition();
if (stitcherModeIndex != index) {
stitcherModeIndex = index;
mode = getStitcherMode(index);
//Rebuild stitcher.
stitcher = cv::Stitcher::create(mode);
stitchImages();
}
}
public:
void scaleChanged(Action& action)
{
int val = scaleComboBox->getScale();
if (val > 0 && imageScalingRatio != val) {
imageScalingRatio = val;
sourceImage[FIRST] -> rescale(imageScalingRatio);
sourceImage[SECOND] -> rescale(imageScalingRatio);
stitchedImage -> rescale(imageScalingRatio);
}
}
void fileOpen(int index, Action& action)
{
fileOpenIndex = index;
fileDialog->popup();
}
void updateLabel()
{
char path[PATH_MAX];
sprintf(path, "%s, %s",
(const char*)imageFiles[0], (const char*)imageFiles[1]);
label -> setText(path);
}
//OK button callback for FileOpenDialog
void ok(Action& action)
{
try {
imageFiles[fileOpenIndex] = fileDialog->getFileName();
const char* filename = (const char*)imageFiles[fileOpenIndex];
printf("filename: %s\n", filename);
fileDialog->popdown();
sourceImage[fileOpenIndex]->invalidate();
sourceImage[fileOpenIndex]->loadImage(filename,
imageLoadingFlag, imageScalingRatio);
updateLabel();
resize(width(), height());
flush();
} catch (OZ::Exception& ex) {
caught(ex);
}
}
void resize(Dimension w, Dimension h)
{
int CP_WIDTH = 220;
int LB_HEIGHT = 30;
int ww = w-CP_WIDTH;
int hh = h - LB_HEIGHT;
if (label && sourceImage[0] && stitchedImage && controlPane
) {
label -> reshape(0, 0, w, LB_HEIGHT);
sourceImage[0]-> reshape(0, LB_HEIGHT, ww/2, hh/2-4 );
sourceImage[1] -> reshape(ww/2, LB_HEIGHT, ww/2-1, hh/2-4);
stitchedImage -> reshape(0, hh/2-2, ww, hh/2);
controlPane -> reshape(ww-1, LB_HEIGHT, CP_WIDTH+1, hh);
controlPane -> unmap();
controlPane -> map();
}
flush();
}
//Callback to handle file pulldown events.
virtual void privateFileMenu(Action& action)
{
menuId = action.getClientIntData();
switch(menuId) {
case NEW:
fileNew(action);
break;
case OPEN_FILE1:
fileOpen(FIRST, action);
break;
case OPEN_FILE2:
fileOpen(SECOND, action);
break;
case SAVE:
fileSave(action);
break;
case SAVE_AS:
fileSaveAs(action);
break;
case EXIT:
confirm(action);
break;
}
}
virtual void addFilePulldownMenu()
{
//1 Recreate pulldown menu for File.
MenuBar* menubar = getMenuBar();
getFileMenuButton() -> recreatePulldownMenu(menubar, "file");
//2 Add PrivateFileItems to the FilePulldown.
getFileMenuButton() -> addItems(PrivateFileItems, XtNumber(PrivateFileItems),
this, (Callback)&MainView::privateFileMenu);
}
public:
MainView(OpenCVApplication& applet, const char* name, Args& args)
:OpenCVMainView(applet, name, args)
{
addFilePulldownMenu();
BulletinBoard* bboard = getBulletinBoard();
imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
imageScalingRatio = 60; //%
try {
imageFiles[FIRST] = "../images/Lake2.png";
imageFiles[SECOND] = "../images/Lake1.png";
//1 Create a label to display image file names.
Args ar;
ar.set(XmNalignment, XmALIGNMENT_BEGINNING);
label = new Label(bboard, "", ar);
updateLabel();
int imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
//2 Create two sourceImages.
for (int i = 0; i< IMAGES_COUNT; i++) {
ar.reset();
ar.set(XmNimageFileName, imageFiles[i]);
ar.set(XmNimageLoadingFlag, imageLoadingFlag);
sourceImage[i] = new SourceImageView(bboard, "", ar);
sourceImage[i]->rescale(imageScalingRatio);
}
//3 Create a feature stitched imageView
ar.reset();
stitchedImage = new StitchedImageView(bboard, "", ar);
//4 Create a rowColumn controlPane to manage controls.
ar.reset();
controlPane = new RowColumn(bboard, "", ar);
//5 Create a scaleComboBox in the controlPane
const char* defaultScale = "60%";
ar.reset();
CompoundString scaler("Scale");
ar.set(XmNlabelString, scaler);
ar.set(XmNdefaultScale, defaultScale);
scaleComboBox = new OpenCVScaleComboBox(controlPane, "", ar);
scaleComboBox->addCallback(XmNselectionCallback, this,
(Callback)&MainView::scaleChanged, NULL);
//6 Create a stitcherModeComboBox.
ar.reset();
const char* items[] = {
"Panorama",
"Scans",};
stitcherModeIndex = 0;
mode = cv::Stitcher::PANORAMA;
CompoundStringList csl(items, CountOf(items));
ar.set(XmNitems, csl);
ar.set(XmNitemCount, CountOf(items));
ar.set(XmNselectedPosition, stitcherModeIndex);
stitcherModeComboBox = new LabeledComboBox(controlPane, "FeatureDetector", ar);
stitcherModeComboBox -> addCallback(XmNselectionCallback, this,
(Callback)&MainView::stitcherModeChanged, NULL);
//7 Create an instance of cv::Stitcher.
stitcher = cv::Stitcher::create(mode);
//8 Create a stitch push button.
ar.reset();
stitchButton = new PushButton(controlPane, "Stitch", ar);
stitchButton -> addCallback(XmNactivateCallback, this,
(Callback)&MainView::stitch, NULL);
ar.reset();
fileDialog = new FileOpenDialog(this, "FileOpenDialog", ar);
fileDialog -> getOkButton()
-> addCallback(XmNactivateCallback, this,
(Callback)&MainView::ok, NULL);
sendConfigureEvent();
} catch(OZ::Exception& ex) {
caught(ex);
}
}
~MainView()
{
}
};
}
//
int main(int argc, char** argv)
{
try {
const char* appclass = argv[0];
OpenCVApplication applet(appclass, argc, argv);
Args args;
args.set(XmNwidth, 900);
args.set(XmNheight, 540);
MainView view(applet, argv[0], args);
view.realize();
applet.run();
} catch (OZ::Exception& ex) {
caught(ex);
}
return 0;
}
