OZ++ Sample: TemplateMatcher |
/******************************************************************************
*
* Copyright (c) 2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions, and the following disclaimer.
*
* 2. The name of the author may not be used to endorse or promote products
* derived from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
* IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
* OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
* IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
* ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*
*
* TemplateMatcher.cpp
*
*****************************************************************************/
// This is an elementary template matching sample program,
// based on OpenCV3.3
// See http://docs.opencv.org/3.2.0/de/da9/tutorial_template_matching.html
//
//2017/05/30
//2019/01/03
#include <opencv2/stitching.hpp>
#include <oz++/Pair.h>
#include <oz++/motif/Label.h>
#include <oz++/motif/RowColumn.h>
#include <oz++/motif/LabeledTrackBar.h>
#include <oz++/opencv/OpenCVScaleComboBox.h>
#include <oz++/opencv/OpenCVMainView.h>
#include <oz++/opencv/OpenCVImageView.h>
#include <oz++/motif/FileOpenDialog.h>
#include <opencv2/features2d/features2d.hpp>
#include "PrivateFileMenu.h"
namespace OZ {
class MainView :public OpenCVMainView {
private:
///////////////////////////////////////////////
//Inner classes start.
class SourceImageView: public OpenCVImageView {
private:
cv::Mat originalImage;
cv::Mat matchedImage;
cv::Mat scaledImage;
virtual void display()
{
show(scaledImage);
}
public:
SourceImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
try {
const char* filename = (const char*)args.get(XmNimageFileName);
int imageLoadingFlag = args.get(XmNimageLoadingFlag);
int scalingRatio = (int)args.get(XmNimageScalingRatio);
loadImage(filename, imageLoadingFlag, scalingRatio);
} catch (OZ::Exception ex) {
caught(ex);
}
}
~SourceImageView()
{
}
cv::Mat& getMat()
{
return originalImage;
}
void setMatchedImage(cv::Mat& image, int scalingRatio)
{
matchedImage = image;
scaleImage(matchedImage, scaledImage, scalingRatio);
}
void loadImage(const char* filename,
int imageLoadingFlag= CV_LOAD_IMAGE_COLOR,
int scalingRatio=100)
{
originalImage = readImage(filename, imageLoadingFlag);
matchedImage = originalImage.clone();
scaleImage(matchedImage, scaledImage, scalingRatio);
invalidate();
refresh();
}
void clear(int scalingRatio)
{
matchedImage = originalImage.clone();
scaleImage(matchedImage, scaledImage, scalingRatio);
}
void rescale(int scalingRatio)
{
scaleImage(matchedImage, scaledImage, scalingRatio);
}
};
//Template image class starts.
class TemplateImageView: public OpenCVImageView {
private:
cv::Mat originalImage;
cv::Mat scaledImage;
virtual void display()
{
show(scaledImage);
}
public:
TemplateImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
try {
const char* filename = (const char*)args.get(XmNimageFileName);
int imageLoadingFlag = args.get(XmNimageLoadingFlag);
int scalingRatio = (int)args.get(XmNimageScalingRatio);
loadImage(filename, imageLoadingFlag, scalingRatio);
} catch (OZ::Exception ex) {
caught(ex);
}
}
~TemplateImageView()
{
}
cv::Mat& getMat()
{
return originalImage;
}
void loadImage(const char* filename,
int imageLoadingFlag= CV_LOAD_IMAGE_COLOR,
int scalingRatio=100)
{
originalImage = readImage(filename, imageLoadingFlag);
scaleImage(originalImage, scaledImage, scalingRatio);
invalidate();
refresh();
}
void rescale(int scalingRatio)
{
scaleImage(originalImage, scaledImage, scalingRatio);
}
};
//Inner classes end.
private:
typedef enum {
SQDIFF = 0,
SQDIFF_NORMED,
CCORR,
CCORR_NORMED,
CCOEFF,
CCOEFF_NORMED,
} MATCHING_METHOD;
StringT<char> sourceImageFile;
StringT<char> templateImageFile;
static const int FIRST = 0;
static const int SECOND = 1;
int fileOpenIndex;
SmartPtr<SourceImageView> sourceImage;
SmartPtr<TemplateImageView> templateImage;
int imageLoadingFlag;
int imageScalingRatio; //percentage
SmartPtr<Label> label;
SmartPtr<RowColumn> controlPane;
SmartPtr<OpenCVScaleComboBox> scaleComboBox;
int matchingMethod;
SmartPtr<LabeledComboBox> matchingMethodComboBox;
SmartPtr<PushButton> clearButton;
SmartPtr<PushButton> matchButton;
SmartPtr<FileOpenDialog> fileDialog;
//Callback for the clearButton
void clear(Action& action)
{
sourceImage->clear(imageScalingRatio);
}
//Callback for the matchButton
void match(Action& action)
{
templateMatch();
}
//Template matching operation.
void templateMatch()
{
try {
static const Pair<MATCHING_METHOD, int> methods[] = {
{SQDIFF, CV_TM_SQDIFF},
{SQDIFF_NORMED, CV_TM_SQDIFF_NORMED},
{CCORR, CV_TM_CCORR},
{CCORR_NORMED, CV_TM_CCORR_NORMED},
{CCOEFF, CV_TM_CCOEFF},
{CCOEFF_NORMED, CV_TM_CCOEFF_NORMED},
};
int match_method = CV_TM_SQDIFF;
for (int i = 0; i<CountOf(methods); i++) {
if (matchingMethod == methods[i].first) {
match_method = methods[i].second;
}
}
cv::Mat& simage = sourceImage->getMat();
cv::Mat& timage = templateImage->getMat();
int result_cols = simage.cols - timage.cols + 1;
int result_rows = simage.rows - timage.rows + 1;
cv::Mat result;
result.create( result_rows, result_cols, CV_32FC1 );
cv::matchTemplate(simage, timage, result, match_method);
cv::normalize( result, result, 0, 1, NORM_MINMAX, -1, cv::Mat() );
double minVal, maxVal;
cv::Point minLoc, maxLoc;
cv::Point matchLoc;
cv::minMaxLoc(result, &minVal, &maxVal, &minLoc, &maxLoc, cv::Mat() );
if (match_method == TM_SQDIFF ||
match_method == TM_SQDIFF_NORMED ) {
matchLoc = minLoc;
} else {
matchLoc = maxLoc;
}
cv::Mat matchedImage = simage.clone();
cv::rectangle(matchedImage, matchLoc,
Point( matchLoc.x + timage.cols , matchLoc.y + timage.rows ),
CV_RGB(255, 0, 0), 3 );
sourceImage ->setMatchedImage(matchedImage, imageScalingRatio);
} catch (cv::Exception& ex) {
//MessageBox(NULL, "Caught an excption", "Exception", MB_OK);
}
}
//Callback for the matchingMethodComboBox
void matchingMethodChanged(Action& action)
{
matchingMethod = (MATCHING_METHOD)matchingMethodComboBox->getSelectedPosition();
printf("matchingMethodChanged: %d\n", matchingMethod);
templateMatch();
}
public:
void scaleChanged(Action& action)
{
int val = scaleComboBox->getScale();
if (val > 0 && imageScalingRatio != val) {
imageScalingRatio = val;
sourceImage -> rescale(imageScalingRatio);
templateImage -> rescale(imageScalingRatio);
}
}
void fileOpen(int index, Action& action)
{
fileOpenIndex = index;
fileDialog->popup();
}
void updateLabel()
{
char path[PATH_MAX];
sprintf(path, "%s, %s",
(const char*)sourceImageFile,
(const char*)templateImageFile);
label -> setText(path);
}
//OK button callback for FileOpenDialog
void ok(Action& action)
{
try {
fileDialog->popdown();
if (fileOpenIndex == 0) {
sourceImageFile = fileDialog->getFileName();
sourceImage->invalidate();
sourceImage->loadImage((const char*)sourceImageFile,
imageLoadingFlag, imageScalingRatio);
}
if (fileOpenIndex == 1) {
templateImageFile = fileDialog->getFileName();
templateImage->invalidate();
templateImage->loadImage((const char*)templateImageFile,
imageLoadingFlag, imageScalingRatio);
}
updateLabel();
resize(width(), height());
flush();
} catch (OZ::Exception& ex) {
caught(ex);
}
}
void resize(Dimension w, Dimension h)
{
int CP_WIDTH = 220;
int LB_HEIGHT = 30;
int ww = w-CP_WIDTH;
int hh = h - LB_HEIGHT;
if (label && sourceImage && templateImage
&& controlPane
) {
label -> reshape(0, 0, w, LB_HEIGHT);
sourceImage -> reshape(0, LB_HEIGHT, ww/2, hh );
templateImage-> reshape(ww/2, LB_HEIGHT, ww/2-1, hh);
controlPane -> reshape(ww-1, LB_HEIGHT, CP_WIDTH+1, hh);
controlPane -> unmap();
controlPane -> map();
}
flush();
}
//Callback to handle file pulldown events.
virtual void privateFileMenu(Action& action)
{
menuId = action.getClientIntData();
switch(menuId) {
case NEW:
fileNew(action);
break;
case OPEN_FILE1:
fileOpen(FIRST, action);
break;
case OPEN_FILE2:
fileOpen(SECOND, action);
break;
case SAVE:
fileSave(action);
break;
case SAVE_AS:
fileSaveAs(action);
break;
case EXIT:
confirm(action);
break;
}
}
virtual void addFilePulldownMenu()
{
//1 Recreate pulldown menu for File.
MenuBar* menubar = getMenuBar();
getFileMenuButton() -> recreatePulldownMenu(menubar, "file");
//2 Add PrivateFileItems to the FilePulldown.
getFileMenuButton() -> addItems(PrivateFileItems,
XtNumber(PrivateFileItems),
this, (Callback)&MainView::privateFileMenu);
}
public:
MainView(OpenCVApplication& applet, const char* name, Args& args)
:OpenCVMainView(applet, name, args)
{
addFilePulldownMenu();
BulletinBoard* bboard = getBulletinBoard();
imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
imageScalingRatio = 60; //%
try {
//sourceImageFile = "../images/SlantFigure.png";
//templateImageFile = "../images/FigureFace.png";
//sourceImageFile = "../images/Tokyo2020.png";
//templateImageFile = "../images/Tokyo.png";

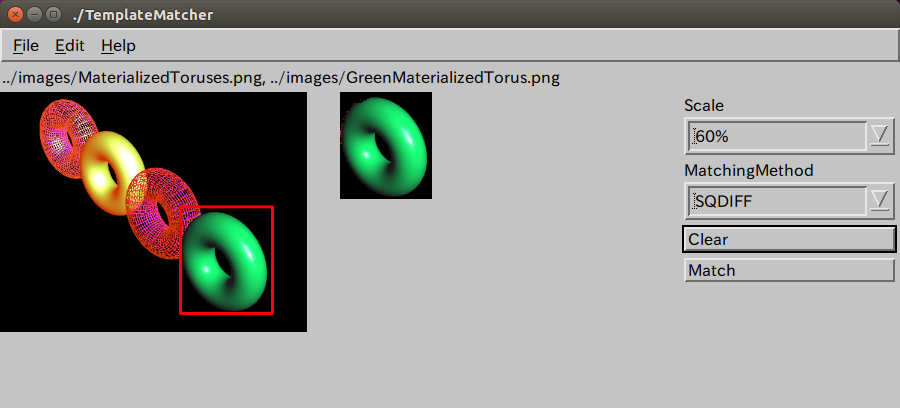

sourceImageFile = "../images/MaterializedToruses.png";
templateImageFile = "../images/GreenMaterializedTorus.png";
//1 Create a label to display image file names.
Args ar;
ar.set(XmNalignment, XmALIGNMENT_BEGINNING);
label = new Label(bboard, "", ar);
updateLabel();
int imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
//2 Create a sourceImageView.
ar.reset();
ar.set(XmNimageFileName, sourceImageFile);
ar.set(XmNimageLoadingFlag, imageLoadingFlag);
sourceImage = new SourceImageView(bboard, "", ar);
sourceImage->rescale(imageScalingRatio);
//3 Create a templateImageView.
ar.reset();
ar.set(XmNimageFileName, templateImageFile);
ar.set(XmNimageLoadingFlag, imageLoadingFlag);
templateImage = new TemplateImageView(bboard, "", ar);
templateImage->rescale(imageScalingRatio);
//4 Create a rowColumn controlPane to manage controls.
ar.reset();
controlPane = new RowColumn(bboard, "", ar);
//5 Create a scaleComboBox in the controlPane
const char* defaultScale = "60%";
ar.reset();
CompoundString scaler("Scale");
ar.set(XmNlabelString, scaler);
ar.set(XmNdefaultScale, defaultScale);
scaleComboBox = new OpenCVScaleComboBox(controlPane, "", ar);
scaleComboBox->addCallback(XmNselectionCallback, this,
(Callback)&MainView::scaleChanged, NULL);
//6 Create a matchingMethodComboBox.
ar.reset();
const char* items[] = {
"SQDIFF",
"SQDIFF_NORMED",
"CCORR",
"CCORR_NORMED",
"CCOEFF",
"CCOEFF_NORMED" };
matchingMethod = SQDIFF;
CompoundStringList csl(items, CountOf(items));
ar.set(XmNitems, csl);
ar.set(XmNitemCount, CountOf(items));
ar.set(XmNselectedPosition, matchingMethod);
matchingMethodComboBox = new LabeledComboBox(controlPane, "MatchingMethod", ar);
matchingMethodComboBox -> addCallback(XmNselectionCallback, this,
(Callback)&MainView::matchingMethodChanged, NULL);
//7 Create a clear push button.
ar.reset();
clearButton = new PushButton(controlPane, "Clear", ar);
clearButton -> addCallback(XmNactivateCallback, this,
(Callback)&MainView::clear, NULL);
//8 Create a match push button.
ar.reset();
matchButton = new PushButton(controlPane, "Match", ar);
matchButton -> addCallback(XmNactivateCallback, this,
(Callback)&MainView::match, NULL);

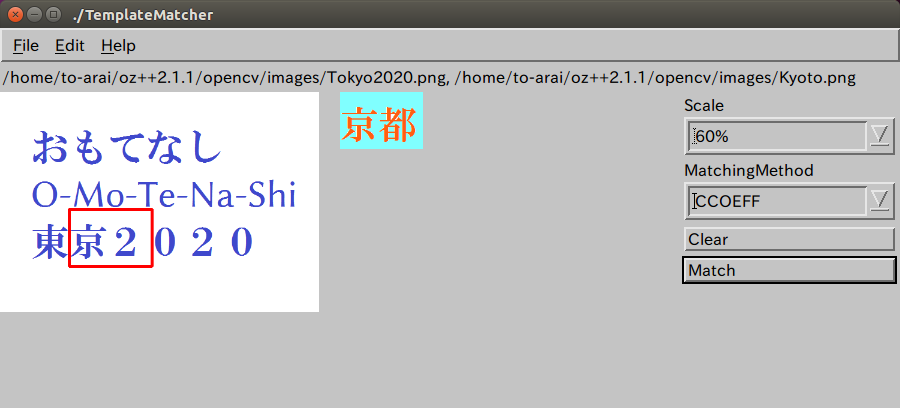

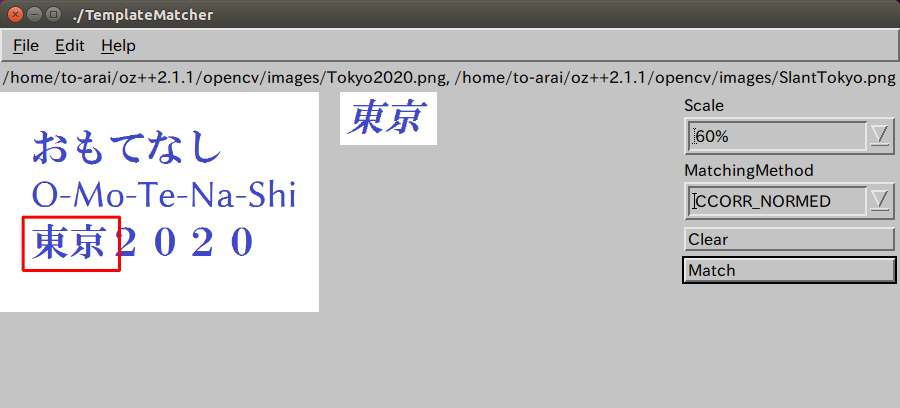

//9 Call match method to match template image in sourceimages
templateMatch();
ar.reset();
fileDialog = new FileOpenDialog(this, "FileOpenDialog", ar);
fileDialog -> getOkButton()
-> addCallback(XmNactivateCallback, this,
(Callback)&MainView::ok, NULL);
sendConfigureEvent();
} catch(OZ::Exception& ex) {
caught(ex);
}
}
~MainView()
{
}
};
}
//
int main(int argc, char** argv)
{
try {
const char* appclass = argv[0];
OpenCVApplication applet(appclass, argc, argv);
Args args;
args.set(XmNwidth, 900);
args.set(XmNheight, 380);
MainView view(applet, argv[0], args);
view.realize();
applet.run();
} catch (OZ::Exception& ex) {
caught(ex);
}
return 0;
}
