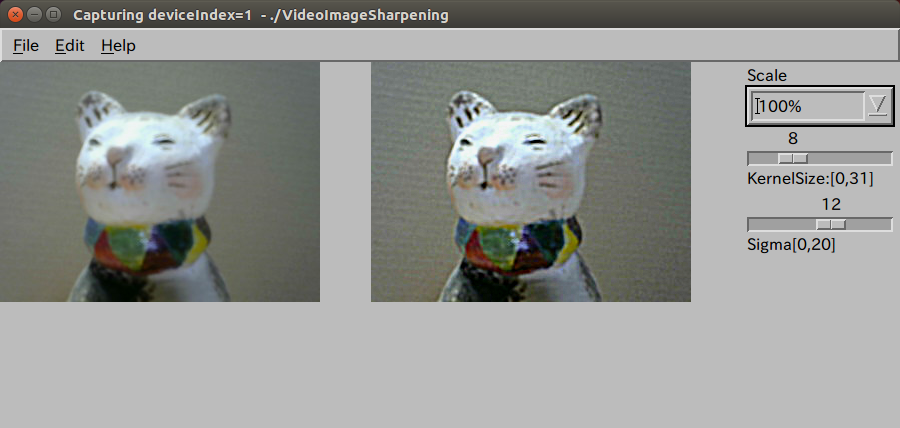

OZ++ Sample: VideoImageSharpening |
/******************************************************************************
*
* Copyright (c) 2017 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
* 1. Redistributions of source code must retain the above copyright
* notice, this list of conditions, and the following disclaimer.
*
* 2. The name of the author may not be used to endorse or promote products
* derived from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR
* IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
* OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
* IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
* ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*
*
* VideoImageSharpening.cpp
*
*****************************************************************************/
//#include <oz++/StringT.h>
#include <oz++/Mutex.h>
#include <oz++/motif/RowColumn.h>
#include <oz++/motif/LabeledTrackBar.h>
#include <oz++/opencv/OpenCVVideoCaptureView.h>
#include <oz++/opencv/OpenCVImageView.h>
#include <oz++/opencv/OpenCVScaleComboBox.h>
#include <oz++/opencv/OpenCVScrolledImageView.h>
namespace OZ {
class MainView :public OpenCVVideoCaptureView {
private:
//Inner classes start.
class OriginalImageView: public OpenCVImageView {
private:
cv::Mat image;
cv::Mat scaledImage;
public:
void display()
{
show(scaledImage);
}
public:
OriginalImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
}
void render(cv::Mat& frame, int scalingRatio)
{
image = frame;
rescale(image, scaledImage, scalingRatio);
invalidate();
refresh();
}
};
class SharpenedImageView: public OpenCVImageView {
private:
cv::Mat image;
cv::Mat scaledImage;
public:
void display()
{
show(scaledImage);
}
public:
SharpenedImageView(View* parent, const char* name, Args& args)
:OpenCVImageView(parent, name, args)
{
}
void render(cv::Mat& frame, int ksize, int sigma, int scalingRatio)
{
image = frame;
ksize = (ksize*2)/2 + 1;
cv::Mat newImage = cv::Mat::zeros(image.size(), image.type() );
cv::GaussianBlur(image, newImage, cv::Size(ksize, ksize),
(double)sigma, //sigmaX,
(double)sigma, //sigmaY
BORDER_DEFAULT);
double alpha = 2.5;
double beta = 1.0 - alpha;
cv::addWeighted(image, alpha, newImage, beta, 0.0, newImage);
rescale(newImage, scaledImage, scalingRatio);
invalidate();
refresh();
}
};
//Inner classes end
private:
SmartPtr<OriginalImageView> originalView;
SmartPtr<SharpenedImageView> sharpenedImage;
SmartPtr<RowColumn> controlPane;
int imageScalingRatio;
SmartPtr<LabeledTrackBar> ksizeTrackBar;
int ksize;
SmartPtr<LabeledTrackBar> sigmaTrackBar;
int sigma;
SmartPtr<OpenCVScaleComboBox> scaleComboBox;
void resize(Dimension w, Dimension h)
{
int CP_WIDTH = 160;
w = w- CP_WIDTH;
if (originalView && sharpenedImage && controlPane) {
originalView-> resize(0, 0, w/2-1, h, 0);
sharpenedImage -> resize(w/2+1, 0, w/2-2, h, 0);
controlPane -> reshape(w+2, 0, CP_WIDTH-4, h);
}
}
void scaleChanged(Action& action)
{
int val = scaleComboBox->getScale();
if (val > 0 && imageScalingRatio != val) {
imageScalingRatio = val;
printf("ScalingRatio %d\n", val);
}
}
void ksizeChanged(Action& action)
{
ksize = (int)ksizeTrackBar->get(XmNvalue);
}
void sigmaChanged(Action& action)
{
sigma = sigmaTrackBar->get(XmNvalue);
printf("sigmaChanged sigma=%d\n", sigma);
}
public:
MainView(OpenCVApplication& applet, const char* name, Args& args)
:OpenCVVideoCaptureView(applet, name, args)
,imageScalingRatio(100)
,ksize(8)
{
try {
BulletinBoard* bboard = getBulletinBoard();
Args ar;
ar.reset();
originalView = new OriginalImageView(bboard, "", ar);
ar.reset();
sharpenedImage = new SharpenedImageView(bboard, "", ar);
ar.reset();
controlPane = new RowColumn(bboard, "", ar);
const char* defaultScale = "100%";
ar.reset();
CompoundString scaler("Scale");
ar.set(XmNlabelString, scaler);
ar.set(XmNdefaultScale, defaultScale);
scaleComboBox = new OpenCVScaleComboBox(controlPane, "", ar);
scaleComboBox->addCallback(XmNselectionCallback, this,
(Callback)&MainView::scaleChanged, NULL);
ksize =8;
ar.reset();
CompoundString ksizecs("KernelSize:[0,31]");
ar.set(XmNminimum, 0);
ar.set(XmNmaximum, 31);
ar.set(XmNvalue, ksize);
ar.set(XmNtitleString, ksizecs);
ksizeTrackBar = new LabeledTrackBar(controlPane, "", ar);
ksizeTrackBar->addCallback(XmNvalueChangedCallback, this,
(Callback)&MainView::ksizeChanged, NULL);
ar.reset();
CompoundString sigmacs("Sigma[0,20]");
sigma = 12;
ar.set(XmNminimum, 0);
ar.set(XmNmaximum, 20);
ar.set(XmNvalue, sigma );
ar.set(XmNtitleString, sigmacs);
sigmaTrackBar = new LabeledTrackBar(controlPane, "", ar);
sigmaTrackBar->addCallback(XmNvalueChangedCallback, this,
(Callback)&MainView::sigmaChanged, NULL);
sendConfigureEvent();
} catch(OZ::Exception& ex) {
caught(ex);
}
}
~MainView()
{
}
virtual void render()
{
try {
cv::Mat frame;
if (readVideoFrame(frame)) {
if (originalView && sharpenedImage) {
originalView->render(frame, imageScalingRatio);
sharpenedImage ->render(frame, ksize, sigma, imageScalingRatio);
}
}
} catch (...) {
}
}
};
}
//
int main(int argc, char** argv)
{
try {
const char* appclass = argv[0];
OpenCVApplication applet(appclass, argc, argv);
Args args;
args.set(XmNwidth, 900);
args.set(XmNheight, 400);
args.set(XmNvideoDeviceIndex, 0);
args.set(XmNcaptureAutoStart, true);
MainView view(applet, argv[0], args);
view.realize();
applet.run(&view, 100); //100msec
} catch (OZ::Exception& ex) {
caught(ex);
}
return 0;
}
