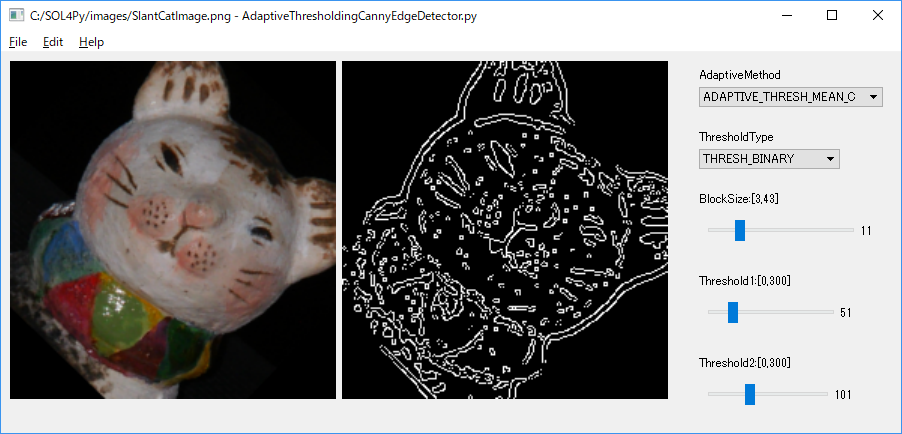

SOL4Py Sample: AdaptiveThresholdingCannyEdgeDetector

SOL4Py Samples





#******************************************************************************
#
#  Copyright (c) 2018-2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************


#  AdaptiveThresholdCannyEdgeDetector.py

# encodig: utf-8

import sys
import os
import cv2
import traceback


from PyQt5.QtCore    import *
from PyQt5.QtWidgets import *
from PyQt5.QtGui     import *

#
sys.path.append('../')

from SOL4Py.ZApplicationView import *

from SOL4Py.ZLabeledComboBox import ZLabeledComboBox
from SOL4Py.ZLabeledSlider   import ZLabeledSlider
from SOL4Py.opencv.ZOpenCVImageView import ZOpenCVImageView
from SOL4Py.ZVerticalPane    import ZVerticalPane


class MainView(ZApplicationView):
  # Inner classes
  #--------------------------------------------
  class SourceImageView(ZOpenCVImageView):
    def __init__(self, parent):
      ZOpenCVImageView.__init__(self, parent)

    def load(self, filename):
      self.load_opencv_image(filename)
      self.update()

  class DetectedImageView(ZOpenCVImageView):
    def __init__(self, parent):
      ZOpenCVImageView.__init__(self, parent)

    def load(self, filename):
      source_image = self.load_opencv_image(filename)
      self.gray_image = cv2.cvtColor(source_image, cv2.COLOR_RGB2GRAY)

    def detect(self, adaptive_method_id, threshold_type_id, block_size, threshold1, threshold2):
      MAX_PIXEL_VALUE = 255;
      C               = 9.0;

      adapted_image = cv2.adaptiveThreshold(self.gray_image,  MAX_PIXEL_VALUE,
          adaptive_method_id, threshold_type_id, block_size,  C);

      detected_image = cv2.Canny(adapted_image, threshold1, threshold2);

      self.set_opencv_image(detected_image)
      self.update()

  #--------------------------------------------



  # MainView Constructor
  def __init__(self, title, x, y, width, height):
    super(MainView, self).__init__(title, x, y, width, height)

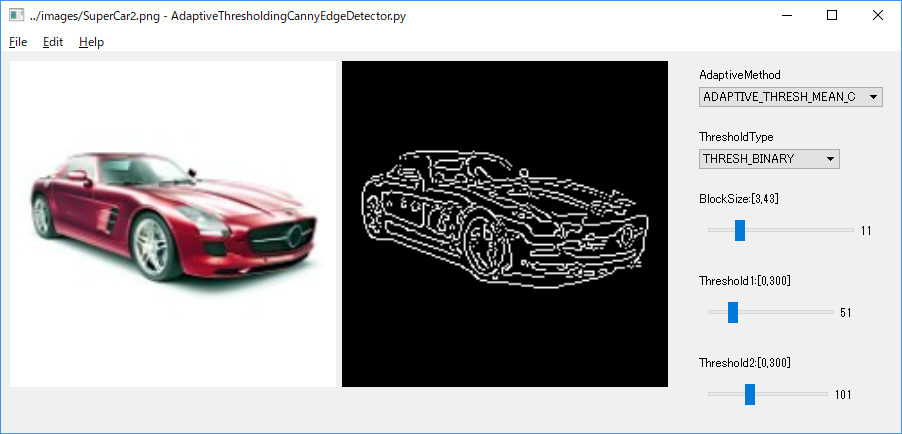

    filename = "../images/SuperCar2.png"

    # 1 Create first imageview.
    self.source_image_view = self.SourceImageView(self)

    # 2 Create second imageview.
    self.detected_image_view = self.DetectedImageView(self)

    # 3 Load the file
    self.load_file(filename)

    # 4 Add imageviews to the main_layout which is a horizontal layouter.
    self.add(self.source_image_view)
    self.add(self.detected_image_view)

    self.detected_image_view.detect(self.adaptive_method_id, self.threshold_type_id, self.block_size,
                                             self.threshold1, self.threshold2)

    self.show()


  def add_control_pane(self, fixed_width=220):
    # Control pane widget
    self.block_size = 11
    self.vpane = ZVerticalPane(self, fixed_width)

    self.adaptive_method_id = 0
    self.threshold_type_id  = 0

    self.methods = {"ADAPTIVE_THRESH_MEAN_C": cv2.ADAPTIVE_THRESH_MEAN_C,
                    "ADAPTIVE_THRESH_GAUSSIAN_C": cv2.ADAPTIVE_THRESH_GAUSSIAN_C}

    self.types   = {"THRESH_BINARY":  cv2.THRESH_BINARY  ,
                    "THRESH_BINARY_INV": cv2.THRESH_BINARY_INV }

    self.adaptive_method = ZLabeledComboBox(self.vpane, "AdaptiveMethod")
    self.adaptive_method.add_items(list(self.methods.keys() ))
    self.adaptive_method.add_activated_callback(self.adaptive_method_activated)

    self.threshold_type  = ZLabeledComboBox(self.vpane, "ThresholdType")
    self.threshold_type.add_items(list(self.types.keys()) )
    self.threshold_type.add_activated_callback(self.threshold_type_activated)

    self.block_size_slider = ZLabeledSlider(self.vpane, "BlockSize", take_odd =True,
              minimum=3, maximum=43, value=self.block_size, fixed_width=200)
    self.block_size_slider.add_value_changed_callback(self.block_size_changed)
    self.vpane.add(self.adaptive_method)
    self.vpane.add(self.threshold_type)
    self.vpane.add(self.block_size_slider)

    self.threshold1 =  50
    self.threshold2 = 100

    self.threshold1_slider = ZLabeledSlider(self.vpane, "Threshold1", take_odd =True,
              minimum=0, maximum=300, value=self.threshold1)
    self.threshold1_slider.add_value_changed_callback(self.slider1_value_changed)

    self.threshold2_slider = ZLabeledSlider(self.vpane, "Threshold2", take_odd =True,
              minimum=0, maximum=300, value=self.threshold2)
    self.threshold2_slider.add_value_changed_callback(self.slider2_value_changed)

    self.vpane.add(self.threshold1_slider)
    self.vpane.add(self.threshold2_slider)

    self.set_right_dock(self.vpane)

  def file_open(self):
    options = QFileDialog.Options()
    filename, _ = QFileDialog.getOpenFileName(self,"FileOpenDialog", "",
                     "All Files (*);;Image Files (*.png;*jpg;*.jpeg)", options=options)
    if filename:
      self.load_file(filename)

  def load_file(self, filename):
    self.source_image_view.load(filename)
    self.detected_image_view.load(filename)
    self.detected_image_view.detect(self.adaptive_method_id, self.threshold_type_id, self.block_size,
                                             self.threshold1, self.threshold2)
    self.set_filenamed_title(filename)


  def block_size_changed(self, value):
    self.block_size = int(value)
    if self.block_size % 2 == 0:
      # Block size should be odd.
      self.block_size = int((self.block_size * 2)/2 + 1)
    #print("block_size_changed:{}".format(block_size))
    self.detected_image_view.detect(self.adaptive_method_id, self.threshold_type_id, self.block_size,
                                             self.threshold1, self.threshold2)

  def adaptive_method_activated(self, text):
    self.adaptive_method_id = self.methods[text]
    #print("adaptive_method_activated:{}{}".format(text, self.adaptive_method_id))
    self.detected_image_view.detect(self.adaptive_method_id, self.threshold_type_id, self.block_size,
                                             self.threshold1, self.threshold2)

  def threshold_type_activated(self, text):
    self.threshold_type_id = self.types[text]
    #print("threshold_type_activated:{}{}".format(text, self.threshold_type_id))
    self.detected_image_view.detect(self.adaptive_method_id, self.threshold_type_id, self.block_size,
                                             self.threshold1, self.threshold2)

  def slider1_value_changed(self, value):
    self.threshold1 = int(value)
    #print("slider1_value_changed:{}".format(value))
    self.detected_image_view.detect(self.adaptive_method_id, self.threshold_type_id, self.block_size,
                                             self.threshold1, self.threshold2)

  def slider2_value_changed(self, value):
    self.threshold2 = int(value)
    #print("slider2_value_changed:{}".format(value))
    self.detected_image_view.detect(self.adaptive_method_id, self.threshold_type_id, self.block_size,
                                             self.threshold1, self.threshold2)

#*************************************************
#
if main(__name__):
  try:
    app_name  = os.path.basename(sys.argv[0])
    applet    = QApplication(sys.argv)

    main_view = MainView(app_name, 40, 40, 900, 380)
    main_view.show ()

    applet.exec_()

  except:
    traceback.print_exc()


Last modified: 22 Mar. 2019
