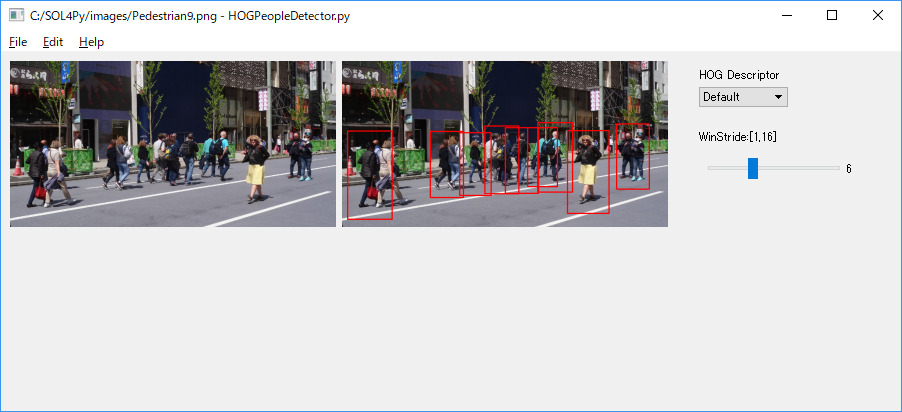

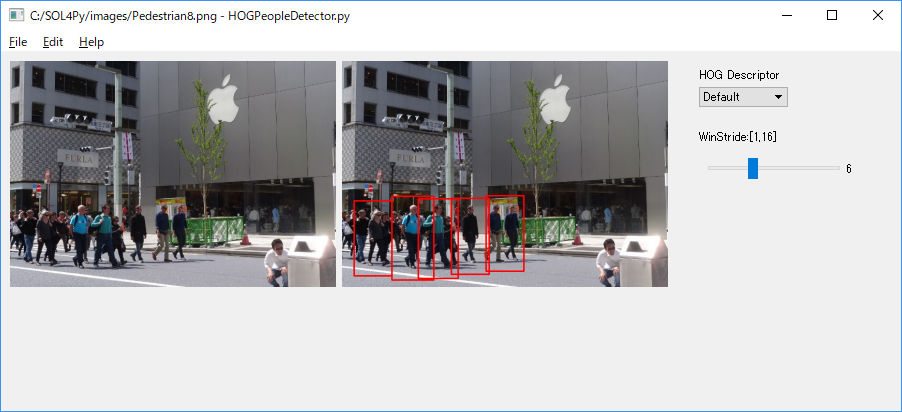

SOL4Py Sample: HOGPeopleDetector

SOL4Py Samples







#******************************************************************************
#
#  Copyright (c) 2018 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************


#  HOGPeopleDetector.py

"""
detectMultiScale(...) method of cv2.HOGDescriptor instance
    detectMultiScale(img[, hitThreshold[,
                     winStride[,
                       padding[,
                         scale[,
                         finalThreshold[, useMeanshiftGrouping
                         ]]]]]]) -> foundLocations, foundWeights
    .   @brief Detects objects of different sizes in the input image. The detected objects are returned as a list
    .   of rectangles.
    .   @param img Matrix of the type CV_8U or CV_8UC3 containing an image where objects are detected.
    .   @param foundLocations Vector of rectangles where each rectangle contains the detected object.
    .   @param foundWeights Vector that will contain confidence values for each detected object.
    .   @param hitThreshold Threshold for the distance between features and SVM classifying plane.
    .   Usually it is 0 and should be specfied in the detector coefficients (as the last free coefficient).
    .   But if the free coefficient is omitted (which is allowed), you can specify it manually here.
    .   @param winStride Window stride. It must be a multiple of block stride.
    .   @param padding Padding
    .   @param scale Coefficient of the detection window increase.
    .   @param finalThreshold Final threshold
    .   @param useMeanshiftGrouping indicates grouping algorithm

"""

# encodig: utf-8

import sys
import os
import cv2
import traceback


from PyQt5.QtCore    import *
from PyQt5.QtWidgets import *
from PyQt5.QtGui     import *

#
sys.path.append('../')

from SOL4Py.ZApplicationView import *

from SOL4Py.ZLabeledComboBox import ZLabeledComboBox
from SOL4Py.ZLabeledSlider   import ZLabeledSlider
from SOL4Py.ZOpenCVImageView import ZOpenCVImageView
from SOL4Py.ZVerticalPane    import ZVerticalPane


class MainView(ZApplicationView):
  # Inner classes
  #--------------------------------------------
  class SourceImageView(ZOpenCVImageView):
    def __init__(self, parent):
      ZOpenCVImageView.__init__(self, parent)

    def load(self, filename):
      self.load_opencv_image(filename)
      self.update()

  class DetectedImageView(ZOpenCVImageView):
    def __init__(self, parent):
      ZOpenCVImageView.__init__(self, parent)

    def load(self, filename):
      self.load_opencv_image(filename)

    def detect(self, hog_descriptor_id, stride):
      detected_image = self.get_opencv_image().copy()

      self.hog = None

      if hog_descriptor_id == MainView.DEFAULT:
        winSize     = (64,128)
        blockSize   = (16, 16)
        blockStride = ( 8,  8)
        cellSize    = ( 8,  8)
        nbins       = 9
        self.hog = cv2.HOGDescriptor(winSize, blockSize, blockStride, cellSize, nbins)
        self.hog.setSVMDetector(cv2.HOGDescriptor_getDefaultPeopleDetector())

      if hog_descriptor_id == MainView.DAIMLER:
        winSize     = (48, 96)
        blockSize   = (16, 16)
        blockStride = ( 8,  8)
        cellSize    = ( 8,  8)
        nbins       = 9
        self.hog = cv2.HOGDescriptor(winSize, blockSize, blockStride, cellSize, nbins)
        self.hog.setSVMDetector(cv2.HOGDescriptor_getDaimlerPeopleDetector())

      if hog_descriptor_id == MainView.USER_DEFINED:
        winSize     = (32, 64)
        blockSize   = ( 8,  8)
        blockStride = ( 4,  4)
        cellSize    = ( 4,  4)
        nbins       = 9
        self.hog = cv2.HOGDescriptor(winSize, blockSize, blockStride, cellSize, nbins)
        self.hog.setSVMDetector(cv2.HOGDescriptor_getDefaultPeopleDetector())

      (rectangles, weights) = self.hog.detectMultiScale(detected_image, hitThreshold=0,
                        winStride=(stride, stride),
                        padding=(0,0),
                        scale=1.05,
                        finalThreshold=2)

      for (x, y, w, h) in rectangles:
        cv2.rectangle(detected_image, (x, y), (x + w, y + h), (0, 0, 255), 2)

      self.set_opencv_image(detected_image)
      self.update()

  #--------------------------------------------

  DEFAULT      = 0
  DAIMLER      = 1
  USER_DEFINED = 2

  # MainView Constructor
  def __init__(self, title, x, y, width, height):
    super(MainView, self).__init__(title, x, y, width, height)

    filename = "../images/Pedestrian.png"

    # 1 Create first imageview.
    self.source_image_view = self.SourceImageView(self)

    # 2 Create second imageview.
    self.detected_image_view = self.DetectedImageView(self)

    # 3 Load the file
    self.load_file(filename)

    # 4 Add two image views to a main_layout of this main view.
    self.add(self.source_image_view)
    self.add(self.detected_image_view)

    self.show()


  def add_control_pane(self, fixed_width=220):
    # Control pane widget
    self.vpane = ZVerticalPane(self, fixed_width)

    self.stride = 6

    self.hog_descriptor_id = self.DEFAULT;

    self.hog_descriptors = {"Default":     self.DEFAULT,
                            "Daimler":     self.DAIMLER,
                            "UserDefined": self.USER_DEFINED }

    self.hog_descriptor = ZLabeledComboBox(self.vpane, "HOG Descriptor")
    self.hog_descriptor.add_items(list(self.hog_descriptors.keys() ))
    self.hog_descriptor.add_activated_callback(self.hog_descriptor_activated)
    self.hog_descriptor.set_current_text(self.hog_descriptor_id)


    self.stride_slider = ZLabeledSlider(self.vpane, "WinStride", take_odd =False,
              minimum=1, maximum=16, value=self.stride, fixed_width=180)
    self.stride_slider.add_value_changed_callback(self.stride_value_changed)

    self.vpane.add(self.hog_descriptor)
    self.vpane.add(self.stride_slider)

    self.set_right_dock(self.vpane)

  def file_open(self):
    options = QFileDialog.Options()
    filename, _ = QFileDialog.getOpenFileName(self,"FileOpenDialog", "",
                     "All Files (*);;Image Files (*.png;*jpg;*.jpeg)", options=options)
    if filename:
      self.load_file(filename)

  def load_file(self, filename):
    self.source_image_view.load(filename)
    self.detected_image_view.load(filename)
    self.detected_image_view.detect(self.hog_descriptor_id,  self.stride)
    self.set_filenamed_title(filename)


  def stride_value_changed(self, value):
    self.stride = int(value)
    self.detected_image_view.detect(self.hog_descriptor_id,  self.stride)

  def hog_descriptor_activated(self, text):
    self.hog_descriptor_id = self.hog_descriptors[text]
    print("hog_descriptor_activated:{} {}".format(text, self.hog_descriptor_id))
    self.detected_image_view.detect(self.hog_descriptor_id,  self.stride)


#*************************************************
#
if main(__name__):
  try:
    app_name  = os.path.basename(sys.argv[0])
    applet    = QApplication(sys.argv)

    main_view = MainView(app_name, 40, 40, 900, 380)
    main_view.show ()

    applet.exec_()

  except:
    traceback.print_exc()



Last modified: 1 May 2018
