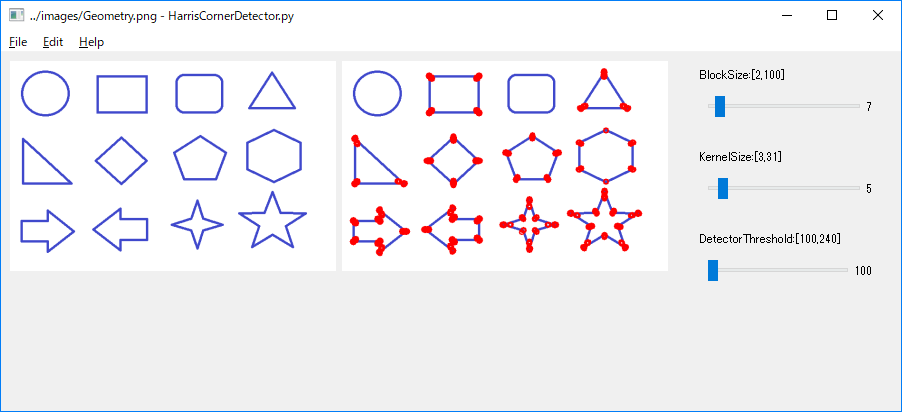

SOL4Py Sample: HarrisCornerDetector
|
#******************************************************************************
#
# Copyright (c) 2018-2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
# This program is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program. If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************
# HarrisCornerDetector.py
# 2018/08/24
# encodig: utf-8
import sys
import os
import cv2
import traceback
import numpy as np
from PyQt5.QtCore import *
from PyQt5.QtWidgets import *
from PyQt5.QtGui import *
#
sys.path.append('../')
from SOL4Py.ZApplicationView import *
from SOL4Py.ZLabeledComboBox import ZLabeledComboBox
from SOL4Py.ZLabeledSlider import ZLabeledSlider
from SOL4Py.opencv.ZOpenCVImageView import ZOpenCVImageView
from SOL4Py.ZVerticalPane import ZVerticalPane
class MainView(ZApplicationView):
# Inner classes
#--------------------------------------------
class SourceImageView(ZOpenCVImageView):
def __init__(self, parent):
ZOpenCVImageView.__init__(self, parent)
def load(self, filename):
self.load_opencv_image(filename)
self.update()
class DetectedImageView(ZOpenCVImageView):
def __init__(self, parent):
ZOpenCVImageView.__init__(self, parent)
def load(self, filename):
source_image = self.load_opencv_image(filename)
self.gray_image = cv2.cvtColor(source_image, cv2.COLOR_RGB2GRAY)
#The following detect_cornert method is based on the code:
#http:#www.swarthmore.edu/NatSci/mzucker1/opencv-2.4.10-docs/
# doc/tutorials/features2d/trackingmotion/harris_detector/harris_detector.html
def detect(self, bsize, ksize, threshold):
source_image = self.get_opencv_image()
#blockSize: Neighborhood size.
#ksize : Aperture parameter for the Sobel operator,
# which should be odd.
ksize = int(ksize)
#k: Harris detector free parameter.
k = float(0.04)
w, h, c = source_image.shape
dest_image = np.zeros([w, h], dtype=np.uint8 )
gray_image = cv2.cvtColor(source_image, cv2.COLOR_RGB2GRAY)
dest_image = cv2.cornerHarris(gray_image, bsize, ksize, k, cv2.BORDER_DEFAULT )
cv2.normalize(dest_image, dest_image, 0, 255, cv2.NORM_MINMAX)
#We draw circles at the corners detected by cornerHarris on the originalImage
# by using the destNormalized image data and the threshold parameter
# which is used to draw the circles..
detected_image = source_image.copy()
iw, ih = dest_image.shape
for j in range( iw) :
for i in range( ih) :
if dest_image[j,i] > threshold :
cv2.circle(detected_image, ( i, j ), 5, (0, 0, 255), 1, 8, 0)
self.set_opencv_image(detected_image)
self.update()
#--------------------------------------------
# MainView Constructor
def __init__(self, title, x, y, width, height):
super(MainView, self).__init__(title, x, y, width, height)
filename = "../images/Geometry.png"
# 1 Create first imageview.
self.source_image_view = self.SourceImageView(self)
# 2 Create second imageview.
self.detectd_image_view = self.DetectedImageView(self)
# 3 Load the file
self.load_file(filename)
# 4 Add two image views to a main_layout of this main view.
self.add(self.source_image_view)
self.add(self.detectd_image_view)
self.show()
def add_control_pane(self, fixed_width=220):
# Control pane widget
self.vpane = ZVerticalPane(self, fixed_width)
self.blockSize = 7;
self.kernelSize = 5;
self.detectorThreshold = 100
self.blockSizeance_slider = ZLabeledSlider(self.vpane, "BlockSize", take_odd =False,
minimum=2, maximum=100, value=self.blockSize, fixed_width=200)
self.blockSizeance_slider.add_value_changed_callback(self.blockSizeance_value_changed)
self.kernelSize_slider = ZLabeledSlider(self.vpane, "KernelSize", take_odd =True,
minimum=3, maximum=31, value=self.kernelSize, fixed_width=200)
self.kernelSize_slider.add_value_changed_callback(self.kernelSize_value_changed)
self.detectorThreshold_slider = ZLabeledSlider(self.vpane, "DetectorThreshold", take_odd =False,
minimum=100, maximum=240, value=self.detectorThreshold, fixed_width=200)
self.detectorThreshold_slider.add_value_changed_callback(self.detectorThreshold_value_changed)
self.vpane.add(self.blockSizeance_slider)
self.vpane.add(self.kernelSize_slider)
self.vpane.add(self.detectorThreshold_slider)
self.set_right_dock(self.vpane)
def file_open(self):
options = QFileDialog.Options()
filename, _ = QFileDialog.getOpenFileName(self,"FileOpenDialog", "",
"All Files (*);;Image Files (*.png;*jpg;*.jpeg)", options=options)
if filename:
self.load_file(filename)
def load_file(self, filename):
self.source_image_view.load(filename)
self.detectd_image_view.load(filename)
self.detectd_image_view.detect(self.blockSize, self.kernelSize, self.detectorThreshold)
self.set_filenamed_title(filename)
def blockSizeance_value_changed(self, value):
self.blockSize= int(value)
self.detectd_image_view.detect(self.blockSize, self.kernelSize, self.detectorThreshold)
def kernelSize_value_changed(self, value):
self.kernelSize = int(value)
self.detectd_image_view.detect(self.blockSize, self.kernelSize, self.detectorThreshold)
def detectorThreshold_value_changed(self, value):
self.detectorThreshold = int(value)
self.detectd_image_view.detect(self.blockSize, self.kernelSize, self.detectorThreshold)
#*************************************************
#
if main(__name__):
try:
app_name = os.path.basename(sys.argv[0])
applet = QApplication(sys.argv)
main_view = MainView(app_name, 40, 40, 900, 380)
main_view.show ()
applet.exec_()
except:
traceback.print_exc()
pass
Last modified: 22 Mar. 2019
