SOL4Py Sample: NonPhotorealisticRendering

SOL4Py Samples













#******************************************************************************
#
#  Copyright (c) 2018 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************


#  NonPhotorealisticRendering.py

# encodig: utf-8

import sys
import os
import cv2
import traceback


from PyQt5.QtCore    import *
from PyQt5.QtWidgets import *
from PyQt5.QtGui     import *

#
sys.path.append('../')

from SOL4Py.ZApplicationView import *
from SOL4Py.ZLabeledComboBox import ZLabeledComboBox
from SOL4Py.ZLabeledSlider   import ZLabeledSlider
from SOL4Py.ZOpenCVImageView import ZOpenCVImageView
from SOL4Py.ZVerticalPane    import ZVerticalPane
from SOL4Py.ZLabeledFileComboBox import ZLabeledFileComboBox


class MainView(ZApplicationView):
  # Inner classes
  #--------------------------------------------
  class SourceImageView(ZOpenCVImageView):
    def __init__(self, parent):
      ZOpenCVImageView.__init__(self, parent)

    def load(self, filename):
      self.load_opencv_image(filename)
      self.update()

  class NonPhotorealisticView(ZOpenCVImageView):
    def __init__(self, parent):
      ZOpenCVImageView.__init__(self, parent)

    def load(self, filename):
      self.load_opencv_image(filename)
      self.update()

    def transform(self, renderer_type_id):
      print("transform {}".format(renderer_type_id))
      try:
        src_image = self.get_opencv_image()
        self.transformed_image = None

        if src_image.any() != None:
          if renderer_type_id == MainView.EdgePreserveSmoothingByNormalizedConvolutionFilter:
            self.transformed_image = cv2.edgePreservingFilter(src_image, flags=1)

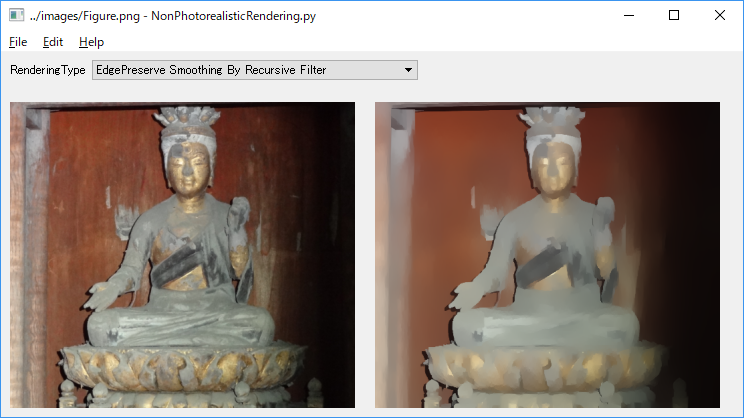

          if renderer_type_id ==  MainView.EdgePreserveSmoothingByRecursiveFilter:
            self.transformed_image =  cv2.edgePreservingFilter(src_image, flags=2)

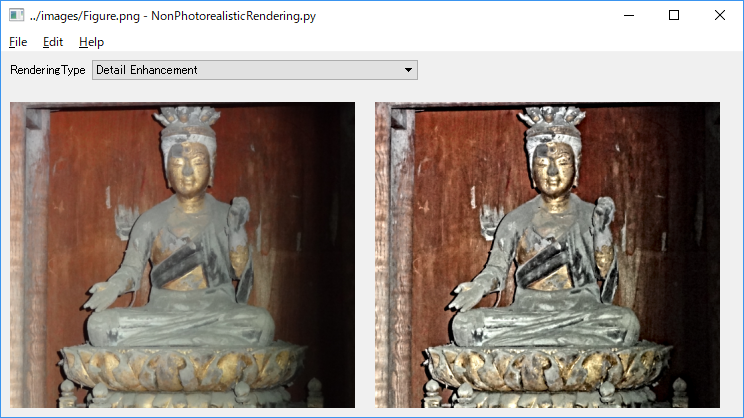

          if renderer_type_id ==  MainView.DetailEnhancement:
            self.transformed_image =  cv2.detailEnhance(src_image)

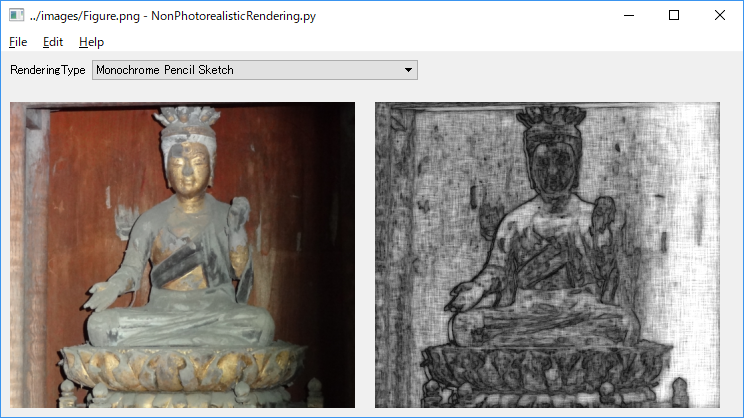

          if renderer_type_id ==  MainView.MonochromePencilSketch:
            self.transformed_image, _ = cv2.pencilSketch(src_image, sigma_s=10 , sigma_r=0.1, shade_factor=0.03)

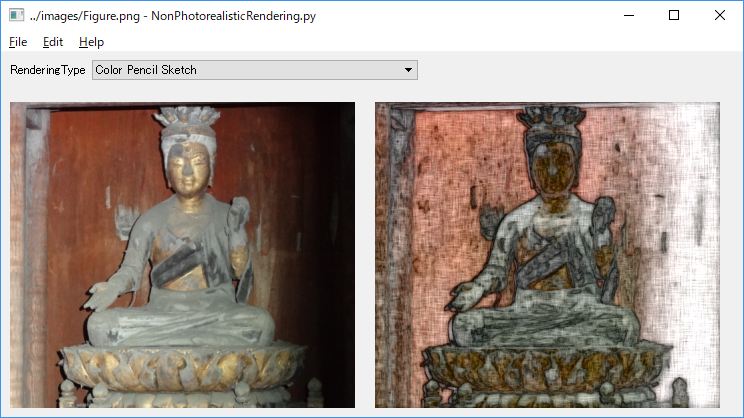

          if renderer_type_id ==  MainView.ColorPencilSketch:
            _, self.transformed_image =  cv2.pencilSketch(src_image, sigma_s=10 , sigma_r=0.1, shade_factor=0.03)

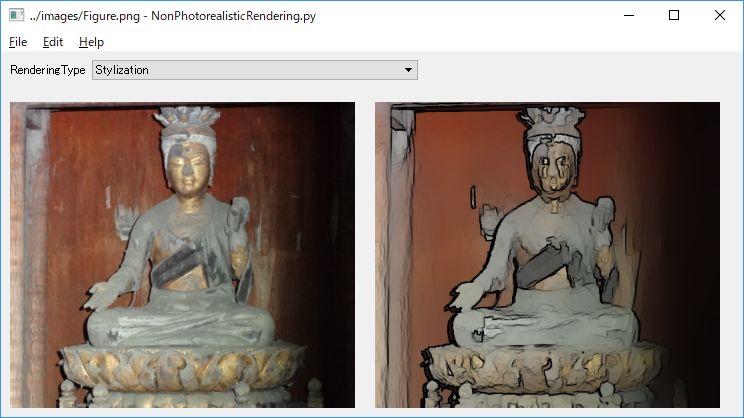

          if renderer_type_id ==  MainView.Stylization:
            self.transformed_image =  cv2.stylization(src_image)

          if self.transformed_image.all() != None:
            self.set_opencv_image(self.transformed_image)
            self.update()
      except:
        traceback.print_exc()
  #--------------------------------------------


  # Class variables
  EdgePreserveSmoothingByNormalizedConvolutionFilter = 0
  EdgePreserveSmoothingByRecursiveFilter             = 1
  DetailEnhancement                                  = 2
  MonochromePencilSketch                             = 3
  ColorPencilSketch                                  = 4
  Stylization                                        = 5


  # MainView Constructor
  def __init__(self, title, x, y, width, height):
    super(MainView, self).__init__(title, x, y, width, height)

    self.filename = "../images/Figure.png"

    # 1 Create source imageview.
    self.source_image_view = self.SourceImageView(self)

    # 2 Create NonPhotorealisticView imageview.
    self.transformed_image_view = self.NonPhotorealisticView(self)


    # 3 Add two image views to a main_layout of this main view.
    self.add(self.source_image_view)
    self.add(self.transformed_image_view)

    # 4 Add a labeled combobox to top dock area
    self.add_renderer_combobox()

    # 5 Load the file
    self.load_file(self.filename)

    self.show()

  def add_renderer_combobox(self):
    self.renderer_id = MainView.EdgePreserveSmoothingByNormalizedConvolutionFilter
    self.renderer_combobox = ZLabeledComboBox(self, "RenderingType", Qt.Horizontal)

    self.renderers = {"EdgePreserve Smoothing By Normalized Convolution Filter":
                          MainView.EdgePreserveSmoothingByNormalizedConvolutionFilter,
                     "EdgePreserve Smoothing By Recursive Filter":
                          MainView.EdgePreserveSmoothingByRecursiveFilter,
                     "Detail Enhancement":
                          MainView.DetailEnhancement,
                     "Monochrome Pencil Sketch":
                          MainView.MonochromePencilSketch,
                     "Color Pencil Sketch":
                          MainView.ColorPencilSketch,
                     "Stylization":
                          MainView.Stylization }

    self.renderer_combobox.add_items(self.renderers.keys())
    self.renderer_combobox.add_activated_callback(self.renderer_activated)
    self.renderer_combobox.set_current_text(self.renderer_id)

    self.set_top_dock(self.renderer_combobox)



  # Show FileOpenDialog and select an image file.
  def file_open(self):
    options = QFileDialog.Options()
    filename, _ = QFileDialog.getOpenFileName(self,"FileOpenDialog", "",
                     "All Files (*);;Image Files (*.png;*jpg;*.jpeg)", options=options)
    if filename:
      self.load_file(filename)

  def load_file(self, filename):
    self.filename = filename
    self.source_image_view.load(filename)
    self.transformed_image_view.load(filename)
    self.transformed_image_view.transform(self.renderer_id)

    self.set_filenamed_title(filename)

  def renderer_activated(self, text):
    print("renderer_activated {} {}".format(text, self.renderer_id))
    self.renderer_id = self.renderers[text]
    self.transformed_image_view.transform(self.renderer_id)


#*************************************************
#
if main(__name__):

  try:
    app_name  = os.path.basename(sys.argv[0])
    applet    = QApplication(sys.argv)

    main_view = MainView(app_name, 40, 40, 800, 500)
    main_view.show ()

    applet.exec_()

  except:
    traceback.print_exc()


Last modified: 6 May 2018
