SOL4Py Samples

#******************************************************************************
#
#  Copyright (c) 2018-2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************

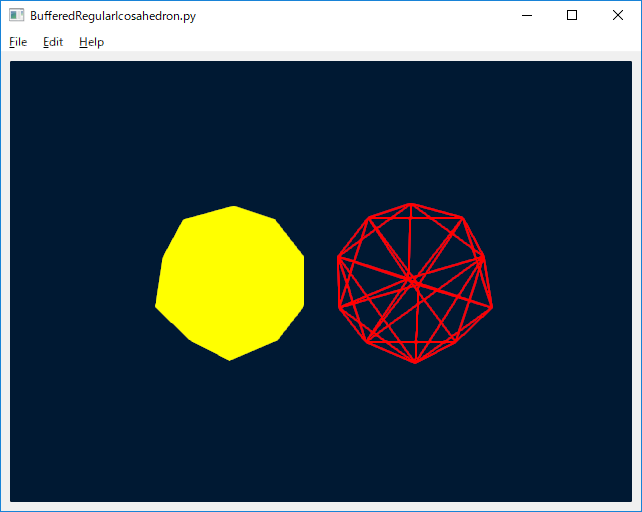

#  BufferedRegularIcosahedron.py

# encoding: utf-8

import sys
import os
import traceback

import traceback
import numpy as np
import math

sys.path.append('../')
from PIL import Image, ImageOps

from SOL4Py.opengl.ZOpenGLMainView import *
from SOL4Py.opengl.ZOpenGLRegularIcosahedron import *
from SOL4Py.openglarb.ZOpenGLBufferedShape import *


class MainView(ZOpenGLMainView):

  ## Inner class starts.
  class OpenGLView(ZOpenGLView):
    ## Constructor
    def __init__(self, parent=None):
      self.parent = parent
      super(ZOpenGLView, self).__init__(parent)


    def  initializeGL(self):
      glMatrixMode(GL_PROJECTION)
      glLoadIdentity()

      glEnable( GL_DEPTH_TEST)
      glFrustum(1 , -1 , -1 , 1 , 1 , 10)
      glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
      #//  gc -> loadIdentity()

      self.hedron = ZOpenGLRegularIcosahedron()

      self.shape = ZOpenGLBufferedShape(self.hedron)


    def paintGL(self):
      glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
      glLoadIdentity()
      glClearColor(0.0, 0.1, 0.2, 1.0)

      #Draw the first shape1.
      glPushMatrix()
      glTranslate(-2.0, 0.0, 1.0)
      gluLookAt(0.0, 20.0, 30.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0)
      glPolygonMode(GL_FRONT_AND_BACK, GL_FILL)
      glColor(1.0, 1.0, 0.0)
      self.shape.draw()
      glPopMatrix()

      glPushMatrix()
      glTranslate(2.0, 0.0, 2.0)
      gluLookAt(0.0, 20.0, 30.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0)

      glPolygonMode(GL_FRONT_AND_BACK, GL_LINE)
      glLineWidth(2.0)
      glColor(1.0, 0.0, 0.0)
      self.shape.draw()

      glPopMatrix()


    def resizeGL(self, w,  h):
      if w == 0 or h == 0:
        return

      glMatrixMode(GL_PROJECTION)
      glLoadIdentity()
      gluPerspective(16.0, w / h, 0.5, 40.0)
      glMatrixMode(GL_MODELVIEW)

  ##--------------------------------------------


  # MainView Constructor
  def __init__(self, title, x, y, width, height):
    super(ZOpenGLMainView, self).__init__(title, x, y, width, height)

    # 1 Create first imageview.
    self.opengl_view = self.OpenGLView(self)

    # 2 Add the image view to a main_layout of this main view.
    self.add(self.opengl_view)

    self.show()


#*************************************************
#
if main(__name__):

  try:
    app_name  = os.path.basename(sys.argv[0])
    applet    = QApplication(sys.argv)

    main_view = MainView(app_name, 40, 40, 640, 480)
    main_view.show ()

    applet.exec_()

  except:
    traceback.print_exc()
