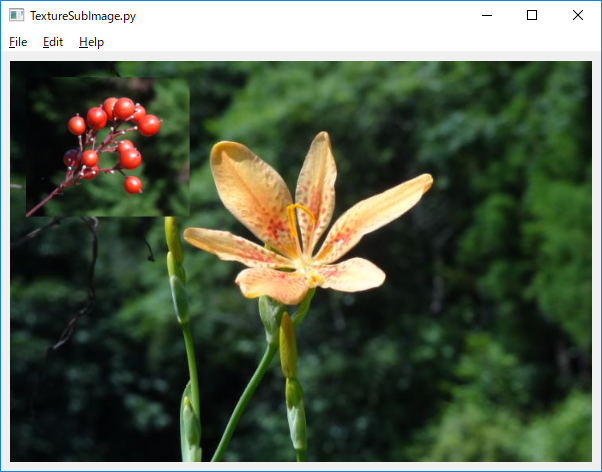

SOL4Py Sample: TextureSubImage

SOL4Py Samples



#******************************************************************************
#
#  Copyright (c) 2018-2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************


#  Texture.py

# encodig: utf-8

import sys
import os
import math
import traceback

import numpy as np

from PyQt5.QtCore    import *
from PyQt5.QtWidgets import *
from PyQt5.QtGui     import *
from PyQt5.QtOpenGL     import *

import OpenGL.GL as gl
from OpenGL.GL import *
from OpenGL.GLU import *

from PIL import Image, ImageOps

#
sys.path.append('../')

from SOL4Py.ZApplicationView import *
from SOL4Py.ZScalableScrolledImageView  import *
from SOL4Py.ZVerticalPane    import *
from SOL4Py.opengl.ZOpenGLImage     import *

class MainView(ZApplicationView):
  ##
  class OpenGLView(QGLWidget):

    def __init__(self, parent=None):
      super(QGLWidget, self).__init__(parent)


    def initializeGL(self):
      glShadeModel(GL_FLAT)
      glEnable(GL_DEPTH_TEST)
      glEnable(GL_CULL_FACE)

      self.createTexture("../images/Flower.png");
      self.setSubImage("../images/Nanten.png", 0, 20, 20);

      glMatrixMode(GL_PROJECTION)
      glLoadIdentity()
      glMatrixMode(GL_MODELVIEW)
      glBindTexture(GL_TEXTURE_2D, 0)


    def createTexture(self, filename):
      self.id = glGenTextures(1);
      glBindTexture(GL_TEXTURE_2D, self.id)
      glPixelStorei(GL_UNPACK_ALIGNMENT,1)

      glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR)
      glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR)
      glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S,     GL_CLAMP)
      glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T,     GL_CLAMP)

      glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_DECAL )

      self.image = ZOpenGLImage(filename)
      w = self.image.width
      h = self.image.height

      glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, w, h, 0, GL_RGBA, GL_UNSIGNED_BYTE, self.image.bytes)


    def setSubImage(self, filename, level, xoffset, yoffset):
      self.subimage = ZOpenGLImage(filename)
      w = self.subimage.width
      h = self.subimage.height

      glTexSubImage2D(GL_TEXTURE_2D,
        level,
        xoffset,
        yoffset,
        w,
        h,
        GL_RGBA,
        GL_UNSIGNED_BYTE,
        self.subimage.bytes);


    def paintGL(self):
      glClear(GL_COLOR_BUFFER_BIT| GL_DEPTH_BUFFER_BIT)
      glClearColor(0.0, 0.0, 0.2, 0.3)
      glLoadIdentity()

      glBindTexture(GL_TEXTURE_2D, self.id)

      glEnable(GL_TEXTURE_2D)

      glPushMatrix()

      glBegin(GL_QUADS)
      glTexCoord2d(0.0, 1.0)
      glVertex3d(-1.0, -1.0,  0.0)
      glTexCoord2d(1.0, 1.0)
      glVertex3d( 1.0, -1.0,  0.0)
      glTexCoord2d(1.0, 0.0)
      glVertex3d( 1.0,  1.0,  0.0)
      glTexCoord2d(0.0, 0.0)
      glVertex3d(-1.0,  1.0,  0.0)
      glEnd()

      glPopMatrix()

      glDisable(GL_TEXTURE_2D)
      glFlush()



    def resizeGL(self, width, height):
      if width == 0 or height == 0:
        return;

      glViewport(0, 0, width, height)
      glMatrixMode(GL_PROJECTION)
      glLoadIdentity()
      #glFrustum(-r, r, -1.0, 1.0, 2.0, 100.0)

      glMatrixMode(GL_MODELVIEW);
      glLoadIdentity()

  ##

  # MainView Constructor
  def __init__(self, title, x, y, width, height):
    super(MainView, self).__init__(title, x, y, width, height)

    # 1 Create first imageview.
    self.opengl_view = self.OpenGLView(self)

    # 2 Add the image view to a main_layout of this main view.
    self.add(self.opengl_view)

    self.show()


#*************************************************
#
if main(__name__):

  try:
    app_name  = os.path.basename(sys.argv[0])
    applet    = QApplication(sys.argv)

    main_view = MainView(app_name, 40, 40, 600, 440)
    main_view.show ()

    applet.exec_()

  except:
    traceback.print_exc()





Last modified:11 Apr. 2019
