SOL4Py Sample: TexturedSphereWithAxisEyeAndLightPositioner

SOL4Py Samples







#******************************************************************************
#
#  Copyright (c) 2018-2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************


#  We have used 'world.topo.bathy.200412.3x5400x2700.jpg' file in the following page.
#
# http:# visibleearth.nasa.gov/view.php?id=73909
#
# December, Blue Marble Next Generation w/ Topography and Bathymetry
# Credit: Reto St?ckli, NASA Earth Observatory

#  We have also used the following Mars map:
#  Owner: Caltech/JPL/USGS
# https:# maps.jpl.nasa.gov/pix/mar0kuu2.jpg

#  TexturedSpheresRotationByKeyInput.py

# encodig: utf-8

import sys

#
sys.path.append('../')

from SOL4Py.opengl.ZOpenGLMainView import *
from SOL4Py.opengl.ZOpenGLLight import *
from SOL4Py.opengl.ZOpenGLMaterial import *
from SOL4Py.opengl.ZOpenGLTexturedSphere import *
from SOL4Py.opengl.ZOpenGLSphere import *
from SOL4Py.opengl.ZOpenGLQuadric import *
from SOL4Py.opengl.ZOpenGLMateria import *
from SOL4Py.ZLabeledSlider import *
from SOL4Py.ZEyePositioner import *
from SOL4Py.ZLightPositioner import *


class MainView(ZOpenGLMainView):
  ##--------------------------------------------
  class OpenGLView(ZOpenGLView):

    def __init__(self, parent, angle, axis, eye, light):
      self.parent = parent
      super(ZOpenGLView, self).__init__(parent)
      self.angle  = angle
      self.axis   = axis
      self.veye   = eye
      self.vlight = light

    def initializeGL(self):
      #glShadeModel(GL_FLAT)
      #glEnable(GL_DEPTH_TEST)
      #glMatrixMode(GL_PROJECTION)
      #glLoadIdentity()
      #glMatrixMode(GL_MODELVIEW)

      self.light =   ZOpenGLLight(GL_LIGHT0)

      #self.material = ZOpenGLMaterial(GL_FRONT)
      self.sphere   = None

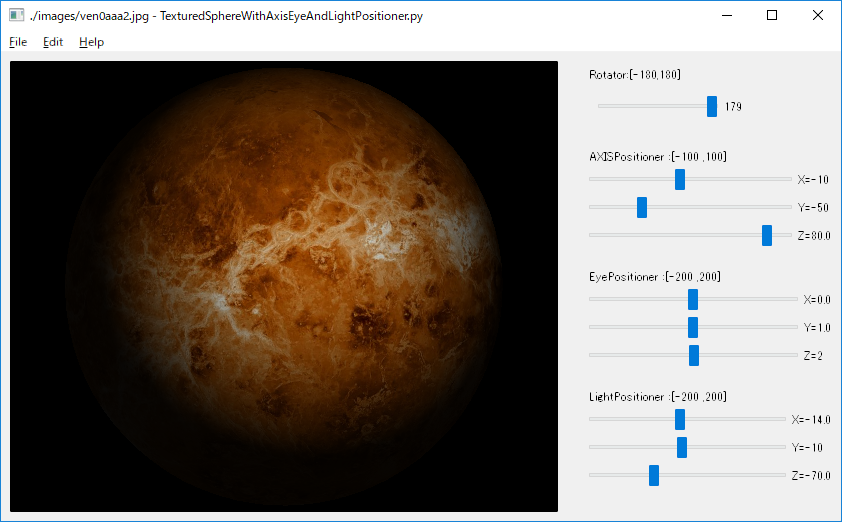

      filename = "./images/ven0aaa2.jpg";

      self.createTexture(filename)
      self.parent.set_filenamed_title(filename)


    def paintGL(self):
      glClear(GL_COLOR_BUFFER_BIT| GL_DEPTH_BUFFER_BIT)
      glClearColor(0.0, 0.0, 0.0, 0.0)
      glLoadIdentity()

      #gluLookAt(0.0, 2.0, -1.0, 0.0, 0.0, 0.0, 0.0, 30.0, 0.0);
      gluLookAt(self.veye[0], self.veye[1], self.veye[2], 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

      glEnable(GL_LIGHTING)
      self.light.position(self.vlight[0], self.vlight[1], self.vlight[2], 0.0);

      glTranslatef(0.0, 0.0, 0.0)
      glRotate(self.angle, self.axis[0], self.axis[1], self.axis[2]);
      #self.material.diffuse(0.0, 0.0, 1.0, 1.0);

      #self.material.specular(1.0, 1.0, 1.0, 0.0);
      #self.material.shininess(100.0);

      if self.sphere != None:
        self.sphere.draw()


    def resizeGL(self, width, height):
      if width == 0 or height == 0:
        return
      glViewport(0, 0, width, height)
      glMatrixMode(GL_PROJECTION)
      glLoadIdentity()
      glFrustum(width / height, -width / height, -1.0, 1.0, 2.0, 30.0);
      glMatrixMode(GL_MODELVIEW)


    def createTexture(self, filename):
      self.sphere = ZOpenGLTexturedSphere(filename, None, 1.0, 40, 40);

    def setAngle(self, angle):
      self.angle = angle
      self.update()


    def setAxisPosition(self, axis):
      self.vaxis = axis
      self.update()


    def setEyePosition(self, eye):
      self.veye = eye
      self.update()


    def setLigtPosition(self, light):
      self.vlight = light
      self.update()

  ##--------------------------------------------
  # class variables
  MIN_ANGLE   = -180
  MAX_ANGLE   = 180
  CUR_ANGLE   = 128
  AXIS_RANGE  = [-100, 100]
  AXIS_POS    = [-10,  -50, 80.0]
  EYE_RANGE   = [-200, 200]
  EYE_POS     = [0.0, 1.0, 2]
  LIGHT_RANGE = [-200, 200]
  LIGHT_POS   = [-14.0, -10, -70.0]


  # MainView Constructor
  def __init__(self, title, x, y, width, height):
    super(ZOpenGLMainView, self).__init__(title, x, y, width, height)

    # 1 Create first imageview.
    self.opengl_view = self.OpenGLView(self, self.CUR_ANGLE,
                          self.AXIS_POS, self.EYE_POS, self.LIGHT_POS)

    # 2 Add the image view to a main_layout of this main view.
    self.add(self.opengl_view)

    # 3 Add callbacks to positioners.
    self.rotator.add_value_changed_callback(self.angle_changed)
    self.axisPositioner.add_value_changed_callback(self.axis_changed)
    self.eyePositioner.add_value_changed_callback  (self.eye_changed)
    self.lightPositioner.add_value_changed_callback(self.light_changed)

    self.show()

  # Add control pane to MainView
  def add_control_pane(self, fixed_width=270):
    self.vpane = ZVerticalPane(self, fixed_width)

    self.rotator       = ZLabeledSlider(self, "Rotator", False,
                               self.MIN_ANGLE, self.MAX_ANGLE, self.CUR_ANGLE)

    self.axisPositioner = ZPositioner(self, "AXISPositioner",["X", "Y", "Z"],
                               self.AXIS_RANGE, self.AXIS_POS)

    self.eyePositioner   = ZEyePositioner(self, "EyePositioner", ["X", "Y", "Z"],
                               self.EYE_RANGE, self.EYE_POS)

    self.lightPositioner = ZLightPositioner(self, "LightPositioner", ["X", "Y", "Z"],
                               self.LIGHT_RANGE, self.LIGHT_POS)

    self.vpane.add(self.rotator)
    self.vpane.add(self.axisPositioner)

    self.vpane.add(self.eyePositioner)
    self.vpane.add(self.lightPositioner)

    self.set_right_dock(self.vpane)


  def angle_changed(self, value):
    self.rotator.set_value_text(str(value))
    self.opengl_view.setAngle(value)


  def axis_changed(self, v):
    values = self.axisPositioner.get_values()
    self.opengl_view.setAxisPosition(values)


  def eye_changed(self, v):
    values = self.eyePositioner.get_values()
    self.opengl_view.setEyePosition(values)


  def light_changed(self, v):
    values = self.lightPositioner.get_values()
    self.opengl_view.setLigtPosition(values)


  # Show FileOpenDialog and select an image file.
  def file_open(self):
    options = QFileDialog.Options()
    filename, _ = QFileDialog.getOpenFileName(self,"FileOpenDialog", "",
                     "All Files (*);;Image Files (*.png;*jpg;*.jpeg)", options=options)
    if filename:
      self.load_file(filename)


  def load_file(self, filename):
    self.opengl_view.createTexture(filename)
    self.set_filenamed_title(filename)


#*************************************************
#
if main(__name__):

  try:
    glutInit(sys.argv)

    app_name  = os.path.basename(sys.argv[0])
    applet    = QApplication(sys.argv)

    main_view = MainView(app_name, 40, 40, 840, 490)
    main_view.show ()

    applet.exec_()

  except:
    traceback.print_exc()


Last modified: 2 Apr. 2019
