SOL4Py Samples

#******************************************************************************
#
#  Copyright (c) 2018 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************


# 2018/09/18

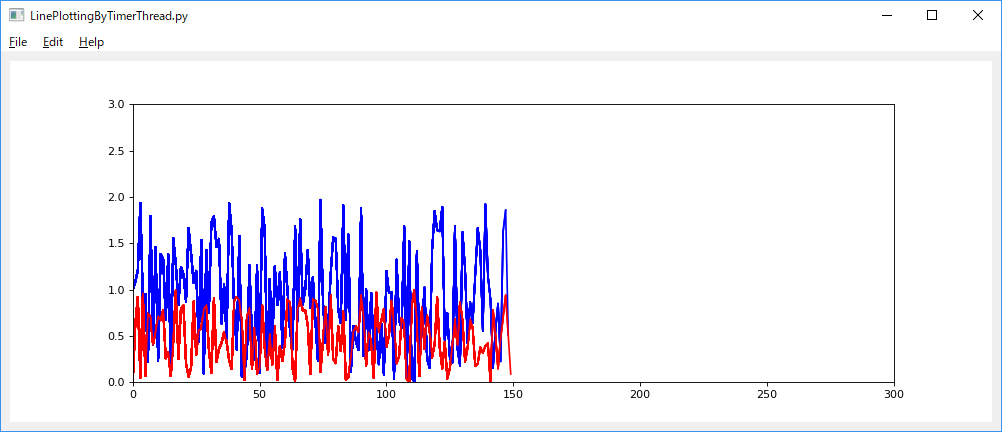

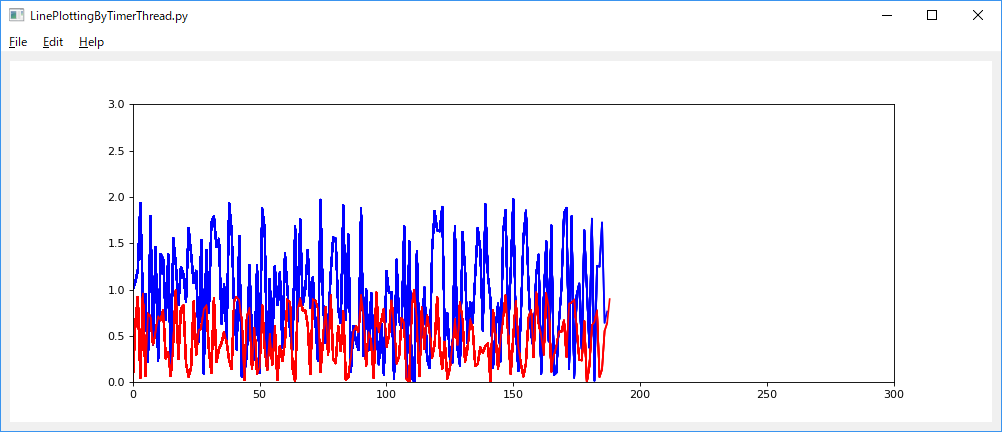

# LinePlottingByTimerThread.py
#

import sys
import signal
import numpy as np
import traceback
import matplotlib
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
import threading
import time

from numpy.random import rand

from PyQt5 import QtCore, QtWidgets, QtGui

from PyQt5.QtWidgets import *
from PyQt5.QtGui     import *
from PyQt5.QtCore    import *

sys.path.append('../')

from SOL4Py.ZApplicationView  import *

from SOL4Py.ZPlottingArea  import *

class MainView(ZApplicationView):

  ## Inner class starts.
  class ModelingThread(threading.Thread):
    # Constructor
    def __init__(self, interval, view, stride, xmax):
      threading.Thread.__init__(self)
      self.view = view
      self.tsleep = interval
      self.xs = []
      self.ys = []
      self.ys2 = []
      self.x = 0.0
      self.stride = stride
      self.xmax = xmax
      self.xs.append(self.x)
      self.ys.append(0.0)
      self.ys2.append(1.0)

      self.looping = True


    def run(self):
      print("Thread started")

      while self.x < self.xmax:
        if self.looping == False:
           break
        time.sleep(self.tsleep)
        self.x = self.x + self.stride
        self.xs.append(self.x)
        self.ys.append( np.random.rand(1))
        self.ys2.append(np.random.rand(1)*2.0 )
        # Update self.view since the model data self.x and self.y have been updated.
        self.view.update_plotter(self.xs, self.ys, 'red')
        self.view.update_plotter(self.xs, self.ys2, 'blue')
        #self.view.update_plotter(self.x, np.random.rand(1))

      print("Thread terminated")

    def stop(self):
      self.looping = False
  ## Inner class ends.


  ##
  # Constructor

  def __init__(self, title, x, y, width, height):
    super(MainView, self).__init__(title, x, y, width, height)

    self.sleep = 0.1
    self.xmax  = 300
    self.stride = 1.0

    self.plotter = ZPlottingArea(self, width, height)

    self.ax= self.plotter.add(111)
    self.ax.set_xlim(0, self.xmax)
    self.ax.set_ylim(0, 3.0)

    self.add(self.plotter)
    self.show()

    # Create a thread and start it.
    self.thread = self.ModelingThread(self.sleep, self, self.stride, self.xmax)
    self.thread.start()


  def file_save(self):
    try:
      abs_current_path = os.path.abspath(os.path.curdir)
      files_types = "PDF (*.pdf);;PGF (*.pgf);;PNG (*.png);;PS (*.ps);;EPS (*.eps);;RAW (*.raw);;RGBA (*.rgba);;SVG (*.svg);;SVGZ (*.svgz)"
      filename, _ = QFileDialog.getSaveFileName(self, "FileSaveDialog",
                             os.path.join(abs_current_path, "figure.png"),
                             files_types)
      if filename:
        plt.savefig(filename)
    except:
      traceback.print_exc()


  def update_plotter(self, xs, ys, color):
    self.ax.plot(xs, ys, color=color,  linestyle='solid')
    self.plotter.draw()


  def file_quit(self):
    #print("file_quitt")
    self.thread.stop()
    self.thread.join()
    print("Thread stopped")
    self.terminated = True
    self.close()

  def closeEvent(self, ce):
    # Call file_quit to terminate self.thread
    self.file_quit()


##############################################################
#
#
if main(__name__):

  try:
    name   = sys.argv[0]
    applet = QApplication(sys.argv)

    mainv = MainView(name, 40, 40, 1000, 400)
    mainv.show()

    applet.exec_()

  except:
    traceback.print_exc()
  else:
    pass

  finally:
   pass
