4.21 How to blur an image in OpenCV?

The following MedianBlur is a simple example to draw an original image and a blurred image in OriginalImageView and BlurredImageView which are subclasses derived from OpenCVNamedWindow. In those view classes we use cv::imread and cv::imshow functions of OpenCV to read an image file, and show a cv::Mat image.
The left pane is an original image, and the right pane is a blurred image created by a KernelSize trackbar control.
The original image used here is an image created by a sample program MultiJPGTexturedCubeRotationByKeyInput of SOL9 OpenGL library.

This is just a typical example of SOL9 OpenCV GUI coding style to use OpenCVApplication, OpenCVApplicationView and OpenCVNamedWindow.

This is the case of using one TrackBar control, but you can put any Windows common controls in the client area of a toplevel view class derived from OpenCVApplicationView with a menubar.

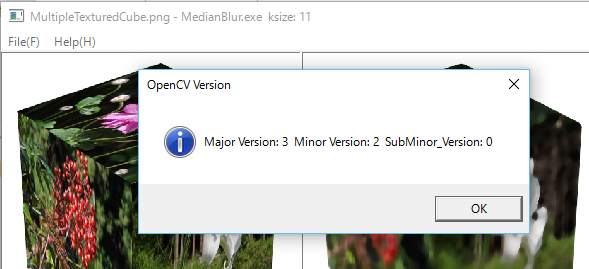

You can also show a OpenCV version MessageBox by selecting a menu item Version of Help pulldown menu as shown below.








/*
 * MedianBlur.cpp
 * Copyright (c) 2017 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */

//2017/03/30
// See: "http://docs.opencv.org/2.4/modules/imgproc/doc/filtering.html?highlight=gaussianblur#gaussianblur"

#define _CONSOLE_

#include <sol/ModuleFileName.h>
#include <sol/Label.h>
#include <sol/TrackBar.h>
#include <sol/FileDialog.h>
#include <sol/opencv/OpenCVApplicationView.h>
#include <sol/opencv/OpenCVNamedWindow.h>

namespace SOL {

class MainView :public OpenCVApplicationView {

private:
  ////////////////////////////////////////////////////////////////////////////////////////
  //Inner class starts.
  class OriginalImageView :public OpenCVNamedWindow {
  private:
    cv::Mat originalImage;

    void display()
    {
      show(originalImage);
    }

  public:
    OriginalImageView(View* parent, const char* name, Args& args)
    :OpenCVNamedWindow(parent, name, args)
    {
      try {
        const char* filename = (const char*)args.get(XmNimageFileName);
        int imageLoadingFlag = args.get(XmNimageLoadingFlag);
        loadImage(filename, imageLoadingFlag);
      } catch (SOL::Exception ex) {
        caught(ex);
      }
    }

    ~OriginalImageView()
    {
    }

    void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR)
    {
      try {
        originalImage = readImage(filename, imageLoadingFlag);
      refresh();

      } catch (Exception& ex) {
        caught(ex);
      }
    }

  };

  class BlurredImageView :public OpenCVNamedWindow {
  private:
    cv::Mat originalImage;
    cv::Mat blurredImage;

    void display()
    {
      show(blurredImage);
    }

  public:
    BlurredImageView(View* parent, const char* name, Args& args)
    :OpenCVNamedWindow(parent, name, args)
    {
      try {
        const char* filename = (const char*)args.get(XmNimageFileName);
        int imageLoadingFlag = args.get(XmNimageLoadingFlag);
        loadImage(filename, imageLoadingFlag);
      } catch (SOL::Exception ex) {
        caught(ex);
      }
    }

    ~BlurredImageView()
    {
    }

    void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR)
    {
      try {
        originalImage = readImage(filename, imageLoadingFlag);
        blurredImage = originalImage;
      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void blur(int ksize)
    {
      //void blur(const Mat& src, Mat& dst, Size ksize)
      cv::Mat newImage = cv::Mat::zeros(originalImage.size(), originalImage.type() );
      cv::medianBlur(originalImage, newImage, ksize);
      blurredImage = newImage;
      refresh();
    }
  };
  //Inner class ends.
  ////////////////////////////////////////////////////////////////////////////////////////

  void updateCaption(int ksize)
  {
    char caption[1024];
    sprintf_s(caption, CountOf(caption), "%s - %s  ksize: %d ", (const char*)imageFile,
      getAppName(),
      ksize);
    setText(caption);
  }

  StringT<char>        imageFile;

  SmartPtr<OriginalImageView>  originalImage;
  SmartPtr<BlurredImageView> blurredImage;

  SmartPtr<Label>       ksizeLabel;
  SmartPtr<TrackBar>    ksizeTrackBar;
  FileDialog            filedlg;
  Profile               profile;

  //Horizontal Scroll event by TrackBars
  long horizScroll(Event& event)
  {
    int ksize = ksizeTrackBar->getPos();

    ksize = (ksize/2)*2 +1;

    blurredImage -> blur(ksize);
    updateCaption(ksize);

    return 1;
  }

  void resize(int w, int h)
  {
    if (originalImage && blurredImage &&
          ksizeTrackBar) {
      originalImage      -> reshape(2,           2,  (w-140)/2-1,    h-4);
      blurredImage       -> reshape((w-140)/2+1, 2,  (w-140)/2-1,    h-4);
      ksizeLabel      -> reshape(w-135 + 10, 10, 120,30);
      ksizeTrackBar   -> reshape(w-135 + 10, 40, 120, 60);
    }
  }

  void confirm(Action& action)
  {
    int rc = MessageBox(NULL, "Are you sure to close this window?", "Confirmation",
                MB_OKCANCEL|MB_ICONEXCLAMATION);
    if (rc == IDOK) {
      exit(action);
    }
  }

public:
  MainView(OpenCVApplication& applet, const char* name, Args& args)
  :OpenCVApplicationView(applet, name, args)
  {
    try {
      imageFile = "..\\images\\flower.png";

      int  imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
      Args ar;
      ar.set(XmNimageFileName, imageFile);
      ar.set(XmNimageLoadingFlag, imageLoadingFlag);
      originalImage = new OriginalImageView(this, "cvwindow1", ar);

      ar.reset();
      ar.set(XmNimageFileName, imageFile);
      ar.set(XmNimageLoadingFlag, imageLoadingFlag);
      blurredImage = new BlurredImageView(this, "cvwindow2", ar);

      ar.reset();
      ksizeLabel = new Label(this, "KernelSize [0, 31]", ar);

      int ksize = 10;
      int sigma = 12;
      ar.reset();
      ar.set(XmNstyle, TBS_AUTOTICKS | TBS_ENABLESELRANGE);
      ksizeTrackBar = new TrackBar(this, "", ar);
      ksizeTrackBar -> setRange(0, 31);
      ksizeTrackBar -> setPos(ksize);

      addCallback(XmNmenuCallback, IDM_EXIT, this,
          (Callback)&MainView::confirm, NULL);

      ksize = (ksize/2)*2 +1;
      blurredImage -> blur(ksize);

      updateCaption(ksize);

      ar.reset();
      ar.set(XmNfilter, FileDialog::getImageFilesFilter());
      filedlg.create(this, "OpenFile", ar);

    } catch (Exception& ex) {
      caught(ex);
    }
  }

  ~MainView()
  {
  }

  void saveFileFolder(const char* filePath)
  {
    if (strlen(filePath)>0) {

      Folder folder(filePath);
      String dirOnly = "";

      folder.getDirectory(dirOnly);
      const char* dir = (const char*)dirOnly;
      profile.setFileFolder(dir);
    }
  }

  void open(Action& action)
  {
    Args ar;

    char dir[MAX_PATH] = { 0 };
    if (profile.getFileFolder(dir, CountOf(dir))) {
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    try {
      if(filedlg.open()) {

        const char* filename = filedlg.getFileName();
        saveFileFolder(filename);

        originalImage -> loadImage(filename);
        blurredImage  -> loadImage(filename);
        const char* fname = strrchr(filename, '\\');
        if (fname) {
          fname++;
        }
        imageFile = fname;

        post(WM_HSCROLL, 0, 0);
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }
};
}

//
void main(int argc, char** argv)
{
  try {
    ModuleFileName module(argv[0]);

    const char*  name = module.getAppName();

    OpenCVApplication applet(name, argc, argv);

    Args args;
    args.set(XmNwidth,  1000);
    args.set(XmNheight, 400);
    MainView view(applet, name, args);
    view.realize();

    applet.run();

  } catch (SOL::Exception& ex) {
    caught(ex);
  }
}
