SOL9 Sample: TransparentButton

SOL9 2.0 Samples

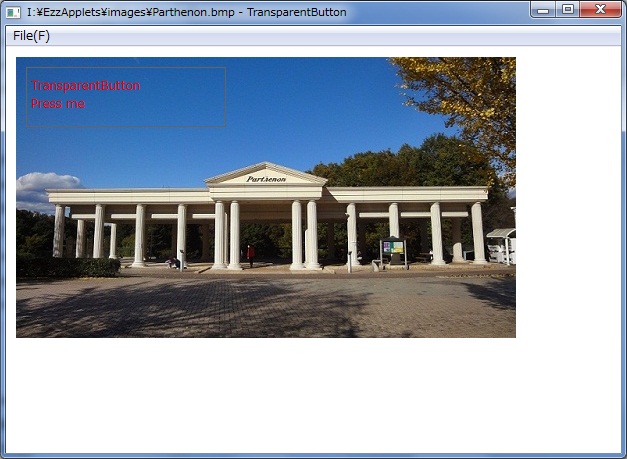

1 Screenshot


2 Source code

/*
 * TransparentButton.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


// SOL++2000
// 2000.02.18
// 2012/07/06

#define COMMONCONTROLS_V6

#include <sol\ApplicationView.h>
#include <sol\DIBitmapFile.h>

#include <sol\DIBSection.h>
#include <sol\PaintDC.h>
#include <sol\ClientDC.h>
#include <sol\FileDialog.h>
#include <sol\TransparentButton.h>
#include "resource.h"
#include <sol\stdio.h>

namespace SOL {

class AppView :public ApplicationView {
private:
  TransparentButton transb;
  DIBSection  loadedImage;
  FileDialog    filedlg;

public:
  /**
   * Constructor
   */
  AppView(Application& applet, const TCHAR* name, Args& args)
  :ApplicationView(applet, name,
    args.set(XmNstyle, (ulong)(WS_VSCROLL|WS_HSCROLL) ))
  {
    Args ar;
    ar.set(XmNx,      20);
    ar.set(XmNy,      20);
    ar.set(XmNwidth,  200);
    ar.set(XmNheight, 60);
    ar.set(XmNtextColor, RGB(0xff, 0, 0));
    ar.set(XmNtextAlignment, DT_LEFT); //DT_CENTER);

    ar.set(XmNstyle,  (ulong)WS_BORDER);
    ar.set(XmNcursor, (ulong)LoadCursor(NULL, IDC_HAND));
    transb.create(this,
      //  _T("Press me"),
      _T("TransparentButton\nPress me"),
      ar);
    transb.disable();
    transb.enable();

    transb.addCallback(XmNactivateCallback, this,
      (Callback)&AppView::activate, NULL);


    addEventHandler(WM_PAINT, this,
      (Handler)&AppView::paint, NULL);

    addEventHandler(WM_MOUSEMOVE, this,
      (Handler)&AppView::mouseMove, NULL);

    addCallback(XmNmenuCallback, ID_OPEN, this,
      (Callback)&AppView::open, NULL);
    addCallback(XmNmenuCallback, ID_EXIT, this,
      (Callback)&AppView::exit, NULL);

    TCHAR dir[_MAX_PATH];

    ::GetWindowsDirectory(dir, CountOf(dir));
    TCHAR* p = (TCHAR*)strchr(dir, (TCHAR)'\\');
    if (p) {
      p++;
      *p = '\0';
    }

    ar.reset();
    ar.set(XmNdirectory, dir);
    ar.set(XmNfilter, _T("Bitmap (*.bmp)\0 *.bmp\0"));
    filedlg.create(this, _T("FileSelection"), ar);
  }

public:
  ~AppView()
  {

  }

private:
  void activate(Action& action)
  {
    //Printf("AppView::Arm called \r\n");
    showMessageDialog(_T("SOL9"), _T("Transparent Button has been clicked"));
  }

private:
  void open(Action& action)
  {
    TCHAR dir[MAX_PATH];
    memset(dir, (TCHAR)0, CountOf(dir));
    if (restoreFileFolder(dir, CountOf(dir))) {
      Args ar;
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    if(filedlg.open() == IDOK) {
      TCHAR* filename = filedlg.getFileName();
      TCHAR title[1024];
      ClientDC cdc(this);

      //Load an original image.
      loadedImage.load(cdc, filename);

      //2008/09/16
      saveFileFolder(filename);
      invalidate((RECT*)NULL);

      update();

      _stprintf_s(title, CountOf(title), _T("%s - TransparentButton"), filename);
      setText(title);
    }
  }

private:
  long paint(Event& event)
  {
    PaintDC pdc(this);
    loadedImage.draw(pdc, 10, 10);

    return 0L;
  }

  long  mouseMove(Event& event)
  {
    //getMousePosition();
    POINT p;
    getCursorPos(&p);
    TCHAR pos[1024];
    _stprintf_s(pos, CountOf(pos), _T("POS x=%d y=%d"), p.x, p.y);
    setText(pos);
    return 0;
  }

};

}
//
void  Main(int argc, TCHAR** argv)
{
  ModuleFileName module(argv[0]);
  const TCHAR* name = module.getFileName();
  try {
    Application applet(name, argc, argv);

    Args args;
    //args.set(XmNclassStyle, NO_REDRAW);
    AppView appView(applet, name, args);
    appView.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  } catch (...) {
    caught(UnknownException());
  }
}


Last modified: 1 Feb 2017

Copyright (c) 2017 Antillia.com ALL RIGHTS RESERVED.
