SOL9 Sample: Direct3D10FullScreen

SOL9 2.0 Samples

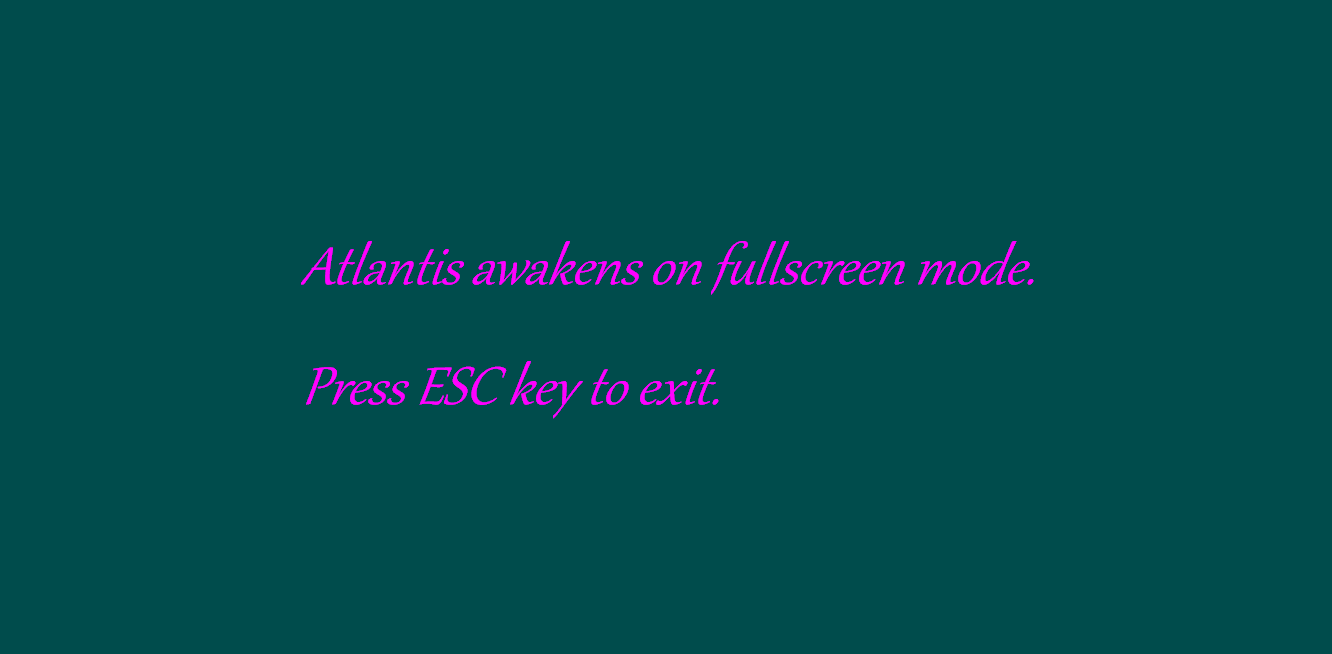

1 Screenshot


2 Source code

/*
 * Direct3D10FullScreen.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


// 2015/10/20
// 2017/01/28 Updated to use ModuleFileName class and caught macro.

#pragma warning(disable : 4005)
#pragma warning(disable : 4838)

#define COMMONCONTROLS_V6

#include <sol/SystemMetrics.h>

#include <sol/direct3d10/DirectX3D10FullScreen.h>
#include <sol/direct3d10/Direct3D10RenderTargetView.h>
#include <sol/direct3d10/Direct3D10DepthStencilView.h>

#include <sol/direct3d10/Direct3D10Texture2D.h>
#include <sol/direct3d10/Direct3DX10Font.h>
#include <sol/direct3d10/D3D10Texture2DDesc.h>
#include <sol/direct3d10/D3D10DepthStencilViewDesc.h>

#include "resource.h"

namespace SOL {

class MainView :public DirectX3D10FullScreen {
private:
  SmartPtr<Direct3D10RenderTargetView>  renderTargetView;
  SmartPtr<Direct3D10DepthStencilView>  depthStencilView;

  SmartPtr<Direct3DX10Font>             font;


public:
  void deleteViews()
  {
    renderTargetView = NULL;
    depthStencilView = NULL;
  }

  virtual void createViews()
  {
    int width  = 0;
    int height = 0;
    getClientSize(width, height);

    try {
      Direct3D10Device*   d3dDevice  = getD3D10Device();
      DirectXGISwapChain* swapChain = getSwapChain();

      d3d10Device ->setOMRenderTargets(0, NULL, NULL);

      //1 Create an instance of Direct3D10RenderTargetView
      Direct3D10Texture2D renderTargetViewTexture(*swapChain); ;

      renderTargetView = new Direct3D10RenderTargetView(*d3d10Device, renderTargetViewTexture, NULL);

      //2 Create a temporary depthDesc(D3D10Texture2DDesc).
      D3D10Texture2DDesc depthDesc;
      depthDesc.width(width);
      depthDesc.height(height);
      depthDesc.mipLevels(1);
      depthDesc.arraySize(1);
      depthDesc.format(DXGI_FORMAT_D32_FLOAT);
      depthDesc.sampleDescCount(1);
      depthDesc.sampleDescQuality(0);
      depthDesc.usage(D3D10_USAGE_DEFAULT);
      depthDesc.bindFlags(D3D10_BIND_DEPTH_STENCIL);

      //3 Create a temporary depthStencilTexture(Direct3D10Texture2D) from texture2DDesc.
      Direct3D10Texture2D depthStencilTexute(*d3d10Device, depthDesc);

      //4 Create a temporary depthStencilViewDesc(D3D10DepthStencilViewDesc)
      D3D10DepthStencilViewDesc depthStencilViewDesc(DXGI_FORMAT_D32_FLOAT, D3D10_DSV_DIMENSION_TEXTURE2D);

      //5 Create an instance of Direct3DDepthStencilView from depthStencilTexture and depthStencilViewDesc
      depthStencilView = new Direct3D10DepthStencilView(*d3d10Device, depthStencilTexute, depthStencilViewDesc);


      ID3D10RenderTargetView* targetView   = *renderTargetView;
      //6 Set renderTargetView and depthStencilView to id3d10Device
      d3d10Device ->setOMRenderTargets(1, &targetView, *depthStencilView);

    } catch (Exception& ex) {
      caught(ex);
    }
  }

  virtual void initialize()
  {
    try {
      Direct3D10Device* d3d10Device = getD3D10Device();
      DirectXGISwapChain* swapChain = getSwapChain();
      //swapChain ->setFullscreenState(TRUE, NULL);
      //1 Create Direct3D10Font to draw a text string.
      Args args;
      args.set(XmNheight, 120);
      args.set(XmNwidth,   0);
      args.set(XmNweight, FW_NORMAL);
      args.set(XmNmipLevels, 1);
      args.set(XmNitalic, TRUE); //FALSE);
      args.set(XmNcharSet, DEFAULT_CHARSET);
      args.set(XmNoutputPrecision, OUT_DEFAULT_PRECIS);
      args.set(XmNquality, DEFAULT_QUALITY);
      args.set(XmNpitchAndFamily, DEFAULT_PITCH | FF_DONTCARE);
      args.set(XmNfaceName, _T("Gabriola"));
      font = new Direct3DX10Font(*d3d10Device, args);

      //2 Create rendarTargetView and depthStencilView.
      createViews();

    } catch (Exception& ex) {
      caught(ex);
    }
  }

  void  drawText(const TCHAR* text)
  {
    try {
      RECT r;
      getClientRect(&r);
      int width  = r.right - r.left;
      int height = r.bottom - r.top;

      RECT rc;
      font->drawText(NULL, text, -1, &rc, DT_CALCRECT |DT_LEFT,
          D3DXCOLOR(1.0, 1.0, 1.0, 1.0));

      int rcw = rc.right - rc.left;
      int rch = rc.bottom - rc.top;

      r.top    = (height- rch)/2;
      r.bottom = r.bottom -(height -rch)/2;
      r.left   = (width - rcw)/2;
      r.right  = r.right - (width - rcw)/2;

      font -> drawText(NULL, text, -1, &r, DT_LEFT, D3DXCOLOR(1.0, 0.0, 1.0, 1.0));

    } catch (Exception& ex) {
      caught(ex);
    }
  }

  virtual void display()
  {
    try {
      Direct3D10Device*  d310Device = getD3D10Device();
      DirectXGISwapChain* swapChain = getSwapChain();

      if (renderTargetView && depthStencilView) {

        renderTargetView -> clear(D3DXCOLOR(0.0f, 0.3f, 0.3f, 0.0f));
        depthStencilView -> clear();

        const TCHAR* text = _T("Atlantis awakens on fullscreen mode.\r\nPress ESC key to exit.");
        drawText(text);
      }
      swapChain -> present();

    } catch (Exception& ex) {
      caught(ex);
    }
  }

  virtual void keyDown(Event& event)
  {
    WPARAM wparam = event.getWParam();
    if (wparam == VK_ESCAPE) {
      DirectXGISwapChain* swapChain = getSwapChain();
      swapChain ->setFullscreenState(FALSE, NULL);
      Action action;
      exit(action);
    }
  }

  virtual void resize(int width, int height)
  {
    Direct3D10Device*   device = getD3D10Device();
    DirectXGISwapChain* swapChain = getSwapChain();
    if (device           == NULL &&
        swapChain        == NULL &&
        renderTargetView == NULL &&
        depthStencilView == NULL) {
        return ;
    }

    try {

      device ->setOMRenderTargets(0, NULL, NULL);
      // 1 Delete already existing rendarTargetView and depthStencilView.
      deleteViews();

      // 2 ResizeBuffers swapChain(IDXGISwapChain)
      swapChain -> resizeBuffers(width, height);

      // 3 Recreate rendarTargetView and depthStencilView.
      createViews();

      // 4 Set fullscreen state.
      //swapChain ->setFullscreenState(TRUE, NULL);

      // 5 SetViewPort
      setViewPort(width, height);

    } catch (Exception& ex) {
      caught(ex);
    }
  }

public:
  /**
   * Constructor
   */
  MainView(Application& applet, const TCHAR* name, Args& args)
  :DirectX3D10FullScreen(applet, name,
                 args.set(XmNstyle, (ulong)WS_CLIPCHILDREN) )
  {
    //restorePlacement();
    postResizeRequest();
  }

public:
  ~MainView()
  {
  }
};

}


//////////////////////////////////////////////
//
void  Main(int argc, TCHAR** argv)
{
  ModuleFileName module(argv[0]);
  const TCHAR* appClass =  module.getAppName();
  try {

    Application applet(appClass, argc, argv);
    SystemMetrics metrics;
    int width = metrics.fullScreenWidth();
    int height = metrics.fullScreenHeight();
    Args args;
    args.set(XmNwidth,  width);
    args.set(XmNheight, height);
    MainView mainView(applet, appClass, args);

    mainView.realize();

    applet.run();
  } catch (Exception& ex) {
    caught(ex);
  }
}


Last modified: 1 Feb 2017
