SOL9 Sample: Direct3DX11RotatingLightColorsTorusEffect

SOL9 2.0 Samples

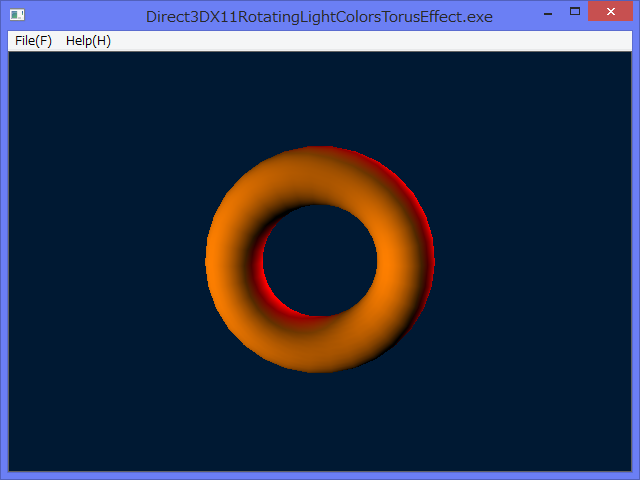

1 Screenshot


2 Source code

/*
 * Direct3DX11RotatingLightColorsTorusEffect.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


// 2016/02/10
// 2015/03/02 Updated to use XMMatrix class instead of XMMATRIX.
// 2017/01/17 Updated display method to draw a true torus even if the internal window was resized.
// 2017/01/28 Updated to use ModuleFileName class and caught macro.

#pragma warning(disable : 4005)
#pragma warning(disable : 4838)

#define COMMONCONTROLS_V6

#include <sol/TickCounter.h>

#include <sol/direct3d11/DirectX3D11MainView.h>
#include <sol/direct3d11/DirectX3D11View.h>
#include <sol/direct3d11/Direct3D11DeferredContext.h>

#include <sol/direct3d11/Direct3D11RenderTargetView.h>
#include <sol/direct3d11/Direct3D11DepthStencilView.h>

#include <sol/direct3d11/Direct3D11Texture2D.h>

#include <sol/direct3d11/D3D11Texture2DDesc.h>
#include <sol/direct3d11/D3D11DepthStencilViewDesc.h>

#include <sol/direct3d11/Direct3DX11EffectModel.h>
#include <sol/direct3d11/Direct3DX11EffectTechnique.h>
#include <sol/direct3d11/Direct3DX11EffectPass.h>

#include <sol/direct3d11/Direct3DX11EffectMatrixVariable.h>
#include <sol/direct3d11/Direct3D11RasterizerState.h>

#include <sol/direct3d11/Direct3D11InputLayout.h>
#include <sol/direct3d11/D3D11InputElements.h>
#include <sol/direct3d11/Direct3DX11Torus.h>

#include "resource.h"

namespace SOL {

class MainView :public DirectX3D11MainView {

private:

  //////////////////////////////////////////////
  //Inner class starts
  class SimpleView : public DirectX3D11View {
  private:
    SmartPtr<Direct3D11RenderTargetView>  renderTargetView;
    SmartPtr<Direct3D11DepthStencilView>  depthStencilView;
    SmartPtr<Direct3D11RasterizerState>   rasterizerState;
    SmartPtr<Direct3DX11EffectModel>      model;
    SmartPtr<Direct3DX11Torus>            torus;
    SmartPtr<Direct3D11InputLayout>       inputLayout;

    XMMatrix                     world;
    XMMatrix                     view;
    XMMatrix                     projection;

    StringT<TCHAR>               directory;

    float                        angle;

  public:
    void deleteViews()
    {
      Direct3D11ImmediateContext* d3d11ImmediateContext = getD3D11ImmediateContext();

      d3d11ImmediateContext ->setOMRenderTargets(0, NULL, NULL);
        renderTargetView = NULL;
        depthStencilView = NULL;
    }

    virtual void createViews()
    {
      int width  = 0;
      int height = 0;

      validateClientSize(width, height);

      try {
        Direct3D11Device*   d3d11Device  = getD3D11Device();
        DirectXGISwapChain* swapChain = getSwapChain();
        Direct3D11ImmediateContext* d3d11ImmediateContext = getD3D11ImmediateContext();

        d3d11ImmediateContext ->setOMRenderTargets(0, NULL, NULL);

        //1 Create an instance of Direct3D11RenderTargetView
        Direct3D11Texture2D renderTargetViewTexture(*swapChain); ;
        renderTargetView = new Direct3D11RenderTargetView(*d3d11Device, renderTargetViewTexture, NULL);

        //2 Create a temporary depthDesc(D3D11Texture2DDesc).
        D3D11Texture2DDesc depthDesc;
        depthDesc.width(width);
        depthDesc.height(height);
        depthDesc.mipLevels(1);
        depthDesc.arraySize(1);
        depthDesc.format(DXGI_FORMAT_D32_FLOAT);
        depthDesc.sampleDescCount(1);
        depthDesc.sampleDescQuality(0);
        depthDesc.usage(D3D11_USAGE_DEFAULT);
        depthDesc.bindFlags(D3D11_BIND_DEPTH_STENCIL);

        //3 Create a temporary depthStencilTexture(Direct3D11Texture2D) from texture2DDesc.
        Direct3D11Texture2D depthStencilTexture(*d3d11Device, depthDesc);

        //4 Create a temporary depthStencilViewDesc(D3D11DepthStencilViewDesc)
        D3D11DepthStencilViewDesc depthStencilViewDesc(DXGI_FORMAT_D32_FLOAT, D3D11_DSV_DIMENSION_TEXTURE2D);

        //5 Create an instance of Direct3DDepthStencilView from depthStencilTexture and depthStencilViewDesc
        depthStencilView = new Direct3D11DepthStencilView(*d3d11Device, depthStencilTexture, depthStencilViewDesc);

        ID3D11RenderTargetView* targetView   = *renderTargetView;
        //6 Set renderTargetView and depthStencilView to id3d11ImmediateContext
        d3d11ImmediateContext ->setOMRenderTargets(1, &targetView, *depthStencilView);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void createEffect()
    {
      try {
        Direct3D11Device* d3d11Device = getD3D11Device();
        TCHAR fullpath[MAX_PATH];
        _stprintf_s(fullpath, CountOf(fullpath), _T("%s\\..\\fx\\%s"),
                  (const TCHAR*)directory, _T("Tutorial06.fx"));
        Args args;
        args.set(XmNrenderTechnique,       "Render");
        args.set(XmNrenderLightTechnique,  "RenderLight");

        args.set(XmNview,                   "View");
        args.set(XmNworld,                  "World");
        args.set(XmNprojection,             "Projection");
        args.set(XmNlightDirection,         "LightDirection");
        args.set(XmNlightColor,             "LightColor" );
        args.set(XmNoutputColor,            "OutputColor" );
        model = new Direct3DX11EffectModel(*d3d11Device,
                  fullpath,
                  args);


      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void createInputLayout()
    {
      try {
        Direct3D11Device* d3d11Device = getD3D11Device();
        Direct3D11ImmediateContext* d3d11ImmediateContext = getD3D11ImmediateContext();

        Direct3DX11EffectTechnique* technique = model -> getRenderTechnique();

        Direct3DX11EffectPass effectPass =  technique->getPassByIndex(0);

        D3DX11_PASS_DESC passDesc;
        effectPass.getDesc(passDesc);
        size_t count = 0;
        const D3D11_INPUT_ELEMENT_DESC* inputElementDesc = D3D11InputElements::getPosNormalDesc(count);

        inputLayout = new Direct3D11InputLayout(
              *d3d11Device,
              inputElementDesc,
              count,
              passDesc.pIAInputSignature,
              passDesc.IAInputSignatureSize);

        d3d11ImmediateContext->setIAInputLayout(*inputLayout);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void createTorus()
    {
      try {
        int i = 0;
        Direct3D11Device* d3d11Device = getD3D11Device();

        Direct3D11ImmediateContext* d3d11ImmediateContext = getD3D11ImmediateContext();

        float fInnerRadius = 0.2f;
        float fOuterRadius = 0.6f;
        UINT uSides  = 30;
        UINT uRings  = 30;
        torus = new Direct3DX11Torus(d3d11Device, d3d11ImmediateContext,
                    fInnerRadius, fOuterRadius, uSides,
                                uRings);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void createRasterizerState()
    {
      try {
        Direct3D11Device* d3d11Device = getD3D11Device();
        Direct3D11ImmediateContext* d3d11ImmediateContext = getD3D11ImmediateContext();

        D3D11_RASTERIZER_DESC desc;
        memset(&desc, 0, sizeof(desc));
        desc.CullMode               = D3D11_CULL_NONE;
        desc.FillMode               = D3D11_FILL_SOLID;
        desc.FrontCounterClockwise  = true;
        desc.DepthBias              = false;
        desc.DepthClipEnable        = true;
        desc.ScissorEnable          = false;
        desc.MultisampleEnable      = false;
        desc.AntialiasedLineEnable  = true;

        rasterizerState = new Direct3D11RasterizerState (*d3d11Device, &desc);

        d3d11ImmediateContext->setRSState(*rasterizerState);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void setShaderMatrices()
    {
      int width = 0;
      int height = 0;
      getClientSize(width, height);

      try {
        XMVECTOR eye = XMVectorSet(  0.0f,  1.0f, -6.0f,  0.0f );
        XMVECTOR at  = XMVectorSet(  0.0f,  0.0f,  0.0f,  0.0f );
        XMVECTOR up  = XMVectorSet(  0.0f,  1.0f,  0.0f,  0.0f );

        view = XMMatrix::lookAtLH(eye, at, up);
        projection = XMMatrix::perspectiveFovLH( XM_PIDIV2*0.3f, width / (FLOAT)height, 0.01f, 100.0f );

        model -> setView(view);
        model -> setProjection(projection);

      } catch (Exception& ex) {
        caught(ex);

      } catch (...) {
        MessageBox(NULL, _T("Unknown exception"), _T("Exception"), MB_OK);
      }

    }

    virtual void initialize()
    {
      try {
        createEffect();

        createInputLayout();

        createTorus();

        createRasterizerState();

        setShaderMatrices();

        createViews();

        postResizeRequest();

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    virtual void display()
    {
      try {

        Direct3D11Device*  d3d11Device = getD3D11Device();
        DirectXGISwapChain* swapChain = getSwapChain();
        Direct3D11ImmediateContext* d3d11ImmediateContext = getD3D11ImmediateContext();

        if (renderTargetView != NULL &&
            depthStencilView  != NULL  &&
            model != NULL &&

            torus != NULL) {

          XMFLOAT4 lightDirections[2] ={
            XMFLOAT4(1.0f, 0.5f, 0.5f, 1.0f),
            XMFLOAT4(0.0f, 0.0f, 1.0f, 1.0f)
          };
          XMFLOAT4 lightColors[2] = {
            XMFLOAT4(1.0f, 0.0f, 0.0f, 1.0f),
            XMFLOAT4(1.0f, 0.5f, 0.0f, 1.0f)
          };
          //2017/01/17
          setShaderMatrices();

          d3d11ImmediateContext -> clear(*renderTargetView, XMColor(0.0f, 0.1f, 0.2f, 0.0f));
          d3d11ImmediateContext -> clear(*depthStencilView);

          XMMatrix rotate    = XMMatrix::rotationY( -2.0f * angle );
          XMVector lightDir  = lightDirections[1];
          lightDirections[1] = lightDir.d3Transform(rotate );

          model -> setWorld(world );
          model -> setView( view);
          model -> setProjection( projection );
          Direct3DX11EffectTechnique* renderTechnique = model -> getRenderTechnique();
          D3DX11_TECHNIQUE_DESC techDesc;
          renderTechnique -> getDesc(&techDesc);

          model -> getLightDirection() -> setFloatVectorArray( ( float* )lightDirections, 0, 2 );
          model -> getLightColor()     -> setFloatVectorArray( ( float* )lightColors, 0, 2 );

          for( UINT i = 0; i < techDesc.Passes; i++ ) {
            renderTechnique -> getPassByIndex(i) -> Apply(0, *d3d11ImmediateContext);
            torus -> drawIndexed();
          }
        }
        swapChain -> present();

      } catch (Exception& ex) {
        caught(ex);
      } catch (...) {
        MessageBox(NULL, _T("Unknown exception"), _T("Exception"), MB_OK);
      }

    }

  public:
    void render()
    {
      angle += 0.01f;
      display();
    }

  public:
    // Constructor
    SimpleView(DirectX3D11MainView* parent, const TCHAR* name, Args& args)
   :DirectX3D11View(parent, name, args ),
    directory(_T("")),
    angle(0.0f)
    {
      directory = (const TCHAR*)args.get(XmNapplicationDirectory);

      postResizeRequest();
    }

    ~SimpleView()
    {
    }

  private:
    void resize(int width, int height)
    {
      Direct3D11Device*   device = getD3D11Device();
      DirectXGISwapChain* swapChain = getSwapChain();
      if (device           == NULL ||
          swapChain        == NULL ||
          renderTargetView == NULL ||
          depthStencilView == NULL ||
          model            == NULL ||
          torus            == NULL
          ) {
        return ;
      }

      try {
        // 1 Delete existing rendarTargetView and depthStencilView.
        deleteViews();

        // 2 ResizeBuffers swapChain(IDXGISwapChain)
        swapChain -> resizeBuffers(width, height);

        // 3 Recreate rendarTargetView and depthStencilView.
        createViews();

        // 4 SetViewPort
        setViewPort(width, height);

      } catch (Exception& ex) {
        caught(ex);
      } catch (...) {
        MessageBox(NULL, _T("Unknown exception"), _T("Exception"), MB_OK);
      }

    }
  };

  //////////////////////////////////////////////
  // Inner class ends.

private:
  SmartPtr<SimpleView> view;
  TickCounter tickCounter;

public:
  // Constructor
  MainView(Application& applet, const TCHAR* name, Args& args)
  :DirectX3D11MainView(applet, name,
                 args.set(XmNstyle, (ulong)WS_CLIPCHILDREN|WS_CLIPSIBLINGS) )
  {
    DWORD interval = (DWORD)args.get(XmNrenderingInterval);
    tickCounter.setInterval(interval);

    const TCHAR* directory = (const TCHAR*)args.get(XmNapplicationDirectory);
    // 1 Create a view of SimpleView.
    Args ar;
    int width  = 0;
    int height = 0;
    getClientSize(width, height);

    ar.set(XmNwidth, width);
    ar.set(XmNheight,height);
    ar.set(XmNapplicationDirectory, directory);
    ar.set(XmNstyle, WS_BORDER|WS_CHILD|WS_VISIBLE);
    view = new SimpleView(this, _T(""), ar);

    // 2 Post a resize request to this MainView.
    postResizeRequest();
  }

public:
  ~MainView()
  {
  }

  virtual void render()
  {
    if (view != nullptr) {
      if (tickCounter.timeout()) {
        view -> render();
        view -> update();
      }
    }
  }

private:
  void resize(int width, int height)
  {
    if (view != nullptr) {
      view -> reshape(0, 0, width, height);
    }
  }
};

}

//////////////////////////////////////////////
//
void  Main(int argc, TCHAR** argv)
{
  ModuleFileName module(argv[0]);
  const TCHAR* directory = module.getDirectory();
  const TCHAR* appClass =  module.getAppName();

  try {
    Application applet(appClass, argc, argv);

    Args args;

    args.set(XmNapplicationDirectory, directory);
    args.set(XmNwidth,  640);
    args.set(XmNheight, 480);
    args.set(XmNrenderingInterval, 10);  //10 millisec
    MainView mainv(applet, appClass, args);

    mainv.realize();

    applet.run(&mainv);

  } catch (Exception& ex) {
    caught(ex);
  }
}


Last modified: 1 Feb 2017

Copyright (c) 2017 Antillia.com ALL RIGHTS RESERVED.
