SOL9 Sample: Direct3D12MultiTexturedCubes

SOL9 2.0 Samples

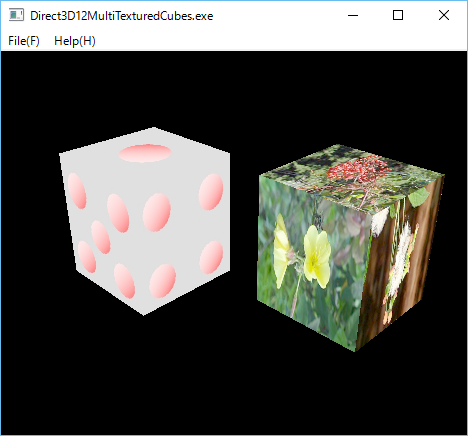

1 Screenshot


2 Source code

/*
 * Direct3D12MultiTexturedCubes.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


// 2016/12/20
// 2017/01/28 Updated to use ModuleFileName class and caught macro.

#define COMMONCONTROLS_V6
#define WIN10

#include <sol/COMInitializer.h>

#include <sol/WCharModuleFileName.h>

#include <sol/direct3d12/DirectX3D12MainView.h>
#include <sol/direct3d12/DirectX3D12View.h>
#include <sol/direct3d12/DirectXMatrix.h>
#include <sol/direct3d12/Direct3D12CommandAllocator.h>
#include <sol/direct3d12/Direct3D12RenderTargetView.h>
#include <sol/direct3d12/Direct3D12DepthStencilView.h>
#include <sol/direct3d12/Direct3D12CommonDescriptorHeap.h>

#include <sol/direct3d12/Direct3D12TransformConstantBufferView.h>

#include <sol/direct3d12/Direct3D12TextureRootSignature.h>
#include <sol/direct3d12/Direct3D12GraphicsCommandList.h>
#include <sol/direct3d12/Direct3D12Fence.h>
#include <sol/direct3d12/Direct3D12PipelineState.h>

#include <sol/direct3d12/D3D12RasterizerDesc.h>
#include <sol/direct3d12/D3D12BlendDesc.h>
#include <sol/direct3d12/D3D12GraphicsPipelineStateDesc.h>
#include <sol/direct3d12/D3D12ResourceBarrier.h>
#include <sol/direct3d12/D3D12Transform.h>
#include <sol/direct3d12/Direct3D12GraphicsCommandList.h>
#include <sol/direct3d12/Direct3D12Synchronizer.h>
#include <sol/direct3d12/Direct3D12Texture2D.h>
#include <sol/direct3d12/Direct3DX12TexturedRectangle.h>
#include <sol/direct3d12/Direct3D12ShaderResourceView.h>
#include <sol/direct3d12/Direct3D12Sampler.h>

#include <sol/direct3d12/Direct3DX12ColoredRectangle.h>
#include <sol/direct3d12/DirectXTransform.h>
#include <sol/direct3d12/Direct3D12Subresources.h>

#include <sol/wic/WICBitmapFileReader.h>

#include <sol/direct3d12/D3D12SubresourceData.h>
#include <sol/direct3d12/D3D12Rectangle.h>
#include <sol/direct3d12/Direct3DX12MultiTexturedCube.h>

#include "resource.h"

namespace SOL {

class MainView :public DirectX3D12MainView {
private:
  static const UINT  NUMBER_OF_CUBES                = 2;
  static const UINT  NUMBER_OF_CONSTANT_BUFFER_VIEW = NUMBER_OF_CUBES;
  static const UINT  NUMBER_OF_CUBE_FACES           = 6;
  static const UINT  NUMBER_OF_SHADER_RESOURCE_VIEW = NUMBER_OF_CUBES*NUMBER_OF_CUBE_FACES; //The number of faces of a cube;
  //Inner class starts.
  class SimpleView :public DirectX3D12View {
  private:
    SmartPtr<Direct3D12CommandAllocator>     commandAllocator;
    SmartPtr<Direct3D12RenderTargetView>     renderTargetView;
    SmartPtr<Direct3D12DepthStencilView>     depthStencilView;
    SmartPtr<Direct3D12RootSignature>        rootSignature;
    SmartPtr<Direct3D12CommonDescriptorHeap> commonDescriptorHeap;
    SmartPtr<Direct3D12TransformConstantBufferView>   constantBufferView[NUMBER_OF_CUBES];
    SmartPtr<Direct3D12GraphicsCommandList>  graphicsCommandList;
    SmartPtr<Direct3D12PipelineState>        pipelineState;
    SmartPtr<Direct3D12Synchronizer>         synchronizer;

    SmartPtr<Direct3DX12MultiTexturedCube>   multiTexturedCube[NUMBER_OF_CUBES];

    UINT                            frameIndex;

    DirectXTransform                worldViewProjection;
    float                           angle;
    StringT<TCHAR>                  directory;

private:
    virtual void createPipelineState(ID3D12Device* device)
    {
      //Create a graphicPipelineStateDes.
      D3D12GraphicsPipelineStateDesc graphicsPipelineStateDesc(*rootSignature);

      UINT count = 0;
      const D3D12_INPUT_ELEMENT_DESC* inputElements = multiTexturedCube[0]->getInputElementDesc(count);

      D3D12RasterizerDesc  rasterDesc(
        D3D12_FILL_MODE_SOLID,
        D3D12_CULL_MODE_NONE,
        false);

      D3D12BlendDesc       blendDesc;

      graphicsPipelineStateDesc.setInputLayput(inputElements, count);

      graphicsPipelineStateDesc.setRasterizerState(rasterDesc);
      graphicsPipelineStateDesc.setBlendState(blendDesc);

      StringT<TCHAR> vsshaderFile = getShaderFilePath(directory, _T("VertexShader.cso"));
      StringT<TCHAR> psshaderFile = getShaderFilePath(directory, _T("PixelShader.cso"));

      graphicsPipelineStateDesc.setVertexShader(vsshaderFile);
      graphicsPipelineStateDesc.setPixelShader(psshaderFile);

      pipelineState = new Direct3D12PipelineState(device, graphicsPipelineStateDesc);
    }

    void setDirectXTransform(int cubeIndex)
    {
      int width = 0;
      int height = 0;
      getClientSize(width, height);

      try {
        XMFLOAT3 pos[NUMBER_OF_CUBES] = {
            XMFLOAT3(-3.0f,  0.0f,   1.0f),
            XMFLOAT3(+3.0f,  0.0f,   1.0f),
        };

        DirectXMatrix world =  DirectXMatrix::rotationY( angle );
        DirectXMatrix m = DirectXMatrix::translation(pos[cubeIndex].x, pos[cubeIndex].y, pos[cubeIndex].z);
        world += m;

        XMVECTOR eye = XMVectorSet(  2.0f,  4.0f, -7.0f,  0.0f );
        XMVECTOR at  = XMVectorSet(  0.0f,  0.0f,  0.0f,  0.0f );
        XMVECTOR up  = XMVectorSet(  0.0f,  1.0f,  0.0f,  0.0f );

        worldViewProjection.world      = world;
        worldViewProjection.view       = DirectXMatrix::lookAtLH(eye, at, up);
        worldViewProjection.projection = DirectXMatrix::perspectiveFovLH( XM_PIDIV2*0.4f,
                      width / (FLOAT)height, 0.01f, 100.0f );

        constantBufferView[cubeIndex]->update(worldViewProjection);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    //Create a renderTargetView and a depthStencilView.
    void createViews(ID3D12Device* device, IDXGISwapChain3* swapChain,
                  int width, int height)
    {
      renderTargetView = new Direct3D12RenderTargetView(device, swapChain);
      depthStencilView = new Direct3D12DepthStencilView(device,  width, height);
    }

    //Delete a renderTargetView and a depthStencilView.
    void deleteViews()
    {
      if (graphicsCommandList == nullptr) {
        throw IException("graphicsCommandList is NULL.")
      }
      graphicsCommandList->setOMRenderTargets(0, nullptr, FALSE, nullptr);

      renderTargetView = NULL;
      depthStencilView = NULL;
    }

    // Create two PNG or JPG textured cubes.
    void    createMultiTexturedCubes()
    {
      int width = 0;
      int height = 0;
      validateClientSize(width, height);
      Direct3D12Device*    device = getD3D12Device();
      DirectXGISwapChain3* swapChain = getSwapChain3();
      Direct3D12CommandQueue* commandQueue = getCommandQueue();
      try {
        const wchar_t* pngfiles[NUMBER_OF_CUBE_FACES] = {
          L"1.png",  L"2.png", L"3.png",
          L"4.png",  L"5.png", L"6.png",
        };

        size_t cubeIndex = 0;
        //1 Create the first 6-PNG images textured cube.
        multiTexturedCube[cubeIndex] = new Direct3DX12MultiTexturedCube(*device, width, height,
          pngfiles, _countof(pngfiles));

        //2 Upload the PNG-textures of the first cube.
        multiTexturedCube[cubeIndex]->update(*graphicsCommandList, *commandAllocator, *commandQueue,
                  commonDescriptorHeap, CBV_HANDLE + NUMBER_OF_CUBES, synchronizer);

        const wchar_t* jpgfiles[NUMBER_OF_CUBE_FACES] = {
          L"1.jpg",  L"2.jpg", L"3.jpg",
          L"4.jpg",  L"5.jpg", L"6.jpg",
        };

        cubeIndex++;
        //3 Create the first 6-JPG images textured cube.
        multiTexturedCube[cubeIndex] = new Direct3DX12MultiTexturedCube(*device, width, height,
          jpgfiles, _countof(jpgfiles));

        //4 Upload the JPG-textures of the second cube.
        multiTexturedCube[cubeIndex]->update(*graphicsCommandList, *commandAllocator, *commandQueue,
                  commonDescriptorHeap,
                  CBV_HANDLE + NUMBER_OF_CUBES + NUMBER_OF_CUBE_FACES,
                  synchronizer);
      } catch (Exception& ex) {
        caught(ex);
      }
    }

  public:

    virtual void initialize()
    {
      int width  = 0;
      int height = 0;
      validateClientSize(width, height);
      Direct3D12Device*    device    = getD3D12Device();
      DirectXGISwapChain3* swapChain = getSwapChain3();
      Direct3D12CommandQueue* commandQueue = getCommandQueue();

      try {
        // 1 Create a commandAllocator
        commandAllocator         = new Direct3D12CommandAllocator(*device);

        //2 Create a graphicsCommandList
        graphicsCommandList      = new Direct3D12GraphicsCommandList(*device, *commandAllocator);

        //3 Create a rootSignature specified by the arguments
        // NUMBER_OF_CONSTANT_BUFFER_VIEW and NUMBER_OF_SHADER_RESOURCE_VIEW.
        rootSignature            = new Direct3D12RootSignature(*device,
                                                      NUMBER_OF_CONSTANT_BUFFER_VIEW,
                                                      NUMBER_OF_SHADER_RESOURCE_VIEW);
        //4 Create a synchronizer
        synchronizer             = new Direct3D12Synchronizer(*device, *commandQueue);

        //5 Create renderTargetView and depthStencilView
        createViews(*device, *swapChain, width, height);

        //6 Create a commonDescriptorHeap of the size of
        // NUMBER_OF_CONSTANT_BUFFER_VIEW + NUMBER_OF_SHADER_RESOURCE_VIEW.
        commonDescriptorHeap     = new Direct3D12CommonDescriptorHeap(*device,
                NUMBER_OF_CONSTANT_BUFFER_VIEW + NUMBER_OF_SHADER_RESOURCE_VIEW);

        //7 Create constantBufferViews of the number of NUMBER_OF_CUBES
        for (UINT i = 0; i < NUMBER_OF_CUBES; i++) {
          constantBufferView[i]  = new Direct3D12TransformConstantBufferView(*device,
                                                  commonDescriptorHeap->getCPUHandle(CBV_HANDLE + i));
        }
        //8 Create multiTexturedCubes
        createMultiTexturedCubes();

        //9 Create a pipelineState
        createPipelineState(*device);


      } catch (Exception& ex) {
        caught(ex);
      }
    }

    bool ready()
    {
      Direct3D12Device*    device          = getD3D12Device();
      DirectXGISwapChain3* swapChain       = getSwapChain3();
      Direct3D12CommandQueue* commandQueue = getCommandQueue();

      if (
        device                    == nullptr ||
        commandQueue              == nullptr ||
        swapChain                 == nullptr ||

        commandAllocator          == nullptr ||
        renderTargetView          == nullptr ||
        depthStencilView          == nullptr ||

        rootSignature             == nullptr ||

        constantBufferView        == nullptr ||

        graphicsCommandList       == nullptr ||
        pipelineState             == nullptr ||
        synchronizer              == nullptr ) {

        return false;
      }
      return true;
    }

    virtual void display()
    {
      int width  = 0;
      int height = 0;
      validateClientSize(width, height);
      if ( !ready() ) {
        return;
      }

      try {
        Direct3D12Device*       device       = getD3D12Device();
        DirectXGISwapChain3*    swapChain    = getSwapChain3();
        Direct3D12CommandQueue* commandQueue = getCommandQueue();

        commandAllocator    -> reset();

        graphicsCommandList->reset(*commandAllocator, nullptr);

        frameIndex = swapChain -> getCurrentBackBufferIndex();

        D3D12ResourceBarrier barrier(renderTargetView->getResource(frameIndex));

        barrier.startRendering();

        graphicsCommandList->resourceBarrier(1, barrier);

        graphicsCommandList->setDescriptorHeap(*commonDescriptorHeap);

        graphicsCommandList->setGraphicsRootSignature(*rootSignature);

        graphicsCommandList->setPipelineState(*pipelineState);


        graphicsCommandList -> setRSViewport(width, height);

        graphicsCommandList -> setRSScissorRect(width, height);

        D3D12_CPU_DESCRIPTOR_HANDLE rtvHandle = renderTargetView->getHandle(frameIndex);

        graphicsCommandList->clearRenderTargetView(rtvHandle, XMColor(0.0f, 0.0f, 0.0f, 1.0f));

        D3D12_CPU_DESCRIPTOR_HANDLE dsvHandle = *depthStencilView;

        graphicsCommandList->clearDepthStencilView(dsvHandle, D3D12_CLEAR_FLAG_DEPTH);

        graphicsCommandList->setOMRenderTargets(1, &rtvHandle, FALSE, &dsvHandle);

        for (size_t i = 0; i < NUMBER_OF_CUBES; i++) {
          //Update i-th constantBufferView by using WorldViewProjection system.
          setDirectXTransform(i);
          //Set i-th GPU commonDescriptorHeap address to the graphicsCommandList
          graphicsCommandList->setGraphicsRootDescriptorTable(CBV_HANDLE,
                  commonDescriptorHeap->getGPUHandle(CBV_HANDLE + i));  //ConstantBufferView
          //Draw i-th multiTexturedCube
          multiTexturedCube[i] -> draw(graphicsCommandList, commonDescriptorHeap);
        }

        barrier.endRendering();

        graphicsCommandList->resourceBarrier(1, barrier);

        graphicsCommandList->close();

        commandQueue->executeCommandList(*graphicsCommandList);

        swapChain->present(1, 0);

        synchronizer->waitForCompletion();

      } catch (Exception& ex) {
        caught(ex);
      }
    }

    virtual void resize(int width, int height)
    {
      Direct3D12Device*   device = getD3D12Device();
      DirectXGISwapChain3* swapChain = getSwapChain3();
      if (device           == NULL ||
          swapChain        == NULL) {
        return ;
      }

      try {
        deleteViews();

        swapChain->resizeBuffers(width, height);

        createViews(*device, *swapChain, width, height);

      } catch (Exception& ex) {
        caught(ex);
      }
    }

  public:
    //Constructor
    SimpleView(DirectX3D12MainView* parent, const TCHAR* name, Args& args)
    :DirectX3D12View(parent, name, args),
    angle (1.0f),
    frameIndex(0),
    directory(_T(""))
    {
      directory = (const TCHAR*)args.get(XmNapplicationDirectory);

      postResizeRequest();
    }

    ~SimpleView()
    {
    }
  };
  // Inner class ends.

private:
  SmartPtr<SimpleView> view;

public:
  /**
   * Constructor
   */
  MainView(Application& applet, const TCHAR* name, Args& args)
  :DirectX3D12MainView(applet, name,
                 args.set(XmNstyle, (ulong)WS_CLIPCHILDREN|WS_CLIPSIBLINGS) ),
  view(NULL)
  {
    const TCHAR* directory = (const TCHAR*)args.get(XmNapplicationDirectory);

    // 1 Restore the replacement of MainView
    restorePlacement();

    // 2 Create a view of SimpleView.
    Args ar;
    int width  = 0;
    int height = 0;
    getClientSize(width, height);

    ar.set(XmNwidth, width);
    ar.set(XmNheight,height);
    ar.set(XmNapplicationDirectory, (const TCHAR*)directory);
    view = new SimpleView(this, _T(""), ar);

    // 3 Post a resize request to this MainView.
    postResizeRequest();
  }

public:
  ~MainView()
  {
  }

  void resize(int width, int height)
  {
    if (view != nullptr) {
      view -> reshape(0, 0, width, height);
    }
  }
};
}


//////////////////////////////////////////////
//
void  Main(int argc, TCHAR** argv)
{
  ModuleFileName module(argv[0]);
  const TCHAR* directory = module.getDirectory();
  const TCHAR* appClass =  module.getAppName();

  try {
    //For DXGI components.
    COMInitializer initializer( COINIT_APARTMENTTHREADED | COINIT_DISABLE_OLE1DDE);

    Application applet(appClass, argc, argv);

    Args args;
    args.set(XmNwidth,  480);
    args.set(XmNheight, 480);
    args.set(XmNapplicationDirectory, directory);

    MainView mainView(applet, appClass, args);
    mainView.realize();

    applet.run();
  } catch (Exception& ex) {
    caught(ex);
  }
}


Last modified: 1 Feb 2017

Copyright (c) 2017 Antillia.com ALL RIGHTS RESERVED.
