SOL9 Sample: BilateralFilter

SOL9 2.0 Samples

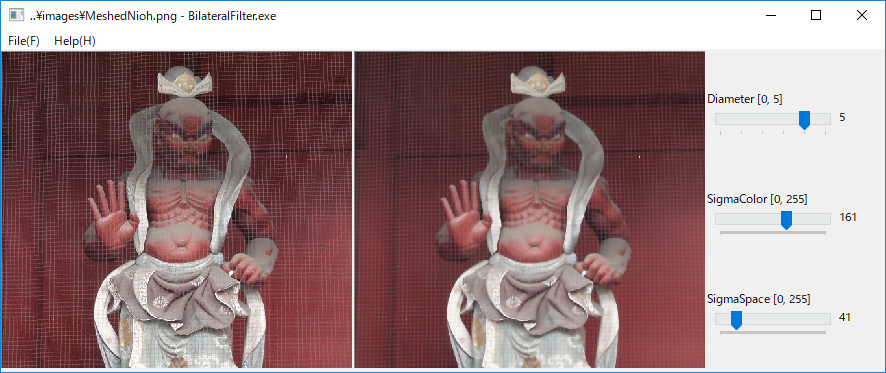

1 Screenshot


2 Source code

/*
 * BilateralFilter.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


//2017/09/25
// See: "http://docs.opencv.org/2.4/modules/imgproc/doc/filtering.html"
//2017/12/01 Added save, saveAs methods to MainView.

#define _CONSOLE_

#include <sol/ModuleFileName.h>
#include <sol/LabeledTrackBar.h>
#include <sol/FileDialog.h>
#include <sol/opencv/OpenCVApplicationView.h>
#include <sol/opencv/OpenCVNamedWindow.h>

namespace SOL {

class MainView :public OpenCVApplicationView {

private:
  ////////////////////////////////////////////////////////////////////////////////////////
  //Inner classes start.
  class OriginalImageView :public OpenCVNamedWindow {
  private:
    cv::Mat originalImage;

    void display()
    {
      show(originalImage);
    }

  public:
    OriginalImageView(View* parent, const char* name, Args& args)
    :OpenCVNamedWindow(parent, name, args)
    {
      try {
        const char* filename = (const char*)args.get(XmNimageFileName);
        int imageLoadingFlag = args.get(XmNimageLoadingFlag);
        loadImage(filename, imageLoadingFlag);
      } catch (SOL::Exception ex) {
        caught(ex);
      }
    }

    ~OriginalImageView()
    {
    }

    void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR)
    {
      try {
        originalImage = readImage(filename, imageLoadingFlag);
        refresh();

      } catch (Exception& ex) {
        caught(ex);
      }
    }

  };

  class BlurredImageView :public OpenCVNamedWindow {
  private:
    cv::Mat originalImage;
    cv::Mat blurredImage;

    void display()
    {
      show(blurredImage);
    }

  public:
    BlurredImageView(View* parent, const char* name, Args& args)
    :OpenCVNamedWindow(parent, name, args)
    {
      try {
        const char* filename = (const char*)args.get(XmNimageFileName);
        int imageLoadingFlag = args.get(XmNimageLoadingFlag);
        loadImage(filename, imageLoadingFlag);
      } catch (SOL::Exception ex) {
        caught(ex);
      }
    }

    ~BlurredImageView()
    {
    }

    void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR)
    {
      try {
        originalImage = readImage(filename, imageLoadingFlag);
        blurredImage = originalImage;
      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void blur(int diameter, int sigmaColor, int sigmaSpace)
    {
      //void bilateralFilter(InputArray src, OutputArray dst, int diameter,
      //            double sigmaColor,
      //            double sigmaSpace,
      //            int borderType=BORDER_DEFAULT )

      cv::Mat newImage = cv::Mat::zeros(originalImage.size(), originalImage.type() );
      cv::bilateralFilter(originalImage, newImage, diameter,
            (double)sigmaColor,
            (double)sigmaSpace,
            BORDER_DEFAULT);
      blurredImage = newImage;
      refresh();
    }

    void writeImage(const char* filename)
    {
      OpenCVNamedWindow::writeImage(filename, blurredImage);
    }
  };
  //Inner classes end.
  ////////////////////////////////////////////////////////////////////////////////////////

  void updateCaption()
  {
    char caption[1024];
    sprintf_s(caption, CountOf(caption), "%s - %s", (const char*)imageFile,
      getAppName() );

    setText(caption);
  }

  StringT<char>               imageFile;
  StringT<char>               savedImageFile;

  SmartPtr<OriginalImageView> originalImage;
  SmartPtr<BlurredImageView>  blurredImage;

  int                         diameter;
  SmartPtr<LabeledTrackBar>   diameterTrackBar;

  int                         sigmaColor;
  SmartPtr<LabeledTrackBar>   sigmaColorTrackBar;

  int                         sigmaSpace;
  SmartPtr<LabeledTrackBar>   sigmaSpaceTrackBar;

  FileDialog                  filedlg;
  Profile                     profile;

  //Common callback for diameterTrackBar, sigmaColorTrackBar, sigmaSpaceTrackBar
  void trackBarScrolled(Action& action)
  {
    diameter   = diameterTrackBar  ->getPosition();
    sigmaColor = sigmaColorTrackBar->getPosition();
    sigmaSpace = sigmaSpaceTrackBar->getPosition();
    blurredImage -> blur(diameter, sigmaColor, sigmaSpace);
  }

  void resize(int w, int h)
  {
    int CPW = 180;
    if (originalImage && blurredImage &&
          diameterTrackBar && sigmaColorTrackBar && sigmaSpaceTrackBar) {
      originalImage      -> reshape(2,            2,  (w-CPW)/2-1,    h-4);
      blurredImage       -> reshape((w-CPW)/2+1,  2,  (w-CPW)/2-1,    h-4);
      diameterTrackBar   -> reshape(w-CPW + 2,  40, CPW-4, 60);
      sigmaColorTrackBar -> reshape(w-CPW + 2, 140, CPW-4, 60);
      sigmaSpaceTrackBar -> reshape(w-CPW + 2, 240, CPW-4, 60);
    }
  }

  void confirm(Action& action)
  {
    int rc = MessageBox(NULL, "Are you sure to close this window?", "Confirmation",
                MB_OKCANCEL|MB_ICONEXCLAMATION);
    if (rc == IDOK) {
      exit(action);
    }
  }

public:
  MainView(OpenCVApplication& applet, const char* name, Args& args)
  :OpenCVApplicationView(applet, name, args)
  {
    try {
      imageFile = "..\\images\\MeshedNioh.png";

      int  imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
      Args ar;
      ar.set(XmNimageFileName, imageFile);
      ar.set(XmNimageLoadingFlag, imageLoadingFlag);
      originalImage = new OriginalImageView(this, "cvwindow1", ar);

      ar.reset();
      ar.set(XmNimageFileName, imageFile);
      ar.set(XmNimageLoadingFlag, imageLoadingFlag);
      blurredImage = new BlurredImageView(this, "cvwindow2", ar);

      diameter   = 4;
      sigmaColor = 160;
      sigmaSpace = 40;

      ar.reset();
      ar.set(XmNminimum, 0);
      ar.set(XmNmaximum, 5);
      ar.set(XmNposition, diameter);
      diameterTrackBar = new LabeledTrackBar(this, "Diameter", ar);
      diameterTrackBar -> addCallback(XmNtrackBarScrollCallback, this,
        (Callback)&MainView::trackBarScrolled, NULL);

      ar.reset();
      ar.set(XmNminimum, 0);
      ar.set(XmNmaximum, 255);
      ar.set(XmNposition, sigmaColor);
      sigmaColorTrackBar = new LabeledTrackBar(this, "SigmaColor", ar);
      sigmaColorTrackBar -> addCallback(XmNtrackBarScrollCallback, this,
        (Callback)&MainView::trackBarScrolled, NULL);

      ar.reset();
      ar.set(XmNminimum, 0);
      ar.set(XmNmaximum, 255);
      ar.set(XmNposition, sigmaSpace);
      sigmaSpaceTrackBar = new LabeledTrackBar(this, "SigmaSpace", ar);
      sigmaSpaceTrackBar -> addCallback(XmNtrackBarScrollCallback, this,
        (Callback)&MainView::trackBarScrolled, NULL);

      addCallback(XmNmenuCallback, IDM_EXIT, this,
          (Callback)&MainView::confirm, NULL);

      blurredImage -> blur(diameter, sigmaColor, sigmaSpace);

      updateCaption();

      ar.reset();
      ar.set(XmNfilter, FileDialog::getImageFilesFilter());
      filedlg.create(this, "OpenFile", ar);

    } catch (Exception& ex) {
      caught(ex);
    }
  }

  ~MainView()
  {
  }

  void saveFileFolder(const char* filePath)
  {
    if (strlen(filePath)>0) {

      Folder folder(filePath);
      String dirOnly = "";

      folder.getDirectory(dirOnly);
      const char* dir = (const char*)dirOnly;
      profile.setFileFolder(dir);
    }
  }

  void open(Action& action)
  {
    Args ar;

    char dir[MAX_PATH] = { 0 };
    if (profile.getFileFolder(dir, CountOf(dir))) {
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    try {
      if(filedlg.open()) {

        const char* filename = filedlg.getFileName();
        saveFileFolder(filename);

        originalImage -> loadImage(filename);
        blurredImage -> loadImage(filename);
        const char* fname = strrchr(filename, '\\');
        if (fname) {
          fname++;
        }
        imageFile = fname;

        post(WM_HSCROLL, 0, 0);
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  //2017/12/01
  void save(Action& action)
  {
    try {
      if (!savedImageFile.isEmpty()) {
        //Write detected image into the filename.
        blurredImage->writeImage(savedImageFile);
      } else {
        saveAs(action);
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  void saveAs(Action& action)
  {
    Args ar;

    char dir[MAX_PATH] = { 0 };
    if (restoreFileFolder(dir, CountOf(dir))) {
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    try {
      if(filedlg.save()) {

        const char* filename = filedlg.getFileName();
        saveFileFolder(filename);

        //Write detected image into the filename.
        blurredImage->writeImage(filename);
        savedImageFile = filename;
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }

};
}

//
void main(int argc, char** argv)
{
  try {
    ModuleFileName module(argv[0]);

    const char*  name = module.getAppName();

    OpenCVApplication applet(name, argc, argv);

    Args args;
    args.set(XmNwidth,  900);
    args.set(XmNheight, 380);
    MainView view(applet, name, args);
    view.realize();

    applet.run();

  } catch (SOL::Exception& ex) {
    caught(ex);
  }
}
