SOL9 Sample: ObjectDetectionByCascadeClassifier

SOL9 2.0 Samples

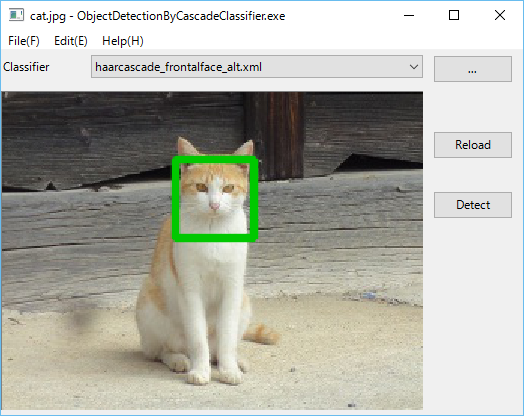

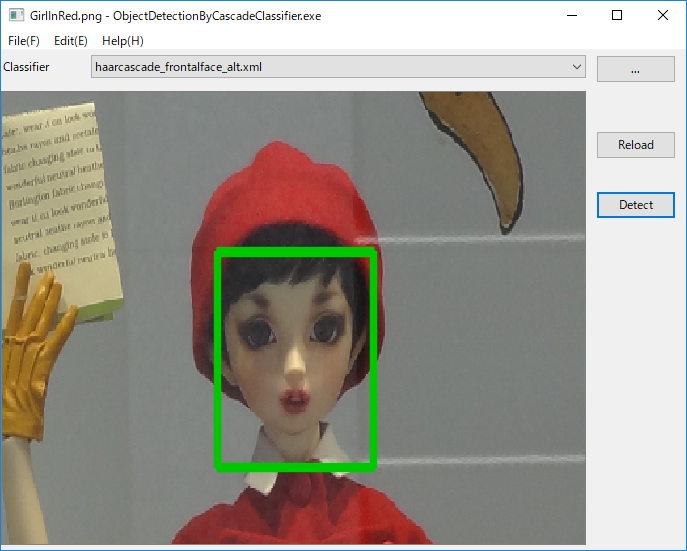

1 Screenshot





2 Source code

/*
 * ObjectDetectionByCascadeClassifier.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


//2017/12/01 Added save, saveAs methods to MainView

#define _CONSOLE_

#include <sol/ModuleFileName.h>
#include <sol/DropFiles.h>

#include <sol/FolderBrowser.h>
#include <sol/Label.h>
#include <sol/ComboBox.h>
#include <sol/Profile.h>
#include <sol/StringT.h>
#include <sol/opencv/OpenCVObject.h>
#include <sol/opencv/OpenCVApplicationView.h>
#include <sol/opencv/OpenCVNamedWindow.h>
#include <sol/PushButton.h>
#include <sol/FileDialog.h>
#include <vector>
#include "Resource.h"

namespace SOL {

class MainView :public OpenCVApplicationView {

private:
  ////////////////////////////////////////////////////////////////////////////////////////
  //Inner class starts.
  class SimpleView :public OpenCVNamedWindow {
  private:
    StringT<char>  filePath;
    int            loadFlag;
    cv::Mat        image;

    void display()
    {
      show(image);
    }

  public:
    SimpleView(View* parent, const char* name, Args& args)
    :OpenCVNamedWindow(parent, name, args)
    {
      try {
      const char* filename = (const char*)args.get(XmNimageFileName);
      int imageLoadingFlag = (int)args.get(XmNimageLoadingFlag);

      loadImage(filename, imageLoadingFlag); //"..\\images\\WafukuMannequin.png");
      } catch (Exception& ex) {
        caught(ex);
      }
    }

    ~SimpleView()
    {
    }

    void loadImage(const char* filename, int flag=CV_LOAD_IMAGE_COLOR)
    {
      try {
        filePath = filename;
        loadFlag = flag;
        image    = readImage(filename, flag);
        refresh();
      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void reload()
    {
      try {
        image    = readImage((const char*)filePath, loadFlag);
        refresh();
      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void detect(const char* path)
    {
      try {
        CascadeClassifier classifier;
          classifier.load(path);

          cv::vector<Rect> faces;
          classifier.detectMultiScale(image, faces, 1.1, 3, 0, cv::Size(20,20));
        if (faces.size() == 0) {
          MessageBox(NULL, "Not detected by detectMultiScale.",
              "DetectOperation", MB_OK|MB_ICONINFORMATION);
        }
          for (int i = 0; i < faces.size(); i++){
              rectangle(image, Point(faces[i].x,                 faces[i].y),
                               Point(faces[i].x + faces[i].width, faces[i].y + faces[i].height),
                               Scalar(0, 200, 0), 3, CV_AA);
          }
        refresh();
      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void writeImage(const char* filename)
    {
      OpenCVNamedWindow::writeImage(filename, image);
    }
  };
  //Inner class endss
  ////////////////////////////////////////////////////////////////////////////////////////

  StringT<char>           imageFile;
  StringT<char>           savedImageFile;

  SmartPtr<SimpleView>    view;

  SmartPtr<Label>         label;
  SmartPtr<ComboBox>      comboBox;

  SmartPtr<FolderBrowser> folderBrowser;
  SmartPtr<PushButton>    classifierButton;
  SmartPtr<PushButton>    reloadButton;
  SmartPtr<PushButton>    detectButton;
  String                  selectedFolder;

  FileDialog              filedlg;
  Profile                 profile;

 void updateCaption()
  {
    char caption[MAX_PATH];
    sprintf_s(caption, CountOf(caption), "%s - %s",
          (const char*)imageFile,
          getAppName());
    setText(caption);
  }

  void resize(int w, int h)
  {
    if (label && comboBox && view && detectButton && detectButton) {
      classifierButton-> reshape(  w-100+10,   4,     80,   28);
      label           -> reshape(         0,   4,    100,   28);
      comboBox        -> reshape(        90,   4,  w-190,  120);
      view            -> reshape(         0,  40,  w-100, h-45);
      reloadButton    -> reshape(w-100 + 10,  80,     80,   28);
      detectButton    -> reshape(w-100 + 10, 140,     80,    28);
    }
  }

  void open(Action& action)
  {
    Args ar;

    char dir[MAX_PATH] = {0};
    //Restore previously select folder from a registry(profile of this application) for fileDialog
    if (profile.getFileFolder(dir, CountOf(dir))) {
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    try {
      if(filedlg.open()) {
        const char* filename = filedlg.getFileName();
        saveFileFolder(filename);

        openFile(filename);

      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  void classifierFolder(Action& action)
  {
    if (folderBrowser->show(selectedFolder)) {
      char pattern[MAX_PATH];
      sprintf_s(pattern, sizeof(pattern), "%s\\*.xml", (const char*)selectedFolder);
      comboBox->clear();

      comboBox->findFiles(pattern);
      comboBox->setCurSel(0);
    }
  }

  void reload(Action& action)
  {
    if (view) {
      view ->reload();
    }
  }

  void detect(Action& action)
  {
    char path[MAX_PATH];
    String filterName  = comboBox->getCurrentSelection();

    sprintf_s(path, sizeof(path), "%s\\%s",
              (const char*)selectedFolder, (const char*)filterName);
    if (view) {
      view->detect(path);
    }
  }

  void openFile(const char* filename)
  {
    try {
      view -> loadImage(filename, CV_LOAD_IMAGE_COLOR);
      imageFile = filename;
      const char* fname = strrchr(filename, '\\');
      if (fname) {
        fname++;
      }
      imageFile = fname;
      updateCaption();

    } catch (Exception& ex) {
      caught(ex);
    }
  }


  void dropFiles(Action& action)
  {
    char fileName[MAX_PATH] = { 0 };
    DropFiles drop((HDROP)action.getWParam());

    int num = drop.queryFile(0, fileName, CountOf(fileName));
    if(num > 0) {
      if (filedlg.isImageFileName(fileName)) {
        openFile(fileName);
        bringUp();
      } else {
        bringUp(); //Activate and raise this view
        showErrorDialog("Invalid image filename", fileName,  MB_OK);
      }
    }
  }

  void confirm(Action& action)
  {
    int rc = MessageBox(NULL, "Are you sure to close this window?", "Confirmation",
                MB_OKCANCEL|MB_ICONEXCLAMATION);
    if (rc == IDOK) {
      exit(action);
    }
  }

public:
  MainView(OpenCVApplication& applet, const char* name, Args& args)
  :OpenCVApplicationView(applet, name, args)
  {
    try {
      imageFile = "..\\images\\WafukuMannequin.png";
      Args ar;
      label = new Label(this, "Classifier", ar);

      ar.reset();
      classifierButton = new PushButton(this, "...", ar);
      classifierButton -> addCallback(XmNactivateCallback, this,
        (Callback)&MainView::classifierFolder, NULL);

      ar.reset();
      ar.set(XmNstyle, CBS_SORT|CBS_DROPDOWNLIST);
      comboBox = new ComboBox(this, "", ar);

      ar.reset();
      ar.set(XmNimageFileName,  imageFile);
      ar.set(XmNimageLoadingFlag, CV_LOAD_IMAGE_COLOR);
      view = new SimpleView(this, "cvwindow", ar);
      view -> addCallback(XmNdropCallback, this,
        (Callback)&MainView::dropFiles, NULL);

      addCallback(XmNmenuCallback, IDM_FILTER, this,
        (Callback)&MainView::classifierFolder, NULL);

      ar.reset();
      reloadButton = new PushButton(this, "Reload", ar);
      reloadButton -> addCallback(XmNactivateCallback, this,
          (Callback)&MainView::reload, NULL);

      ar.reset();
      detectButton = new PushButton(this, "Detect", ar);
      detectButton -> addCallback(XmNactivateCallback, this,
          (Callback)&MainView::detect, NULL);

      ar.reset();
      ar.set(XmNstartingDirectory, "C:\\dev\\opencv3.2");
      folderBrowser = new FolderBrowser(this, "FolderBrowser", ar);

      ar.reset();
      ar.set(XmNfilter, FileDialog::getImageFilesFilter());
      filedlg.create(this, "OpenFile", ar);

      addCallback(XmNmenuCallback, IDM_OPEN, this,
          (Callback)&MainView::open, NULL);
      addCallback(XmNmenuCallback, IDM_EXIT, this,
          (Callback)&MainView::confirm, NULL);

      updateCaption();
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  ~MainView()
  {
  }

  //2017/12/01
  void save(Action& action)
  {
    try {
      if (!savedImageFile.isEmpty()) {
        //Write detected image into the filename.
        view->writeImage(savedImageFile);
      } else {
        saveAs(action);
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  //2017/12/01
  void saveAs(Action& action)
  {
    Args ar;

    char dir[MAX_PATH] = { 0 };
    if (restoreFileFolder(dir, CountOf(dir))) {
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    try {
      if(filedlg.save()) {

        const char* filename = filedlg.getFileName();
        saveFileFolder(filename);

        //Write detected image into the filename.
        view->writeImage(filename);
        savedImageFile = filename;
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }
};
}

//
void main(int argc, char** argv)
{
  try {
    ModuleFileName module(argv[0]);

    const char*  name = module.getAppName();
    OpenCVApplication applet(name, argc, argv);

    Args args;
    args.set(XmNwidth,  700);
    args.set(XmNheight, 500);
    MainView view(applet, name, args);
    view.realize();

    applet.run();

  } catch (SOL::Exception& ex) {
    caught(ex);
  }
}
