SOL9 2.0 Samples

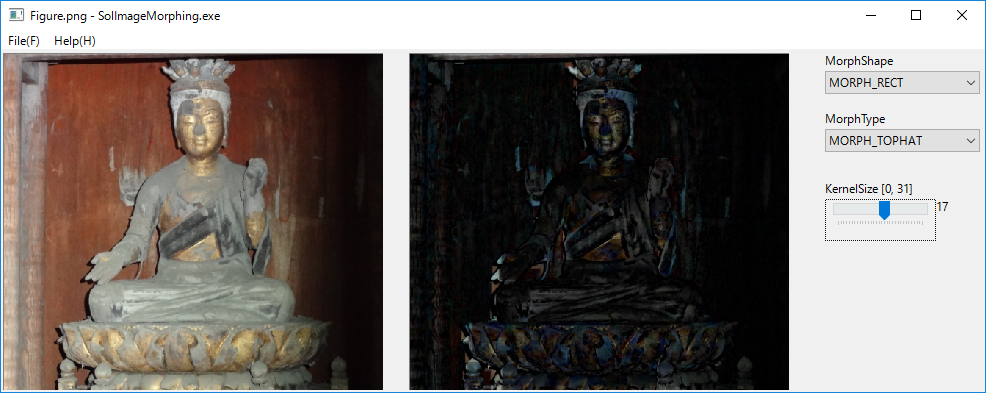

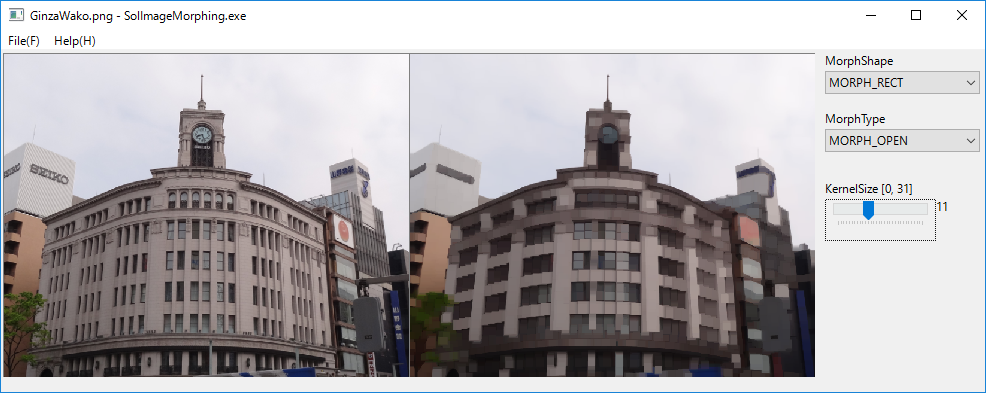

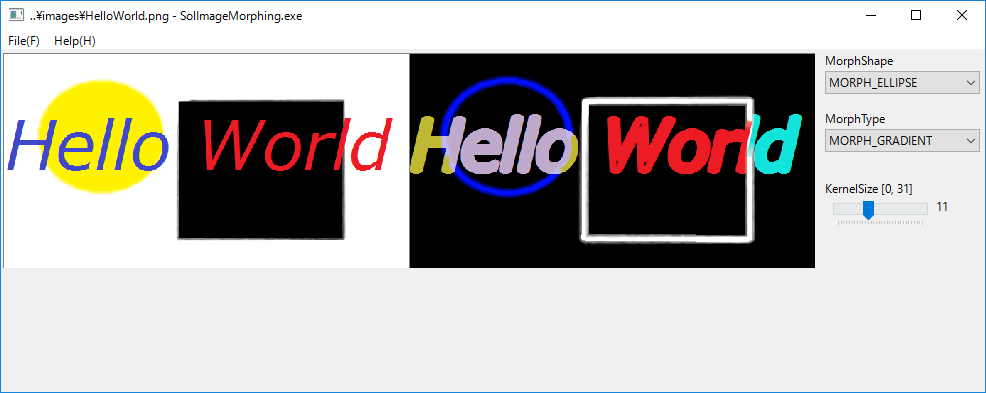

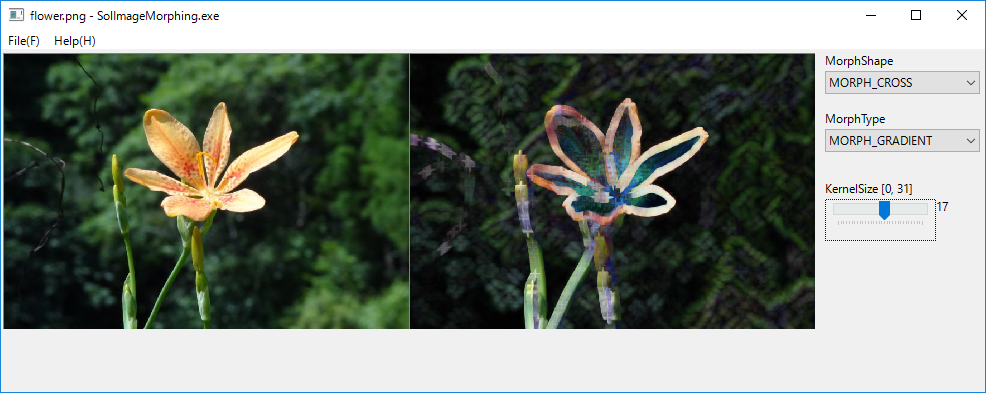

1 Screenshot

2 Source code

/*
 * SolImageMorphing.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


//2017/04/10

//This is a simple example to use cv::morphologyEx.
// See: http://docs.opencv.org/3.2.0/db/df6/tutorial_erosion_dilatation.html
//2017/12/01 Added save, saveAs methods to MainView.

#define _CONSOLE_

#include <sol/ModuleFileName.h>
#include <sol/DropFiles.h>
#include <sol/LabeledTrackBar.h>

#include <sol/LabeledComboBox.h>
#include <sol/FileDialog.h>
#include <sol/Pair.h>
#include <sol/opencv/OpenCVApplicationView.h>
#include <sol/opencv/OpenCVImageView.h>


namespace SOL {

class MainView :public OpenCVApplicationView {
private:

private:
  ////////////////////////////////////////////////////////////////////////////////////////
  //Inner classes start.
  class OriginalImageView :public OpenCVImageView {
  private:
    cv::Mat originalImage;

    //This is a mandatory method, because in parent class it's declared
    //as a pure virtual function.
    cv::Mat& getMat()
    {
      return originalImage;
    }

    void display()
    {
      show(originalImage);
    }

  public:
    OriginalImageView(View* parent, const char* name, Args& args)
    :OpenCVImageView(parent, name, args)
    {
      try {
        const char* filename = (const char*)args.get(XmNimageFileName);
        int imageLoadingFlag = args.get(XmNimageLoadingFlag);
        loadImage(filename, imageLoadingFlag);
      } catch (SOL::Exception ex) {
        caught(ex);
      }
    }

    ~OriginalImageView()
    {
    }

    void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR)
    {
      try {
        originalImage = readImage(filename, imageLoadingFlag);
        refresh();
      } catch (Exception& ex) {
        caught(ex);
      }
    }
  };

  class TransformedImageView :public OpenCVImageView {
  private:
    cv::Mat originalImage;
    cv::Mat transformedImage;
    cv::Mat destImage;

    cv::Mat& getMat()
    {
      return transformedImage;
    }

    void display()
    {
      show(transformedImage);
    }

  public:
    TransformedImageView(View* parent, const char* name, Args& args)
    :OpenCVImageView(parent, name, args)
    {
      try {
        const char* filename = (const char*)args.get(XmNimageFileName);
        int imageLoadingFlag = args.get(XmNimageLoadingFlag);
        loadImage(filename, imageLoadingFlag);
      } catch (SOL::Exception ex) {
        caught(ex);
      }
    }

    ~TransformedImageView()
    {
    }

    void loadImage(const char* filename, int imageLoadingFlag= CV_LOAD_IMAGE_COLOR)
    {
      try {
        originalImage = readImage(filename, imageLoadingFlag);
        transformedImage  = originalImage.clone();
        refresh();
      } catch (Exception& ex) {
        caught(ex);
      }
    }

    void transform(cv::MorphShapes morphShape, cv::MorphTypes morphType, int ksize)
    {
      cv::Mat element = getStructuringElement(morphShape,
                       cv::Size( (ksize/2)*2 +1, (ksize/2)*2 +1),
                       cv::Point( -1, -1) );

      cv::morphologyEx(originalImage, destImage, morphType, element);
      if (destImage.empty()) {
        transformedImage = originalImage.clone();
        refresh();
        MessageBox(NULL, "Failed to cv::morphologyEx", "Fatal Error", MB_OK);
      } else {
        transformedImage = destImage;
        refresh();
      }
    }
  };
  //Inner classes end.
  ////////////////////////////////////////////////////////////////////////////////////////


  StringT<char>                  imageFile;
  StringT<char>                  savedImageFile;

  SmartPtr<OriginalImageView>    originalImage;
  SmartPtr<TransformedImageView> transformedImage;

  int                            morphShape;
  SmartPtr<LabeledComboBox>      morphShapeComboBox;

  int                            morphType;
  SmartPtr<LabeledComboBox>      morphTypeComboBox;

  int                            ksize;
  int                            maxKernelSize;
  SmartPtr<LabeledTrackBar>     ksizeTrackBar;

  FileDialog                     filedlg;

  void updateCaption()
  {
    char caption[MAX_PATH];
    sprintf_s(caption, CountOf(caption), "%s - %s",
        (const char*)imageFile,
        getAppName());
    setText(caption);
  }

  cv::MorphShapes getMorphShape()
  {
    int n = 0;
    Pair<int, cv::MorphShapes> shapes[] = {
      {n++, MORPH_RECT},
      {n++, MORPH_CROSS},
      {n++, MORPH_ELLIPSE}};
    cv::MorphShapes shape = MORPH_RECT;

    for (int i = 0; i<CountOf(shapes); i++) {
      if (shapes[i].first == morphShape) {
        shape = shapes[i].second;
        break;
      }
    }
    return shape;
  }

  cv::MorphTypes getMorphType()
  {
    int n = 0;
    Pair<int, cv::MorphTypes> types[] = {
      {n++, MORPH_OPEN},
      {n++, MORPH_CLOSE},
      {n++, MORPH_GRADIENT},
      {n++, MORPH_TOPHAT},
      {n++, MORPH_BLACKHAT}}
    ;
    cv::MorphTypes type = MORPH_OPEN;
    for (int i = 0; i<CountOf(types); i++) {
      if (types[i].first == morphType) {
        type = types[i].second;
        break;
      }
    }
    return type;
  }


  void selMorphShapeChanged(Action& event)
  {
    morphShape = morphShapeComboBox -> getCurSel();
    transformedImage -> transform(getMorphShape(), getMorphType(), ksize);
  }

  void selMorphTypeChanged(Action& event)
  {
    morphType = morphTypeComboBox -> getCurSel();
    transformedImage -> transform(getMorphShape(), getMorphType(), ksize);
  }


  //Horizontal Scroll event by a horizontal TrackBar
  void trackBarScrolled(Action& action)
  {
    ksize = ksizeTrackBar->getPosition();
    transformedImage -> transform(getMorphShape(), getMorphType(), ksize);
  }

  void resize(int w, int h)
  {
    if (originalImage && transformedImage &&  ksizeTrackBar) {
      originalImage      -> reshape(2,           2,  (w-170)/2-1, h-4);
      transformedImage   -> reshape((w-170)/2+1, 2,  (w-170)/2-1, h-4);

      morphShapeComboBox -> reshape(w-160 ,   2, 155,  50);
      morphTypeComboBox  -> reshape(w-160 ,  60, 155,  50);
      ksizeTrackBar      -> reshape(w-160 , 130, 155,  60);
    }
  }

  void openFile(const char* filename)
  {
    try {
      originalImage     -> loadImage(filename);
      transformedImage  -> loadImage(filename);
      const char* fname = strrchr(filename, '\\');
      if (fname) {
        fname++;
      }
      imageFile = fname;

      transformedImage -> transform(getMorphShape(), getMorphType(), ksize);

      updateCaption();

    } catch (Exception& ex) {
      caught(ex);
    }
  }


  void dropFiles(Action& action)
  {
    char fileName[MAX_PATH] = { 0 };
    DropFiles drop((HDROP)action.getWParam());

    int num = drop.queryFile(0, fileName, CountOf(fileName));
    if(num > 0) {
      if (filedlg.isImageFileName(fileName)) {
        openFile(fileName);
        bringUp();
      } else {
        bringUp(); //Activate and raise this view
        showErrorDialog("Invalid image filename", fileName,  MB_OK);
      }
    }
  }

  void confirm(Action& action)
  {
    int rc = MessageBox(NULL, "Are you sure to close this window?", "Confirmation",
                MB_OKCANCEL|MB_ICONEXCLAMATION);
    if (rc == IDOK) {
      exit(action);
    }
  }

public:
  MainView(OpenCVApplication& applet, const char* name, Args& args)
  :OpenCVApplicationView(applet, name, args)
  {
    try {
      imageFile = "..\\images\\HelloWorld.png";

      int  imageLoadingFlag = CV_LOAD_IMAGE_COLOR;
      Args ar;
      ar.set(XmNimageFileName, imageFile);
      ar.set(XmNimageLoadingFlag, imageLoadingFlag);
      originalImage = new OriginalImageView(this, "", ar);
      originalImage -> addCallback(XmNdropCallback, this,
        (Callback)&MainView::dropFiles, NULL);

      ar.reset();
      ar.set(XmNimageFileName, imageFile);
      ar.set(XmNimageLoadingFlag, imageLoadingFlag);
      transformedImage = new TransformedImageView(this, "", ar);

      ar.reset();
      morphShapeComboBox = new LabeledComboBox(this, "MorphShape", ar);
      const char* shapes[] = {
        "MORPH_RECT",   //0
        "MORPH_CROSS",  //1
        "MORPH_ELLIPSE" //2
      };
      for (int i = 0; i<CountOf(shapes); i++) {
        morphShapeComboBox -> addString(shapes[i]);
      }
      morphShape = 2;

      morphShapeComboBox -> setCurSel(morphShape);
      morphShapeComboBox -> addCallback(XmNselChangeCallback, this,
        (Callback)&MainView::selMorphShapeChanged, NULL);

      ar.reset();
      morphTypeComboBox = new LabeledComboBox(this, "MorphType", ar);
      const char* types[] = {
        "MORPH_OPEN",
        "MORPH_CLOSE",
        "MORPH_GRADIENT",
        "MORPH_TOPHAT",
        "MORPH_BLACKHAT",
      };
      for (int i = 0; i<CountOf(types); i++) {
        morphTypeComboBox -> addString(types[i]);
      }
      morphType = 2;

      morphTypeComboBox -> setCurSel(morphType);
      morphTypeComboBox -> addCallback(XmNselChangeCallback, this,
        (Callback)&MainView::selMorphTypeChanged, NULL);

      maxKernelSize = 31;
      ksize = 4;          //starting kernelSize

      ar.reset();
      ar.set(XmNminimum, 0);
      ar.set(XmNmaximum, 31);
      ar.set(XmNposition, ksize);
      ksizeTrackBar = new LabeledTrackBar(this, "KernelSize", ar);
      ksizeTrackBar -> addCallback(XmNtrackBarScrollCallback, this,
        (Callback)&MainView::trackBarScrolled, NULL);

      addCallback(XmNmenuCallback, IDM_EXIT, this,
          (Callback)&MainView::confirm, NULL);

      transformedImage -> transform(getMorphShape(), getMorphType(), ksize);

      updateCaption();

      ar.reset();
      ar.set(XmNfilter, FileDialog::getImageFilesFilter());
      filedlg.create(this, "OpenFile", ar);

    } catch (Exception& ex) {
      caught(ex);
    }
  }

  ~MainView()
  {
  }

  void open(Action& action)
  {
    Args ar;

    char dir[MAX_PATH] = { 0 };
    if (restoreFileFolder(dir, CountOf(dir))) {
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    try {
      if(filedlg.open()) {

        const char* filename = filedlg.getFileName();
        saveFileFolder(filename);

        openFile(filename);
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  //2017/12/01
  void save(Action& action)
  {
    try {
      if (!savedImageFile.isEmpty()) {
        //Write transformed image into the filename.
        transformedImage->writeImage(savedImageFile);
      } else {
        saveAs(action);
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  //2017/12/01
  void saveAs(Action& action)
  {
    Args ar;

    char dir[MAX_PATH] = { 0 };
    if (restoreFileFolder(dir, CountOf(dir))) {
      ar.set(XmNdirectory, dir);
      filedlg.setValues(ar);
    }

    try {
      if(filedlg.save()) {

        const char* filename = filedlg.getFileName();
        saveFileFolder(filename);

        //Write transformed image into the filename.
        transformedImage->writeImage(filename);
        savedImageFile = filename;
      }
    } catch (Exception& ex) {
      caught(ex);
    }
  }
};
}

//
void main(int argc, char** argv)
{
  try {
    ModuleFileName module(argv[0]);

    const char*  name = module.getAppName();

    OpenCVApplication applet(name, argc, argv);

    Args args;
    args.set(XmNwidth,  1000);
    args.set(XmNheight, 400);
    MainView view(applet, name, args);
    view.realize();

    applet.run();

  } catch (SOL::Exception& ex) {
    caught(ex);
  }
}
