SOL9 2.0 Samples

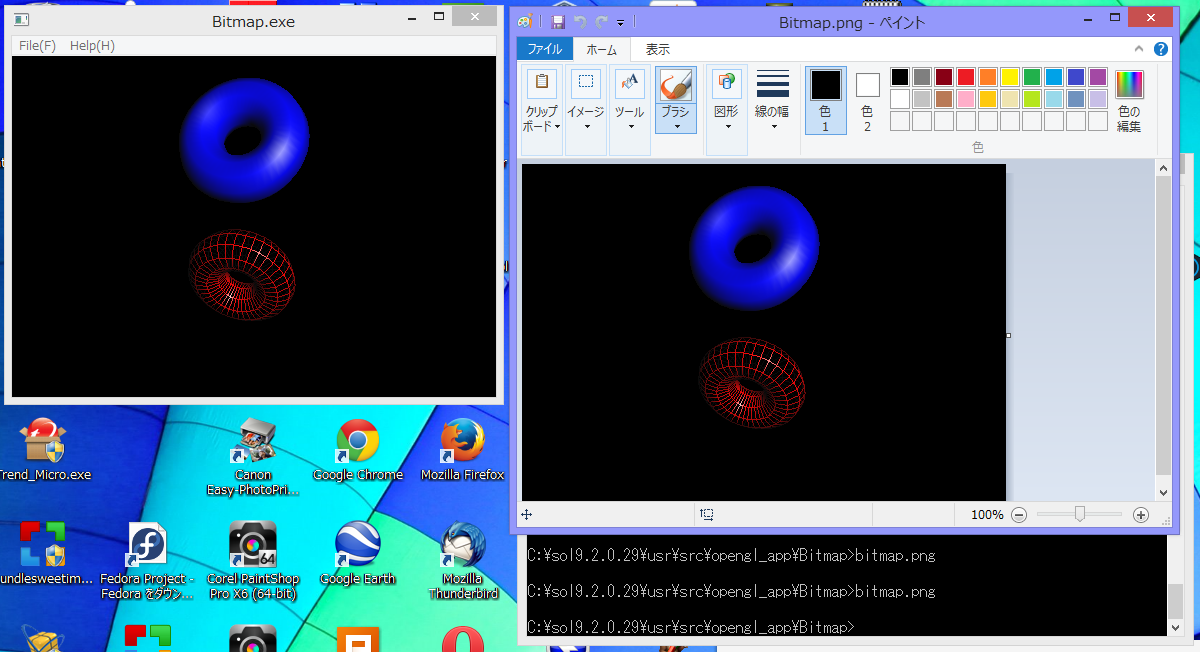

1 Screenshot

2 Source code

/*
 * Bitmap.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


//2015/08/22

#include <sol/FileDialog.h>
#include <sol/opengl/OpenGLMainView.h>
#include <sol/opengl/OpenGLView.h>
#include <sol/opengl/OpenGLGC.h>
#include <sol/opengl/OpenGLLight.h>
#include <sol/opengl/OpenGLMaterial.h>
#include <sol/opengl/OpenGLGeometry.h>
#include <sol/opengl/OpenGLDialog.h>

namespace SOL {

class MainView :public OpenGLMainView {

private:
  //Inner class starts.
  class SimpleView: public OpenGLView {
  private:
    SmartPtr<OpenGLGC> gc;

  public:
    virtual void display()
    {
      if (gc) {
        gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
        gc -> loadIdentity();
        gc -> lookAt(2.0, 4.0, 8.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

        gc -> clearColor(0.0, 0.0, 0.0, 1.0);
        gc -> enable(GL_CULL_FACE);
        gc -> enable(GL_LIGHTING);

        gc -> enable(GL_DEPTH_TEST);
        OpenGLLight light(GL_LIGHT0);
        light.position(10.0, 10.0, 10.0, 1.0);

        OpenGLMaterial material(GL_FRONT);
        material.specular(1.0f, 1.0f, 1.0f, 1.0f);
        material.shininess(100.0);

        OpenGLGeometry geometry;
        gc -> pushMatrix();
        material.diffuse(0.0f, 0.0f, 1.0f, 1.0f); //blue
        gc -> translate(-2.0, 1.0, -6.0);
        gc -> rotate(-40.0, 1.0, 0.0, 0.0);
        geometry.solidTorus(1.0, 1.8, 10.0, 50.0);
        gc -> popMatrix();

        gc -> pushMatrix();
        material.diffuse(1.0f, 0.0f, 0.0f, 1.0f); //red
        gc -> translate(-2.2,-6.0,-6.0);
        gc -> rotate(10.0, 1.0, 0.0, 0.0);
        geometry. wireTorus( 1.0, 1.8, 10.0, 40.0);
        gc -> popMatrix();
      }
    }

    virtual void resize(int w, int h)
    {
      if (w == 0 || h == 0) {
        return;
      }
      if (gc) {
        const float r = (float) w / (float) h;

        gc -> matrixMode(GL_PROJECTION);
        gc -> loadIdentity();
        gc -> frustum(-r, r, -1.0, 1.0, 2.0, 100.0);
        gc -> matrixMode(GL_MODELVIEW);
        gc -> loadIdentity() ;
      }
    }

    virtual void initialize()
    {
      gc = new OpenGLGC();
    }

  public:
    SimpleView(View* parent, const char* name, Args& args)
    :OpenGLView(parent, name, args)
    {
    }

    ~SimpleView()
    {
    }
  };
  //Inner class ends.

private:
  SmartPtr<SimpleView>  view;
  StringT<char>         fileName;
  FileDialog            saveDialog;

  long size(Event& event)
  {
    int width  = 0;
    int height = 0;
    event.getSize(width, height);
    if (view.notNull()) {
      view -> reshape(0, 0, width, height);
      view -> postResizeRequest(width, height);
    }
    return 0L;
  }

  virtual void save(Action& action)
  {
    if (fileName.getLength() > 0) {
      //The following line will redisplay the OpenGLView.
      view -> refresh();
      const char* filename = (const char*)fileName;

      if (StringT<char>::endsWithIgnoreCase(filename, ".jpg") ||
          StringT<char>::endsWithIgnoreCase(filename, ".png")) {
        view -> save(filename);
      } else {
        OpenGLDialog dialog(this);
        dialog.error("Invalid file name (%s). Please specify a file extension to be '.jpg' or '.png'.");
      }
    }
  }
  virtual void saveAs(Action& action)
  {
     saveDialog.popup(action);
    if (action.getResult()) {
      fileName = saveDialog.getFileName();
      save(action);
    }
  }

public:
  MainView(Application& applet, const char* name, Args& args)
  :OpenGLMainView(applet, name,args),
  fileName("")
  {
    Args ar;
    ar.reset();
    ar.set(XmNaccessMode, FileDialog::SAVE);
    saveDialog.create(this, "FileSaveDialog", ar);

    ar.reset();
    view = new SimpleView(this, "", ar);
  }

  ~MainView()
  {
  }
};
}

//
void Main(int argc, char** argv)
{
  glutInit(&argc, argv);

  try {
    const char*  name = appName(argv[0]);
    Application applet(name, argc, argv);

    Args args;
    args.set(XmNwidth,  500);
    args.set(XmNheight, 400);

    MainView view(applet, name, args);
    view.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
}
