SOL9 Sample: QuadMeshedXYZPlanes

SOL9 2.0 Samples

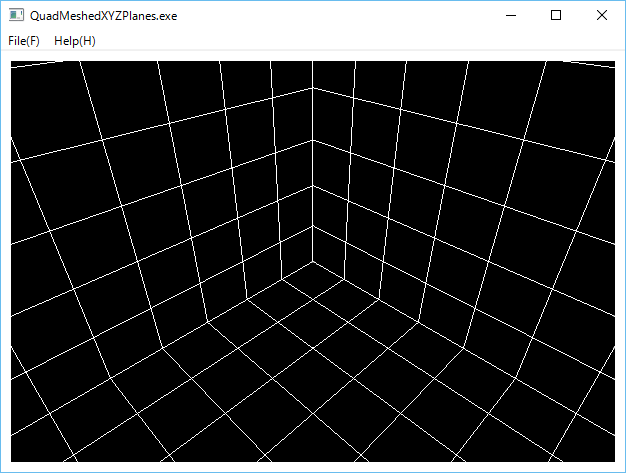

1 Screenshot


2 Source code

/*
 * QuadMeshedXYZPlanes.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


#include <sol/opengl/OpenGLMainView.h>
#include <sol/opengl/OpenGLView.h>
#include <sol/opengl/OpenGLGC.h>
#include <sol/opengl/OpenGLMeshedXZPlane.h>
#include <sol/opengl/OpenGLMeshedXYPlane.h>
#include <sol/opengl/OpenGLMeshedYZPlane.h>

namespace SOL {

class MainView :public OpenGLMainView {

private:
  //Inner class starts
  class SimpleView: public OpenGLView {
  private:
    SmartPtr<OpenGLGC>  gc;
    SmartPtr<OpenGLMeshedXZPlane<GL_QUAD_STRIP, 6, 20> > xzPlane;
    SmartPtr<OpenGLMeshedXYPlane<GL_QUAD_STRIP, 6, 20> > xyPlane;
    SmartPtr<OpenGLMeshedYZPlane<GL_QUAD_STRIP, 6, 20> > yzPlane;

  public:
    virtual void display()
    {
      if (gc) {
        gc -> loadIdentity();
        gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
        //gc->scale(10.0f, 10.0f, 10.0f);

        gc->translate(0.0f, 0.0f, 0.0f);
        gc->rotate(0.0f, 0.0f, 0.0f, 0.0f);
        gc -> lookAt(1.0, 1.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

        gc -> polygonMode(GL_FRONT_AND_BACK,GL_LINE);

        xzPlane -> draw(gc);
        xyPlane -> draw(gc);
        yzPlane -> draw(gc);
      }
    }

    virtual void resize(int w, int h)
    {
     if (w == 0 || h == 0) {
        return;
      }
      if (gc) {
        gc->matrixMode(GL_PROJECTION);
        gc->loadIdentity();

        gc->perspective(50.0f, (GLfloat)w/(GLfloat)h, 0.1f, 50.0f);
        gc -> matrixMode(GL_MODELVIEW);
      }
    }

    virtual void initialize()
    {
      //Write your own initialization procedure
      gc = new OpenGLGC();
      xzPlane = new OpenGLMeshedXZPlane<GL_QUAD_STRIP, 6, 20>(0.0f);
      xyPlane = new OpenGLMeshedXYPlane<GL_QUAD_STRIP, 6, 20>(0.0f);
      yzPlane = new OpenGLMeshedYZPlane<GL_QUAD_STRIP, 6, 20>(0.0f);
    }

  public:
    SimpleView(View* parent, const char* name, Args& args)
    :OpenGLView(parent, name, args)
    {
    }

    ~SimpleView()
    {
    }
  };
  //Inner class ends

private:
  SmartPtr<SimpleView>  view;

  long size(Event& event)
  {
    int w, h;
    event.getSize(w, h);
    if (view) {
      view -> reshape(10, 10, w-20, h-20);
      view -> postResizeRequest(w-20, h-20);
    }
    return 1L;
  }

public:
  MainView(Application& applet, const char* name, Args& args)
  :OpenGLMainView(applet, name, args)
  {
    Args ar;
    view = new SimpleView(this, "", ar);
  }
  ~MainView()
  {
  }
};

}

//
void Main(int argc, char** argv) {
  try {
    const char*  name = appName(argv[0]);
    Application applet(name, argc, argv);

    Args args;
    args.set(XmNwidth, 640);
    args.set(XmNheight,480);

    MainView view(applet, name, args);
    view.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
}
