SOL9 Sample: DetectedObjectHTMLFileGenerator

SOL9 2.0 Samples

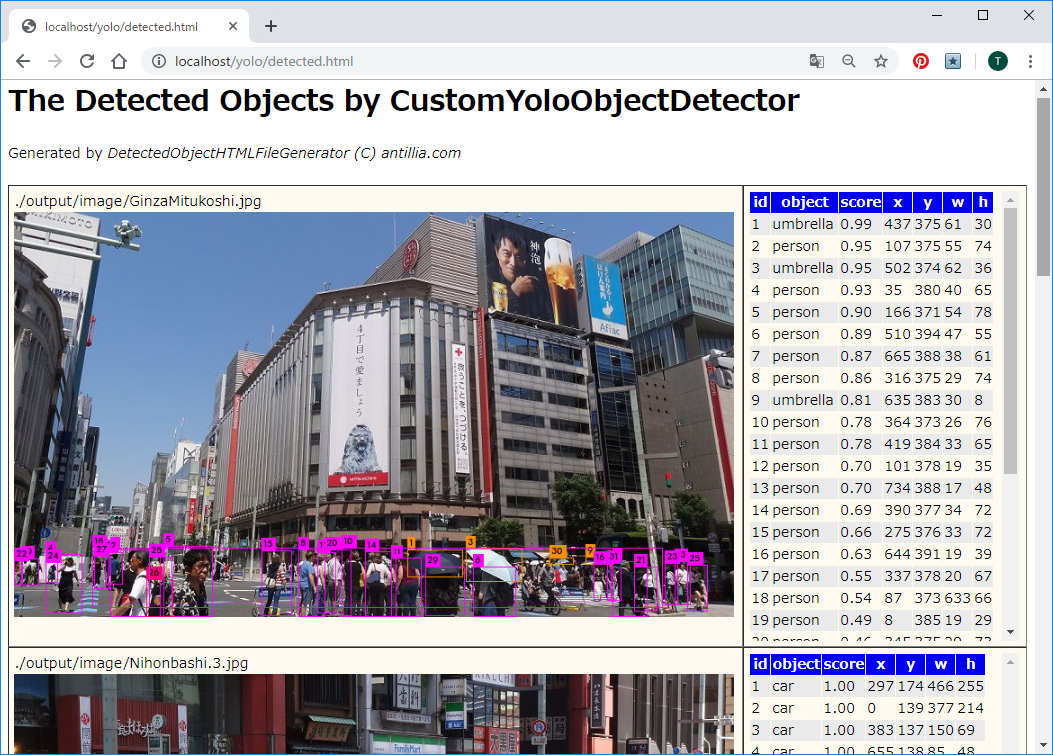

1 Screenshot


2 Source code

/*
 * DetectedObjectHTMLFileGenerator.cpp
 * Copyright (c) 2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */



//2019/06/18

#define _CONSOLE_
#define USE_STD

//#define  OPENCV

#include <sol/yolo3/Detector3.h>

#include <sol/ModuleFileName.h>
#include <sol/Profile.h>
#include <sol/FileFinder.h>
#include <sol/FileFindData.h>
#include <imagehlp.h>

#pragma comment(lib, "imagehlp.lib")

namespace SOL {

class DetectedObjectHTMLFileGenerator {

  std::string             application;
  SmartPtr<Detector3>     detector;

  std::string             darknet_root;
  std::string             cfg_filename;
  std::string             coco_filename;
  std::string             weight_filename;

  std::vector<std::string>       class_names;

  std::string             inputImageFolder;
  std::string             fileType  = "jpg";

  std::string             outputBaseFolder ="C:\\Apach24\\htdocs\\yolo\\"; //Default value. See a value in INI file.

  const std::string       outputSubFolder  = "output\\";
  const std::string       csvFolder        = "csv\\";
  const std::string       imageFolder      = "image\\";

  std::string             outputCsvFolder  = outputBaseFolder + outputSubFolder + csvFolder;
  std::string             outputImageFolder= outputBaseFolder + outputSubFolder + imageFolder;

  std::string             htmlTemplateFile = ".\\template.html";       //See a value of INI file
  std::string             htmlfilename     = "detected.html";          //See a value of INI file

  const std::string       outputCsvFolder4Html   = "./output/csv/";    //Used in a html file.
  const std::string       outputImageFolder4Html = "./output/image/";  //Used in a html file.

  std::string             outputHtmlFilepath   = "C:\\Apach24\\htdocs\\yolo\\detected.html"; //Default value


  void readIniFile(const char* inifile)
  {
    // Read some YOLO configuration file names from the ini file ".\\YoloObjectDetector.ini".
    char buffer[256] = { 0 };

    GetPrivateProfileString("DARKNET_ROOT","filename", "", buffer, sizeof(buffer), inifile);
    darknet_root    = buffer;
    printf("DARKNET_ROOT:%s\n", buffer);


    GetPrivateProfileString("CFG_FILE",    "filename", "", buffer, sizeof(buffer), inifile);
    cfg_filename    = buffer;
    printf("CFG_FILE:%s\n", buffer);

    GetPrivateProfileString("WEIGHT_FILE", "filename", "", buffer, sizeof(buffer), inifile);
    weight_filename = buffer;
    printf("WEIGHT_FILE:%s\n", buffer);

    GetPrivateProfileString("COCO_FILE",   "filename", "", buffer, sizeof(buffer), inifile);
    coco_filename   = buffer;
    printf("COCO_FILE:%s\n", buffer);

    GetPrivateProfileString("INPUT",   "foldername", "", buffer, sizeof(buffer), inifile);
    inputImageFolder   = buffer;

    printf("INPUT:%s\n", buffer);
    if (!PathFileExists( inputImageFolder.c_str()) ){
      throw IException("Not found inputImageFolder %s", inputImageFolder.c_str());
    }

    GetPrivateProfileString("INPUT",   "filetype", "", buffer, sizeof(buffer), inifile);
    fileType   = buffer;
    printf("FileType:%s\n", buffer);

    GetPrivateProfileString("TEMPLATE",   "filename", "", buffer, sizeof(buffer), inifile);
    htmlTemplateFile   = buffer;
    printf("htmlTemplate:%s\n", buffer);

    //
    GetPrivateProfileString("OUTPUT",   "foldername", "", buffer, sizeof(buffer), inifile);
    outputBaseFolder   = buffer;

    if (!PathFileExists( outputBaseFolder.c_str()) ){
      if (!MakeSureDirectoryPathExists(outputBaseFolder.c_str() )) {
        throw IException("Failed to create %s", outputBaseFolder.c_str());
      } else {
        printf("Created a folder %s\n", outputBaseFolder.c_str());
      }
    }

    printf("OUTPUT: outputBaseFolder %s\n", buffer);

    GetPrivateProfileString("OUTPUT",   "htmlfilename", "", buffer, sizeof(buffer), inifile);
    htmlfilename   = buffer;
    printf("OUTPUT: outputBaseFolder %s\n", buffer);

    outputCsvFolder   = outputBaseFolder + outputSubFolder + csvFolder;
    outputImageFolder = outputBaseFolder + outputSubFolder + imageFolder;

    if (!PathFileExists( outputCsvFolder.c_str()) ){
      if (!MakeSureDirectoryPathExists(outputCsvFolder.c_str() )) {
        throw IException("Failed to create %s", outputCsvFolder.c_str());
      } else {
        printf("Created a folder %s\n", outputCsvFolder.c_str());
      }
    }
    if (!PathFileExists( outputImageFolder.c_str()) ){
      if (!MakeSureDirectoryPathExists(outputImageFolder.c_str() )) {
        throw IException("Failed to create %s", outputImageFolder.c_str());
      } else {
        printf("Created a folder %s\n", outputImageFolder.c_str());
      }
    }
    outputHtmlFilepath = outputBaseFolder  + htmlfilename;
    printf("%s\n", outputHtmlFilepath.c_str());

  }


  void detectAll(std::vector<std::pair<std::string, std::string>>& paired_filenames)
  {
    const std::string sep = "\\";

    const std::string csv_ext = ".csv";
    const std::string jpg_ext = ".jpg";

    std::string pattern = inputImageFolder + std::string("\\*.") + fileType;  //jpg
    printf("pattern %s\n", pattern.c_str());

    FileFinder finder(pattern.c_str());
    FindData findData = { 0 };

    BOOL rc = finder.getFirst(&findData);
    bool looping = true;

    while (rc) {
      try {
        std::string imageFilename = findData.cFileName;
        printf("imageFilename %s\n", imageFilename.c_str());

        std::string inImageFilepath = inputImageFolder + sep + imageFilename;
        auto dotpos = imageFilename.rfind(".");
        std::string nameOnly  = imageFilename.substr(0, dotpos);

        printf("Real inImageFilepath:%s : nameOnly:%s\n", inImageFilepath.c_str(), nameOnly.c_str());
        std::string fullOutImageFilepath = outputImageFolder + nameOnly;// + jpg_ext;  //Output image is a jpeg file.

        std::string fullOutCsvFilepath   = outputCsvFolder   + imageFilename + csv_ext;

        printf("Real OutImageFullpath %s\n", fullOutImageFilepath.c_str());

        printf("Real OutCsvFullpath  %s\n", fullOutCsvFilepath.c_str());

        image im = detector -> detect_image(inImageFilepath.c_str(), fullOutImageFilepath.c_str(), fullOutCsvFilepath.c_str());
        free_image(im);

        std::string imageFilepath4Html = outputImageFolder4Html + nameOnly + jpg_ext;

        std::string csvFilepath4Html   = outputCsvFolder4Html   + imageFilename + csv_ext;
        printf("Relative filepath %s %s in HtmlFile\n", imageFilepath4Html.c_str(), csvFilepath4Html.c_str());

        std::pair<std::string, std::string> pair(imageFilepath4Html, csvFilepath4Html);

        paired_filenames.push_back(pair);

        rc = finder.getNext(&findData);

      } catch (...) {
        break;
      }
    }
  }


  const char** getListViewHeader(int& number)
  {
    static const char* LISTVIEW_HEADER[] = {"id ", "object ", "score", "  x ", "  y ", "  w ", "  h "};
    number = CountOf(LISTVIEW_HEADER);
    return LISTVIEW_HEADER;
  }


  void createHtmlFile(std::vector<std::pair<std::string, std::string>>& paired_filenames)
  {
     const char* format = "<tr>\n"
                          "<td valign=\"top\">%s<br>\n"
                          "<img src=\"%s\"></td>\n"
                          "<td>\n"
                          "<div style=\"height:500px; width:300px; overflow-y:scroll;\">\n"
                          "<div class=\"table_csv\" filename=\"%s\"></div>\n"
                          "</div>\n"
                          "</td>\n"
                          "</tr>\n";

    std::ifstream ifs(htmlTemplateFile);
    if (!ifs) {
      throw IException("File not found %s", htmlTemplateFile.c_str());
    }
    std::ofstream ofs(outputHtmlFilepath);
    if (!ofs) {
      throw IException("File not found %s", outputHtmlFilepath.c_str());
    }


    while (!ifs.eof()) {
      std::string line;
      std::getline(ifs, line);

      if (line.find("<!-- CODE_GENERATION -->") !=std::string::npos) {
        char buffer[2000];

        for (auto it = paired_filenames.begin(); it != paired_filenames.end();  it++) {
          std::pair<std::string, std::string>& pair = *it;
          std::string imageFilepath = pair.first;
          std::string csvFilepath   = pair.second;
          sprintf(buffer, format, imageFilepath.c_str(), imageFilepath.c_str(), csvFilepath.c_str());
          printf("%s\n", buffer);
          ofs.write(buffer, strlen(buffer));
        }

      } else {
        //printf("%s", line.c_str());
        ofs<<line<<"\n";
      }
    }
    ifs.close();
    ofs.close();
  }


public:
  DetectedObjectHTMLFileGenerator(const char* name)
  {
    application = name;
    printf("application %s\n", application.c_str());
  }

  void run()
  {
    try {
      const char* inifile = "./DetectedObjectHTMLFileGenerator.ini";

      readIniFile(inifile);

      detector = new Detector3( darknet_root,
                                cfg_filename,
                                weight_filename,
                                coco_filename);
      // pair (outImageFilepath4Html, ouputCsvFilepath4Html)
      std::vector<std::pair<std::string, std::string>> paired_filenames;
      detectAll(paired_filenames);

      createHtmlFile(paired_filenames);
    } catch (Exception& ex) {
      caught(ex);
    }
  }

  ~DetectedObjectHTMLFileGenerator()
  {
  }
};
}


//
void main(int argc, char** argv)
{
  try {
    ModuleFileName module(argv[0]);

    const char*  name = module.getAppName();

    DetectedObjectHTMLFileGenerator generator(name);

    generator.run();

  } catch (SOL::Exception& ex) {
    caught(ex);
  }
}


Last modified: 18 Jun. 2019

Copyright (c) 2019 Antillia.com ALL RIGHTS RESERVED.
