  SolApplets: SolWMIClassBrowser

  SolApplets   > SolWMIClassBrowser


1 SolWMIClassBrowser

  SolWMIClassBrowser is a Windows GUI tool to browse all WMI namespaces and WMI classes on a computer. See Figures 1 and 2.

This tool can be used to inspect a WMI class and execute a WQL query for each class to get Windows System information. See Figures 4 and 5.
  Modified to display a result of 'Exe Query' in an XML format (5 Oct 2012). See Figures 5

See also the following WMI console applications of SOL9 library samples:
  • 'src/console_app/wmi/SWbemNameSpaceEnumerator'

  • 'src/console_app/wmi/SWbemClassEnumerator'

  • 'src/console_app/wmi/SWbemClassInspector'

  • 2 Download

      You can download the latest SolWMIClassBrowser 5 Oct 2012): (SolWMIClassBrowser.zip)

    3 How to use it?

    1. Run SolWMIClassBrowser program on your desktop, then a Windows window will be displayed. See Figure 1.
    It has a treeview in the left pane and a listview in the right pane.
    A tree of all WMI namespaces on the computer will be displayed in the left treeview.

    2. Click a namespace in the left treeview, and all classse contained in the namespace will be displayed in the
    right listview. See Figure 2

    3. Click a right button of a mouse on a class name in the right listview, and a context menu for the class will
    be displayed. See Figure 3.

    4. Select [Inspect Class] item in the menu, and a class informatiion will be displayed in an XML format. See Figure 4.

    5. Select [Exec Query] item in the menu, and a query result will be displayed in an XML format. See Figure 5.

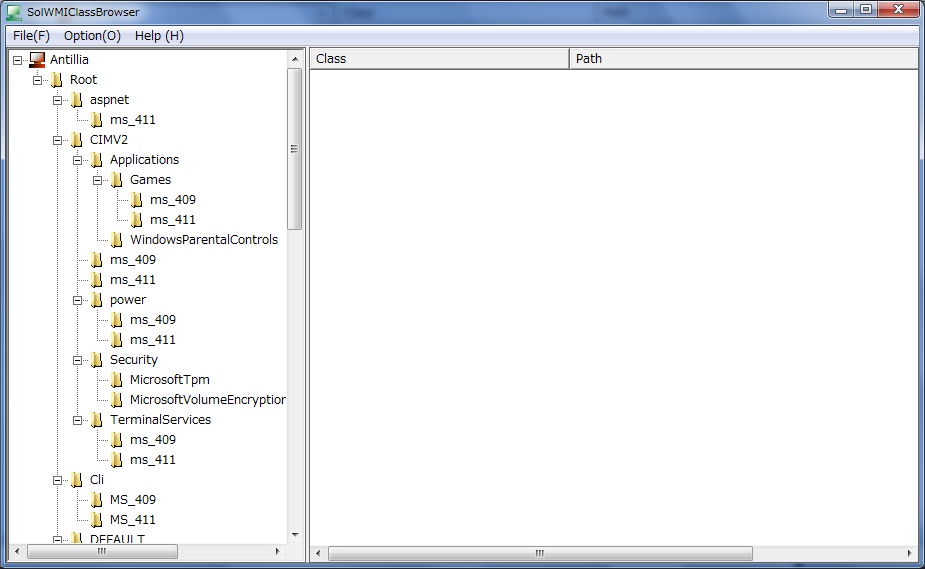

    Figure 1 SolWMIClassBrowser Namespaces

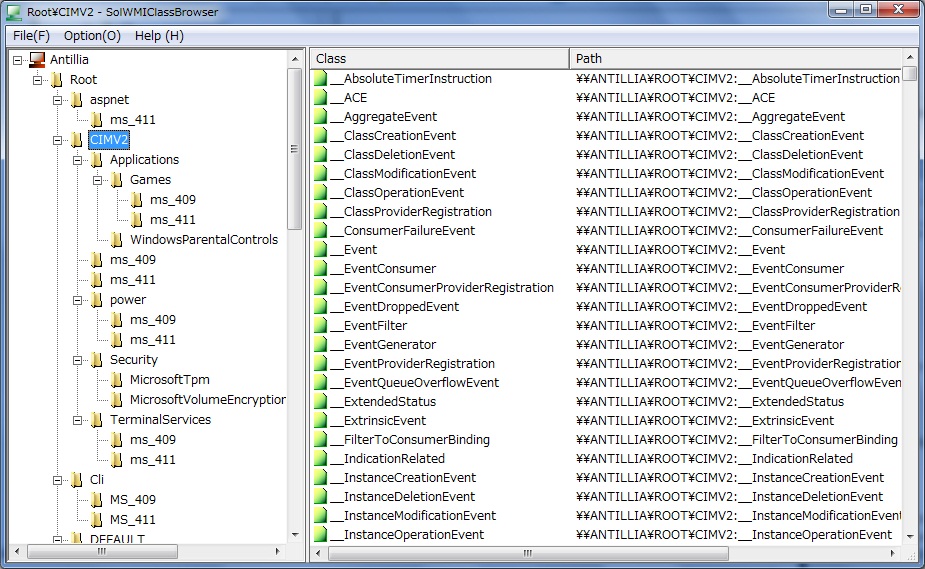

    Figure 2 SolWMIClassBrowser Classes

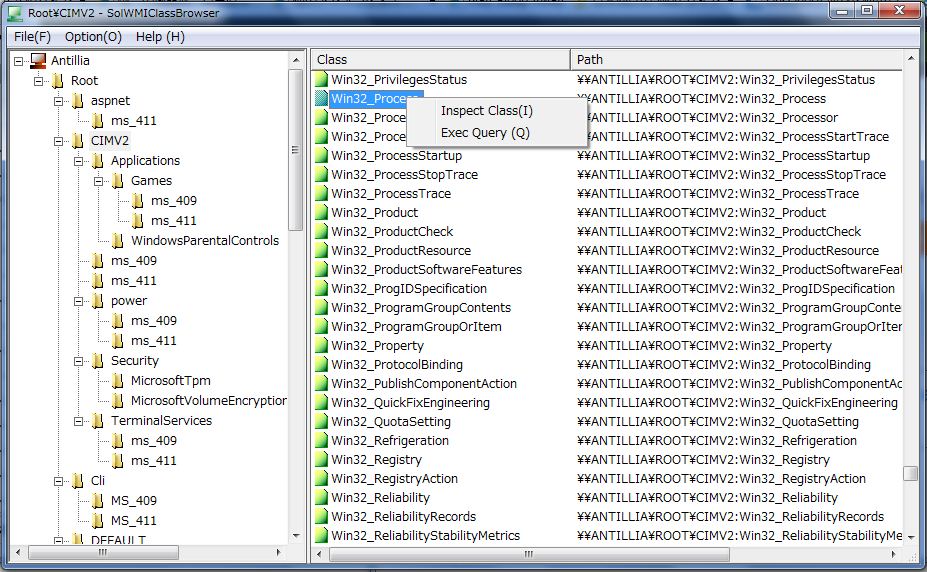

    Figure 3 SolWMIClassBrowser ContextMenu

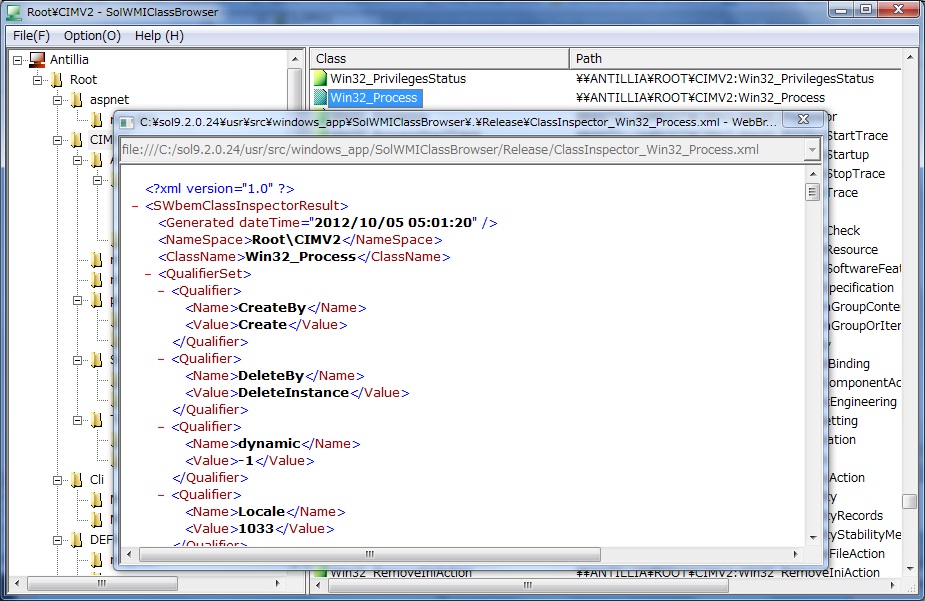

    Figure 4 SolWMIClassBrowser InspectClass

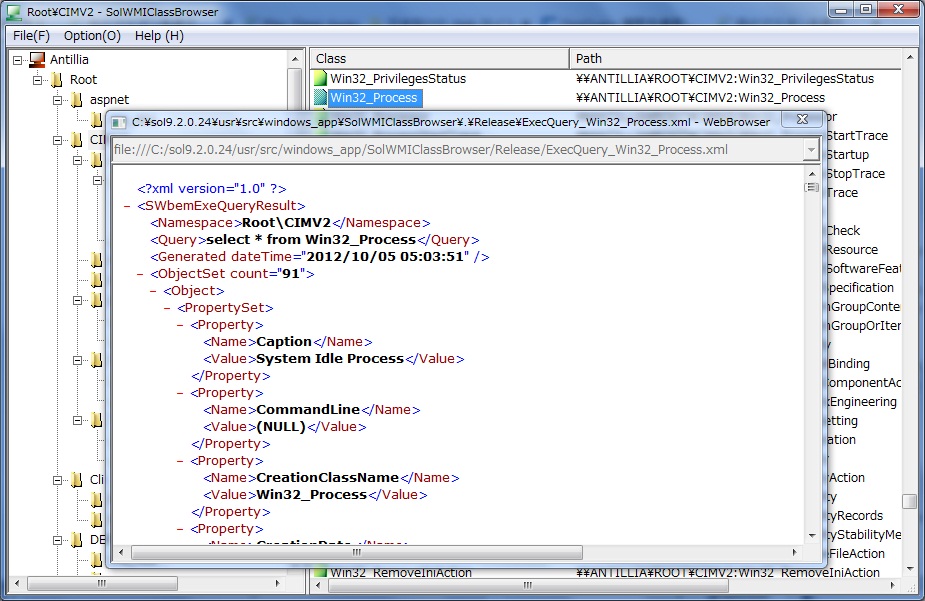

    Figure 5 SolWMIClassBrowser ExecQuery
