VIZ++ Samples

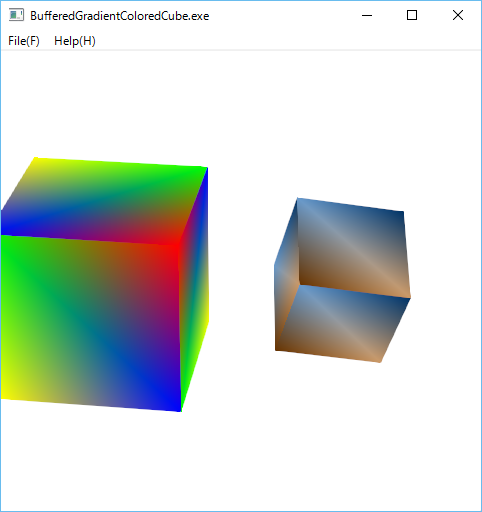

1 Screenshot

2 Source code

/*
 * BufferedGradientColoredCube.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


#include <viz++/opengl/OpenGLMainView.h>
#include <viz++/opengl/OpenGLGC.h>
#include <viz++/opengl/OpenGLColoredCube.h>
#include <viz++/openglarb/OpenGLBufferedShape.h>

#include "Resource.h"

namespace VIZ {

class MainView :public OpenGLMainView {

private:
  SmartPtr<OpenGLGC>              gc;
  SmartPtr<OpenGLColoredCube>     cube1;
  SmartPtr<OpenGLColoredCube>     cube2;
  SmartPtr<OpenGLBufferedShape>   shape1;
  SmartPtr<OpenGLBufferedShape>   shape2;

public:
  virtual void display()
  {
    if (gc && shape1 && shape2) {
      gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
      gc -> loadIdentity();
      gc -> clearColor(1.0, 1.0, 1.0, 1.0);

      try {
        //Draw the first shape1.
        gc->pushMatrix();
          gc -> translate(-1.5f,0.0f,-1.0f);
          gc -> lookAt(2.0, 8.0, 15.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);
          shape1->draw(gc);
        gc->popMatrix();

        //Draw the second shape2.
        gc->pushMatrix();
          gc -> translate(1.8f,0.0f,-4.0f);
          gc -> lookAt(-4.0, -16.0, 20.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);
          shape2->draw(gc);
        gc->popMatrix();

      } catch (Exception& ex) {
        caught(ex);
      }
    }
  }

  virtual void resize(int w, int h)
  {
    if (w == 0 || h == 0) {
      return;
    }
    if (gc) {
      gc -> matrixMode(GL_PROJECTION);
      gc -> loadIdentity();
      gc -> perspective(16.0, (double)w / (double)h, 0.5, 40.0);

      gc -> matrixMode(GL_MODELVIEW);
    }
  }

  virtual void initialize()
  {
    gc = new OpenGLGC();

    gc -> matrixMode(GL_PROJECTION);
    gc -> loadIdentity();

    gc -> enable( GL_DEPTH_TEST );
    gc -> frustum(1 , -1 , -1 , 1 , 1 , 10);
    gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    try {
      cube1 = new OpenGLColoredCube();
      cube2 = new OpenGLColoredCube();

      Color3<GLfloat> colorsForEachVertex1[] = {
        //face 1:
        { 1.0f, 0.0f, 0.0f},
        { 0.0f, 1.0f, 0.0f},
        { 0.0f, 0.0f, 1.0f},
        { 1.0f, 1.0f, 0.0f},

        //face 2:
        { 1.0f, 0.0f, 0.0f},
        { 0.0f, 1.0f, 0.0f},
        { 0.0f, 0.0f, 1.0f},
        { 1.0f, 1.0f, 0.0f},

        //face 3:
        { 1.0f, 0.0f, 0.0f},
        { 0.0f, 1.0f, 0.0f},
        { 0.0f, 0.0f, 1.0f},
        { 1.0f, 1.0f, 0.0f},

        //face 4:
        { 1.0f, 0.0f, 0.0f},
        { 0.0f, 1.0f, 0.0f},
        { 0.0f, 0.0f, 1.0f},
        { 1.0f, 1.0f, 0.0f},

        //face 5:
        { 1.0f, 0.0f, 0.0f},
        { 0.0f, 1.0f, 0.0f},
        { 0.0f, 0.0f, 1.0f},
        { 1.0f, 1.0f, 0.0f},

        //face 6:
        { 1.0f, 0.0f, 0.0f},
        { 0.0f, 1.0f, 0.0f},
        { 0.0f, 0.0f, 1.0f},
        { 1.0f, 1.0f, 0.0f},
      };

      cube1->setVerticesColors(colorsForEachVertex1, CountOf(colorsForEachVertex1));

      Color3<GLfloat> colorsForEachVertex2[] = {
        //face 1:
        { 0.0f, 0.2f, 0.4f},
        { 0.4f, 0.6f, 0.8f},
        { 0.8f, 0.6f, 0.4f},
        { 0.4f, 0.2f, 0.0f},

        //face 2:
        { 0.0f, 0.2f, 0.4f},
        { 0.4f, 0.6f, 0.8f},
        { 0.8f, 0.6f, 0.4f},
        { 0.4f, 0.2f, 0.0f},

        //face 3:
        { 0.0f, 0.2f, 0.4f},
        { 0.4f, 0.6f, 0.8f},
        { 0.8f, 0.6f, 0.4f},
        { 0.4f, 0.2f, 0.0f},

        //face 4:
        { 0.0f, 0.2f, 0.4f},
        { 0.4f, 0.6f, 0.8f},
        { 0.8f, 0.6f, 0.4f},
        { 0.4f, 0.2f, 0.0f},

        //face 5:
        { 0.0f, 0.2f, 0.4f},
        { 0.4f, 0.6f, 0.8f},
        { 0.8f, 0.6f, 0.4f},
        { 0.4f, 0.2f, 0.0f},

        //face 6:
        { 0.0f, 0.2f, 0.4f},
        { 0.4f, 0.6f, 0.8f},
        { 0.8f, 0.6f, 0.4f},
        { 0.4f, 0.2f, 0.0f},
      };
      cube2->setVerticesColors(colorsForEachVertex2, CountOf(colorsForEachVertex2));

      shape1 = new OpenGLBufferedShape(cube1);
      shape2 = new OpenGLBufferedShape(cube2);

    } catch (Exception& ex) {
      caught(ex);
    }
  }

public:
  MainView(OpenGLApplet& applet, int width, int height, const char* name)
  :OpenGLMainView(applet, width, height, name)
  {
  }

  ~MainView()
  {
  }
};
}

//
int main(int argc, char** argv)
{
  try {
    ModuleFileName module;
    const char*  name = module.getAppName();

    OpenGLApplet applet(argc, argv);

    MainView view(applet, 480, 480, name);
    view.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
  return 0;
}
