VIZ++ Samples

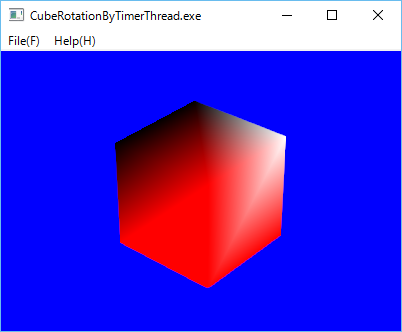

1 Screenshot

2 Source code

/*
 * CubeRotationByTimerThread.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


#include <viz++/opengl/OpenGLTimerThread.h>

#include <viz++/opengl/OpenGLMainView.h>

#include <viz++/opengl/OpenGLGC.h>

#include <viz++/opengl/OpenGLClientState.h>

#include "Resource.h"

namespace VIZ {

class MainView :public OpenGLMainView {

private:
  SmartPtr<OpenGLGC>          gc;
   float                       angle;
  SmartPtr<OpenGLTimerThread> timerThread;
  int                         renderingInterval;
  CriticalSection             criticalSection;

public:
  virtual void display()
  {
    criticalSection.enter();
    angle += 0.2f;

    static GLfloat vertices[] = {
      -0.5f, -0.5f,  0.5f,
       0.5f, -0.5f,  0.5f,
       0.5f,  0.5f,  0.5f,
      -0.5f,  0.5f,  0.5f,

      -0.5f, -0.5f, -0.5f,
       0.5f, -0.5f, -0.5f,
       0.5f,  0.5f, -0.5f,
      -0.5f,  0.5f, -0.5f,

    };

    //Colors(RGBAs) for the 5 vertices
    static GLfloat colors[] = {

      1.0f, 0.0f, 0.0f,
      0.0f, 1.0f, 0.0f,
      0.0f, 0.0f, 1.0f,
      1.0f, 1.0f, 1.0f,

      1.0f, 0.0f, 0.0f,
      0.0f, 1.0f, 0.0f,
      0.0f, 0.0f, 1.0f,
      1.0f, 1.0f, 1.0f,
    };

    //Indices for the 4 triangles.
    static GLint indices[] = {
      // front
      0, 1, 2,
      2, 3, 0,
      // top
      3, 2, 6,
      6, 7, 3,
      // back
      7, 6, 5,
      5, 4, 7,
      // bottom
      4, 5, 1,
      1, 0, 4,
      // left
      4, 0, 3,
      3, 7, 4,
      // right
      1, 5, 6,
      6, 2, 1,
    };

    if (gc ) {
      gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
      gc -> loadIdentity();

      gc -> translate(0.0f,0.0f,-1.0f);
      gc -> lookAt(2.0, 4.0, 6.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

      //Rotation around y-axis.
      gc -> rotate(angle, 0.0, 1.0, 0.0);

      try {
        OpenGLClientState state1(GL_VERTEX_ARRAY);
        OpenGLClientState state2(GL_COLOR_ARRAY);

        gc -> vertexPointer(3, GL_FLOAT, 0, vertices);
        gc -> colorPointer (4, GL_FLOAT, 0, colors);

        gc -> drawElements(GL_TRIANGLES, CountOf(indices), GL_UNSIGNED_INT, indices);

      } catch (Exception& ex) {
        caught(ex);
      }
    }
    criticalSection.leave();

  }

  virtual void resize(int w, int h)
  {
    if (w == 0 || h == 0) {
      return;
    }
    if (gc) {
      gc -> matrixMode(GL_PROJECTION);
      gc -> loadIdentity();
      gc -> perspective(16.0, (double)w / (double)h, 0.5, 40.0);

      gc -> matrixMode(GL_MODELVIEW);
    }
  }

  virtual void initialize()
  {
    gc = new OpenGLGC();

    gc -> matrixMode(GL_PROJECTION);
    gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    gc -> loadIdentity();
    gc -> matrixMode(GL_MODELVIEW);

    gc -> enable( GL_DEPTH_TEST );
    gc -> frustum(1 , -1 , -1 , 1 , 1 , 10);
    gc -> clearColor(0.0, 0.0, 1.0, 1.0);

    timerThread = new OpenGLTimerThread(this, renderingInterval);
    timerThread -> start();
  }

public:
  MainView(OpenGLApplet& applet, int width, int height, const char* name)
  :OpenGLMainView(applet, width, height, name)
  {
    renderingInterval = 10;
  }

  ~MainView()
  {
  }
};
}

//
int main(int argc, char** argv)
{
  try {
    ModuleFileName module;
    const char*  name = module.getAppName();
    OpenGLWaitableApplet applet(argc, argv);

    MainView view(applet, 400, 300, name);
    view.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
  return 0;
}
