VIZ++ Samples

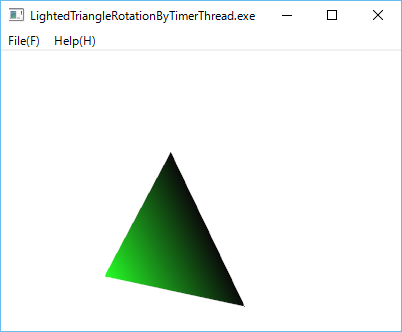

1 Screenshot

2 Source code

/*
 * LightedTriangleRotationByTimerThread.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


#include <viz++/opengl/OpenGLTimerThread.h>
#include <viz++/opengl/OpenGLMainView.h>
#include <viz++/opengl/OpenGLGC.h>

#include <viz++/opengl/OpenGLLight.h>
#include <viz++/opengl/OpenGLMaterial.h>

#include <viz++/opengl/Vertex3.h>
#include <viz++/opengl/Color4.h>
#include <viz++/opengl/FaceIndices.h>

#include <viz++/opengl/OpenGLClientState.h>
#include <viz++/opengl/OpenGLTriangleSurfaces.h>

#include "Resource.h"

namespace VIZ {

class MainView :public OpenGLMainView {

private:
  SmartPtr<OpenGLGC>              gc;
  SmartPtr<OpenGLTriangleSurfaces> surfaces;

  float                       angle;
  SmartPtr<OpenGLTimerThread> timerThread;
  int                         renderingInterval;
  CriticalSection             criticalSection;

public:
  virtual void display()
  {
    criticalSection.enter();
    angle += 0.2f;

    static Vertex<3> vertices[] = {
      //Face 1:
      {-1.0,-1.0, 1.0 }, //0
      { 1.0,-1.0, 1.0 }, //1
      { 0.0, 1.0, 1.0 }, //2
    };

    static Color4 colors[] = {
      {1.0f, 0.4f, 0.2f, 1.0f},
    };

    static FaceIndices<3> indices[] = {
      {0, 1, 2}   //Triangle
    };


    static Normal3* normals = NULL;
    static size_t numNormals = 0;
    if (surfaces == NULL) {
      surfaces = new OpenGLTriangleSurfaces(vertices, CountOf(vertices), indices, CountOf(indices));
      normals = surfaces->calculateSurfaceNormals(numNormals);
    }

    if (gc ) {
      gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
      gc -> loadIdentity();

      try {
        gc -> clearColor(1.0, 1.0, 1.0, 1.0);

        gc -> translate(0.0f,0.0f, 0.0f);
        gc -> lookAt(0.0, 6.0, 12.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0);

        gc -> rotate(-angle, 0.0, 1.0, 0.0);

        OpenGLClientState state1(GL_VERTEX_ARRAY);
        OpenGLClientState state2(GL_COLOR_ARRAY);
        OpenGLClientState state3(GL_NORMAL_ARRAY);
        gc -> vertexPointer(3, GL_FLOAT, 0, vertices);
        gc -> colorPointer (4, GL_FLOAT, 0, colors);
        gc -> normalPointer(GL_FLOAT,  0,   normals);
        gc->frontFace(GL_CCW);
        gc->enable(GL_CULL_FACE);

        gc -> enable(GL_LIGHTING);

        OpenGLLight light(GL_LIGHT0);
        light.position(0, 0.0, 1.0, 0.0);

        OpenGLMaterial material(GL_FRONT);
        material.specular(1.0f, 1.0f, 1.0f, 1.0f); //white);
        material.shininess(50.0);

        material.diffuse(0.0f, 1.0f, 0.0f, 1.0f);  //green;

        gc->cullFace(GL_BACK);
        gc -> drawElements(GL_TRIANGLES, CountOf(indices)*3, GL_UNSIGNED_INT, indices);

        gc->cullFace(GL_FRONT);
        gc -> drawElements(GL_TRIANGLES, CountOf(indices)*3, GL_UNSIGNED_INT, indices);

      } catch (Exception& ex) {
        caught(ex);
      }
    }
    criticalSection.leave();
  }

  virtual void resize(int w, int h)
  {
    if (w == 0 || h == 0) {
      return;
    }
    if (gc) {
      gc -> matrixMode(GL_PROJECTION);
      gc -> loadIdentity();
      gc -> perspective(16.0, (double)w / (double)h, 0.5, 40.0);

      gc -> matrixMode(GL_MODELVIEW);
    }
  }

  virtual void initialize()
  {
    gc = new OpenGLGC();

    gc -> matrixMode(GL_PROJECTION);
    gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    gc -> loadIdentity();
    gc -> matrixMode(GL_MODELVIEW);

    gc -> enable( GL_DEPTH_TEST );
    gc -> frustum(1 , -1 , -1 , 1 , 1 , 10);

    timerThread = new OpenGLTimerThread(this, renderingInterval);
    timerThread -> start();
  }


public:
  MainView(OpenGLApplet& applet, int width, int height, const char* name)
  :OpenGLMainView(applet, width, height, name)
  {
    renderingInterval = 20;
  }

  ~MainView()
  {
  }
};
}

//
int main(int argc, char** argv)
{
  try {
    ModuleFileName module;
    const char*  name = module.getAppName();
    OpenGLWaitableApplet applet(argc, argv);

    MainView view(applet, 400, 300, name);
    view.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
  return 0;
}
