VIZ++ Samples

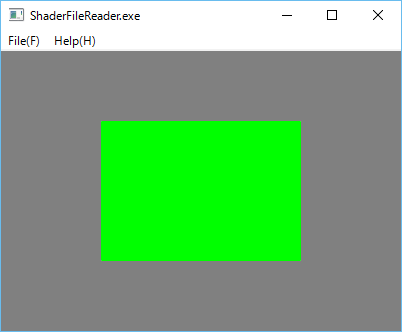

1 Screenshot

2 Source code

/*
 * ShaderFileReader.cpp
 * Copyright (c) 2015 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
 */


#include <viz++/ModuleFileName.h>
#include <viz++/opengl/OpenGLMainView.h>

#include <viz++/opengl/OpenGLGC.h>
#include <viz++/opengl/OpenGLVertex3.h>
#include <viz++/opengl/OpenGLClientState.h>

#include <viz++/opengl2/OpenGLVertexShader.h>
#include <viz++/opengl2/OpenGLFragmentShader.h>
#include <viz++/opengl2/OpenGLProgram.h>
#include <viz++/opengl2/OpenGLVertexAttribute.h>

#include "Resource.h"

namespace VIZ {

class MainView :public OpenGLMainView {

private:
    SmartPtr<OpenGLGC>          gc;
    SmartPtr<OpenGLProgram>     program;

public:
  virtual void display()
  {
    if (gc && program) {
      gc -> matrixMode(GL_PROJECTION);
      gc -> loadIdentity();
      gc -> clear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

      program -> use();
      OpenGLClientState clientState(GL_VERTEX_ARRAY);
      clientState.enable();

      GLint pos = program -> getAttributeLocation("pos");
      OpenGLVertexAttribute attribute(pos);
      attribute.enableArray();
      //QUAD
      const GLfloat vertices[] = {
        -0.5f, 0.5f, 0.0f,
         0.5f, 0.5f, 0.0f,
         0.5f,-0.5f, 0.0f,
        -0.5f,-0.5f, 0.0f
      };
      attribute.setPointer(3, GL_FLOAT, GL_FALSE, 0, vertices);

      gc -> drawArrays(GL_QUADS, 0, 4);
      clientState.disable();
    }
  }

  virtual void resize(int w, int h)
  {
    if (w == 0 || h == 0) {
      return;
    }
    if (gc) {
      gc -> matrixMode(GL_PROJECTION);
      gc -> loadIdentity();
      gc -> perspective(16.0, (double)w / (double)h, 0.5, 40.0);

      gc -> matrixMode(GL_MODELVIEW);
    }
  }

  virtual void initialize()
  {
    try {
      gc = new OpenGLGC();
      gc -> matrixMode(GL_PROJECTION);
      gc -> loadIdentity();
      gc -> enable( GL_DEPTH_TEST );
      gc -> frustum(1 , -1 , -1 , 1 , 1 , 10);
      gc -> clearColor(0.5, 0.5, 0.5, 1.0);

      OpenGLVertexShader vertexShader("vertexShader.glsl");

      OpenGLFragmentShader fragmentShader("fragmentShader.glsl");

      program = new OpenGLProgram();
      program -> attachShader(vertexShader);
      program -> attachShader(fragmentShader);
      program -> bindAttributeLocation(1, "pos");
      program -> link();

      program -> detachShader(vertexShader);
      program -> detachShader(fragmentShader);

    } catch (Exception& ex) {
      caught(ex);
    }
  }


public:
  MainView(OpenGLApplet& applet, int width, int height, const char* name)
  :OpenGLMainView(applet, width, height, name)
  {
  }

  ~MainView()
  {
  }
};
}

//
int main(int argc, char** argv)
{
  try {
    ModuleFileName module;
    const char*  name = module.getAppName();
    OpenGLApplet applet(argc, argv);

    MainView view(applet, 400, 300, name);
    view.realize();

    applet.run();

  } catch (Exception& ex) {
    caught(ex);
  }
  return 0;
}
