SOL4Py Sample: RoadSignsClassifier

SOL4Py Samples

We have used RoadSigns on the web-sites to create a samll dataset to RoadSignsModel:

  • JAF

  • JAPAN DRIVER'S LICENCE

  • Road signs in Japan


  • See aslo the web site: Traffic Signs Classification with a Convolutional Neural Network

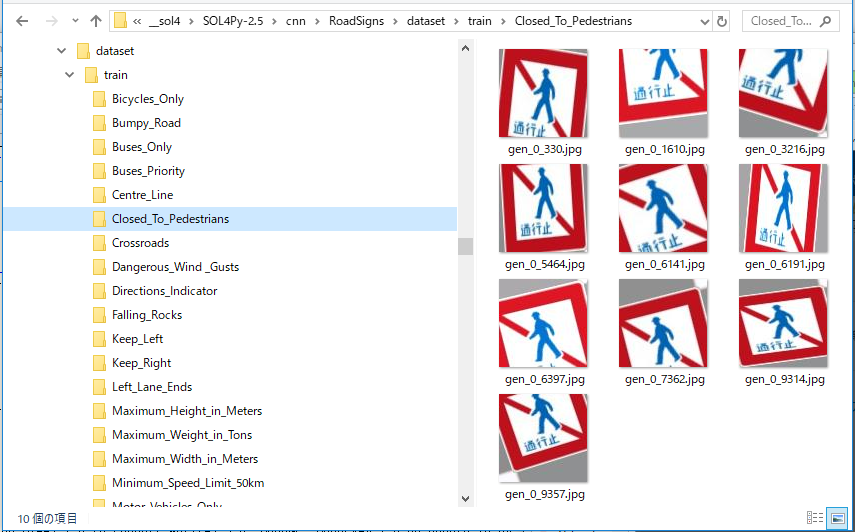

    Our small dataset example is shown below. The images in each roadsign category are generated by using Keras ImaeDataGenerator from the base images on the web-sites above. The size of each image in the small dataset is (88, 88, 3), which implys 88 pixels x 88 pixels x 3 channels. This may be a better recognizable size than (32, 32, 3) to humans and CNN model.



    We have used Keras ImageDataGenerator to augment the above small dataset:
    AugmentedImagePreview

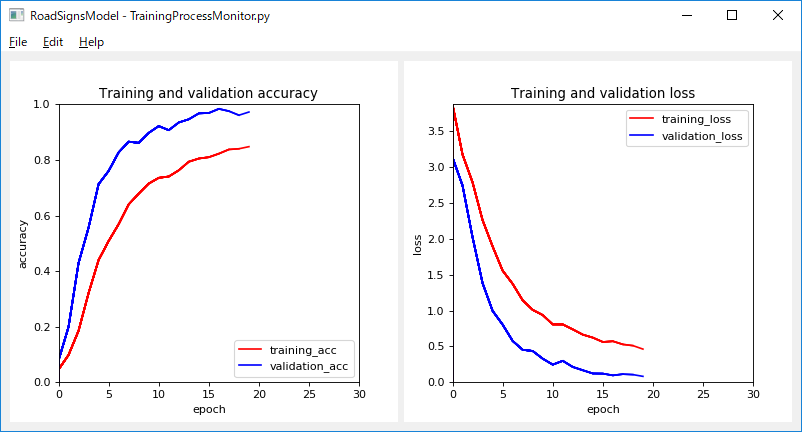

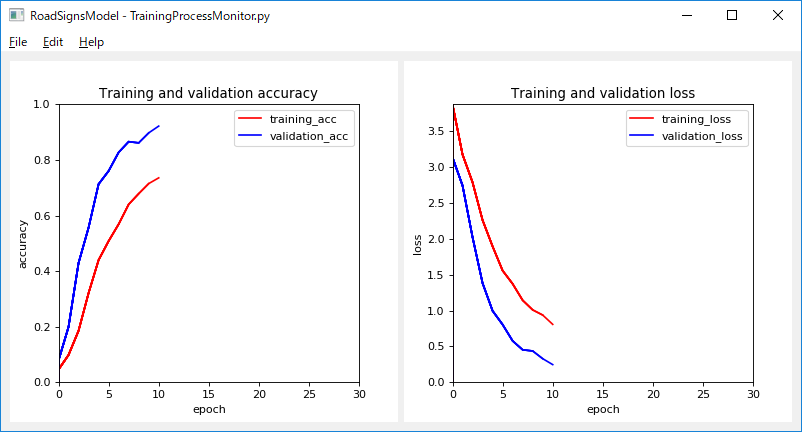

    TrainingProcessMonitor Graphs of RoadSignsModel by using Keras ImageDataGenerator are shown below:























    #******************************************************************************
    #

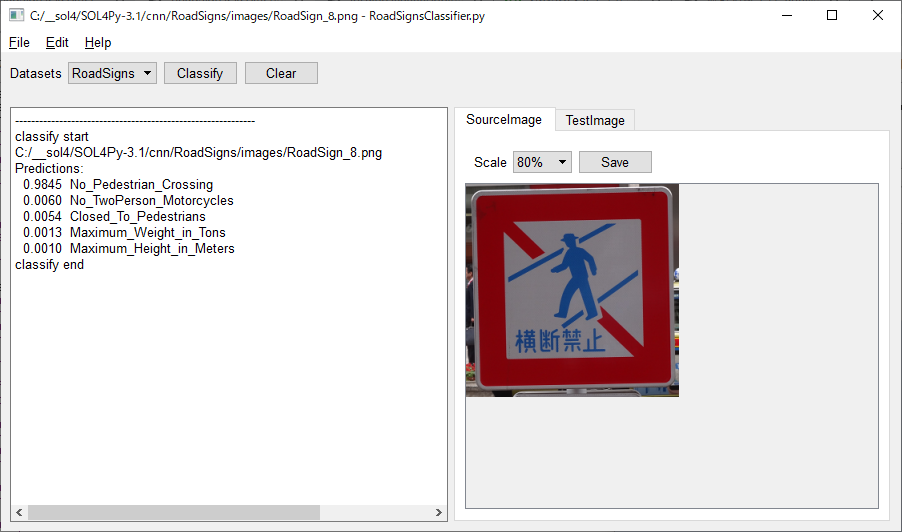

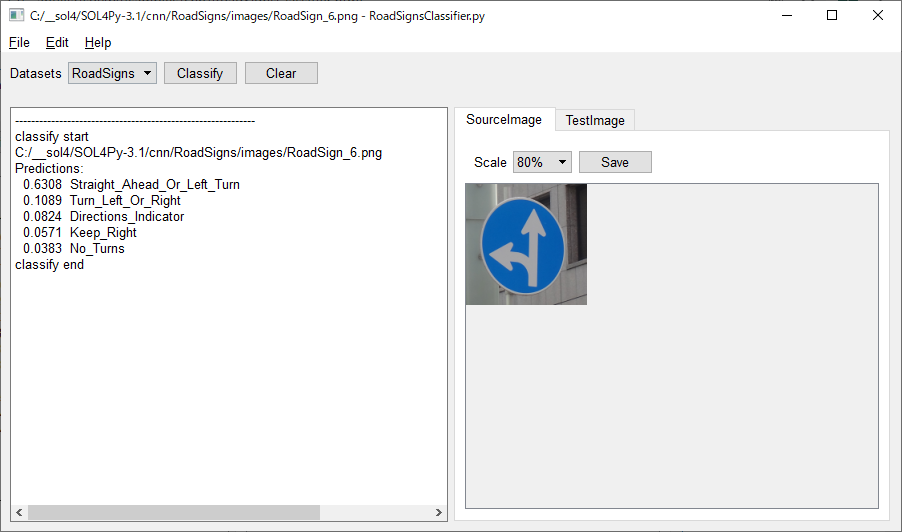

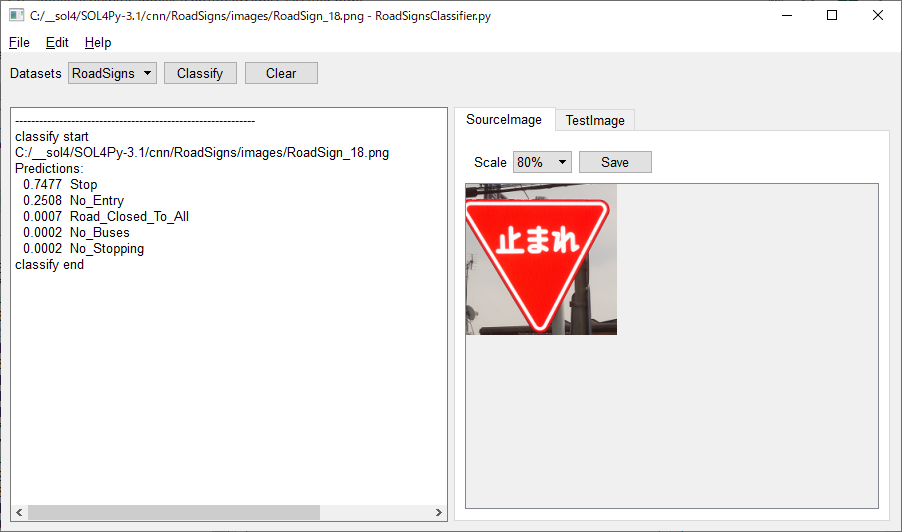

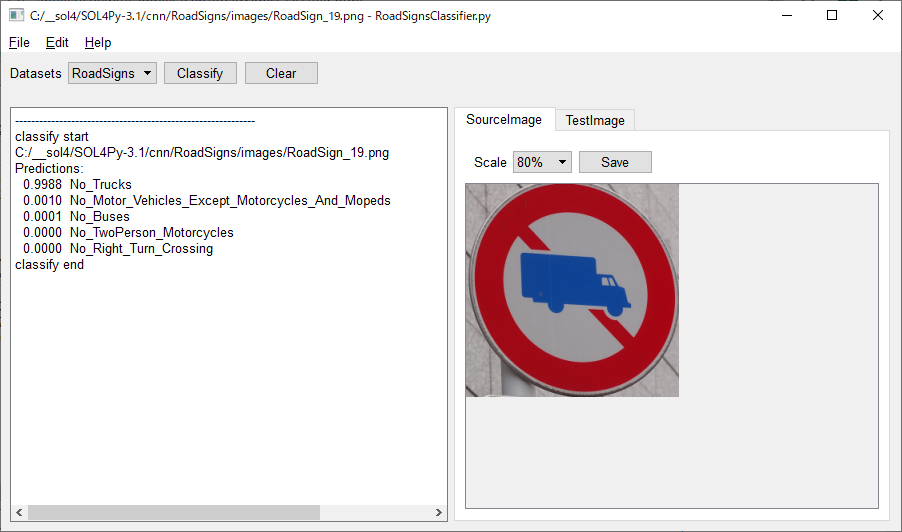

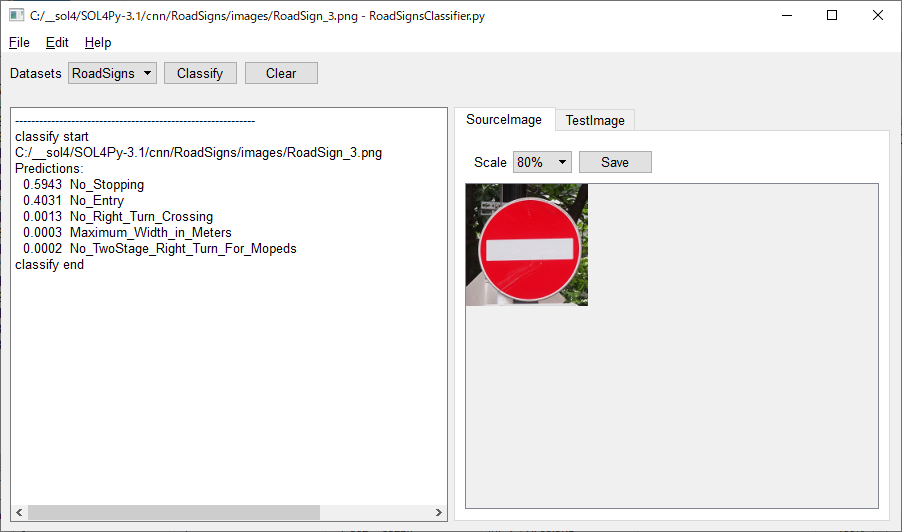

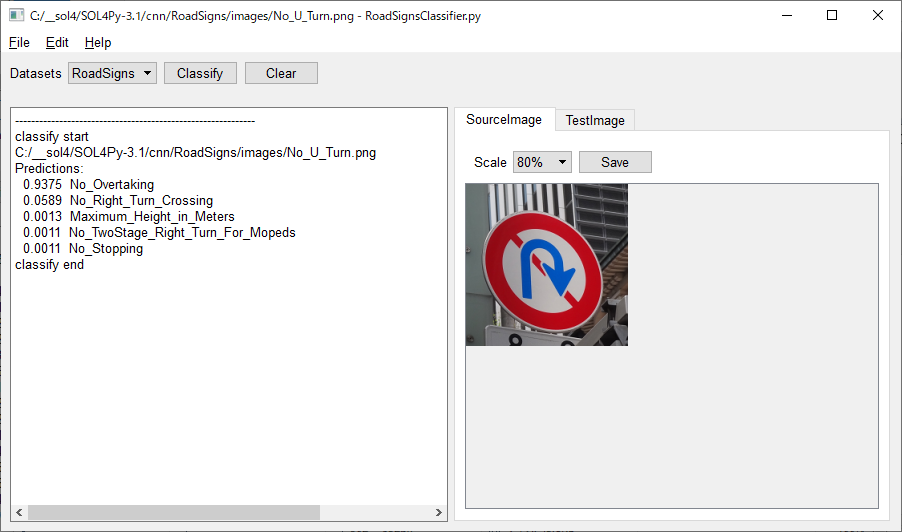

    #  Copyright (c) 2018-2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
    #
    #    This program is free software: you can redistribute it and/or modify
    #    it under the terms of the GNU General Public License as published by
    #    the Free Software Foundation, either version 3 of the License, or
    #    (at your option) any later version.
    #
    #    This program is distributed in the hope that it will be useful,
    #    but WITHOUT ANY WARRANTY; without even the implied warranty of
    #    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    #    GNU General Public License for more details.
    #
    #    You should have received a copy of the GNU General Public License
    #    along with this program.  If not, see <http://www.gnu.org/licenses/>.
    #
    #******************************************************************************


    # 2019/05/29


    #  RoadSignslassifier.py

    # encodig: utf-8

    import sys
    import os
    import time
    import traceback
    import pandas as pd
    import seaborn as sns

    import matplotlib.pyplot as plt
    import numpy as np

    from keras.models import Sequential
    from keras.layers.convolutional import Conv2D
    from keras.layers.pooling import MaxPool2D
    from keras.layers.core import Dense,Activation,Dropout,Flatten
    from keras.datasets import cifar10
    from keras.utils import np_utils
    from keras.preprocessing.image import load_img, img_to_array


    sys.path.append('../../')

    from SOL4Py.ZApplicationView import *
    from SOL4Py.ZLabeledComboBox import *
    from SOL4Py.ZPushButton      import *
    from SOL4Py.ZVerticalPane    import *
    from SOL4Py.ZPILImageCropper import *

    from SOL4Py.ZScrolledPlottingArea import *
    from SOL4Py.ZScalableScrolledImageView import *
    from SOL4Py.ZTabbedWindow import *

    from RoadSignsModel import *


    ############################################################
    # Classifier View

    class MainView(ZApplicationView):
      # Class variables

      # ClassifierView Constructor
      def __init__(self, title, x, y, width, height):
        super(MainView, self).__init__(title, x, y, width, height)
        self.font        = QFont("Arial", 10)
        self.setFont(self.font)

        self.model_loaded = False

        self.class_names_set = [None, None]

        # keras.preprocessing.image
        self.image       = None

        # 1 Add a labeled combobox to top dock area
        self.add_datasets_combobox()

        # 2 Add a textedit to the left pane of the center area.
        self.text_editor = QTextEdit()
        self.text_editor.setLineWrapColumnOrWidth(600)
        self.text_editor.setLineWrapMode(QTextEdit.FixedPixelWidth)
        self.text_editor.setGeometry(0, 0, width/2, height)

        # 3 Add a tabbed_window the rigth pane of the center area.
        self.tabbed_window = ZTabbedWindow(self, 0, 0, width/2, height)

        # 4 Add a imageview to the tabbed_window.
        self.image_view = ZScalableScrolledImageView(self, 0, 0, width/3, height/3)
        self.tabbed_window.add("SourceImage", self.image_view)

        # 5 Add a test_imageview to the right pane of the center area.
        self.test_image_view = ZScalableScrolledImageView(self, 0, 0, width/3, height/3)
        self.tabbed_window.add("TestImage", self.test_image_view)

        self.add(self.text_editor)
        self.add(self.tabbed_window)

        self.model = RoadSignsModel(self.dataset_id, mainv=self)
        if self.model.is_trained():
          self.model.create_model()
          # 6 Load trained model provided trained.

          self.model.load()
          self.model.compile()
          #self.model.evaluate()
          self.model_loaded = True
        else:
          print("You have to create a model file and weight file")
          print("Please run: python ImageModel.py " + str(self.dataset_id))
          QMessageBox.warning(self, "RoadSignsClassifier",
               "Model/Weight File Missing.\nPlease run: python RoadSignsModel.py " + str(self.dataset_id))

        self.show()


      def add_datasets_combobox(self):
        self.dataset_id = RoadSignsModel.IMAGE_MODEL
        self.datasets_combobox = ZLabeledComboBox(self, "Datasets", Qt.Horizontal)
        self.datasets_combobox.setFont(self.font)

        # We use the following datasets.
        self.datasets = {"ImageModel": RoadSignsModel.IMAGE_MODEL}
        title = self.get_title()

        self.setWindowTitle(self.__class__.__name__ + " - " + title)

        self.datasets_combobox.add_items(self.datasets.keys())
        #self.datasets_combobox.add_activated_callback(self.datasets_activated)
        self.datasets_combobox.set_current_text(self.dataset_id)

        self.classifier_button = ZPushButton("Classify", self)
        self.classifier_button.setEnabled(False)

        self.clear_button = ZPushButton("Clear", self)

        self.classifier_button.add_activated_callback(self.classifier_button_activated)
        self.clear_button.add_activated_callback(self.clear_button_activated)

        self.datasets_combobox.add(self.classifier_button)
        self.datasets_combobox.add(self.clear_button)

        self.set_top_dock(self.datasets_combobox)


      def write(self, text):
        self.text_editor.append(text)
        self.text_editor.repaint()


      def xxxdatasets_activated(self, text):
        self.dataset_id = self.datasets[text]
        title = self.get_title()
        self.setWindowTitle(text + " - " + title)

        self.classifier_button.setEnabled(False)

        self.model.set_dataset_id(self.dataset_id)
        if self.model.is_trained():
          self.model.load_dataset()
          self.model.compile()
          #self.model.evaluate()
          self.model_loaded = True

        else:
          print("You have to create a model file and weight file")
          print("Run: python RoadSignsModel.py " + str(self.dataset_id))
          QMessageBox.warning(self, "ImageClassifier",
               "Model/Weight File Missing.\nPlease run: python RoadSignsModel.py " + str(self.dataset_id))


      # Show FileOpenDialog and select an image file.
      def file_open(self):
        if self.model_loaded:
          options = QFileDialog.Options()
          filename, _ = QFileDialog.getOpenFileName(self,"FileOpenDialog", "",
                         "All Files (*);;Image Files (*.png;*jpg;*.jpeg)", options=options)
          if filename:
            self.load_file(filename)
            self.classifier_button.setEnabled(True)
        else:
          QMessageBox.warning(self, "ImageClassifier: Weight File Missing",
               "Please run: python RoadSignsModel.py " + str(self.dataset_id))


      def load_file(self, filename):
        try:
          image_cropper = ZPILImageCropper(filename)
          cropped_file = "./~temp_cropped.png"
          # 1 Crop maximum square region from the filename and save it as a cropped_file.
          image_cropper.crop_maximum_square_region(cropped_file)

          # 2 Load an image from the cropped_fle.
          self.image_view.load_image(cropped_file)
          self.set_filenamed_title(filename)

          # 3 Load an image from the cropped_file as Pillow image format.
          self.image = load_img(cropped_file, target_size=(RoadSignsModel.IMAGE_WIDTH, RoadSignsModel.IMAGE_HEIGHT))

          # 4 Convert the self.image to numpy ndarray.
          self.image = img_to_array(self.image)

          # 5 Set self.nadarryy to the test_image_view.
          self.test_image_view.set_image(self.image)

          # 6 Convert self.image in range[0-1.0]
          self.image = self.image.astype('float32')/255.0

          # 7 Expand the dimension of the self.image
          self.image = np.expand_dims(self.image, axis=0)

          #print(self.image.shape)
          os.remove(cropped_file)

        except:
          self.write(formatted_traceback())


      def classifier_button_activated(self, text):
        self.classifier_button.setEnabled(False)
        self.clear_button.setEnabled(False)
        try:
          self.classify()
        except:
          self.write(formatted_traceback())

        self.classifier_button.setEnabled(True)
        self.clear_button.setEnabled(True)


      def classify(self):
        self.write("classify start")

        prediction = self.model.predict(self.image)

        pred = np.argmax(prediction, axis=1)
        self.write("Prediction: index " + str(pred))
        class_names = self.model.classes

        if pred >0 or pred <len(class_names):
          self.write("Prediction:" + class_names[int(pred)])

        self.write("classify end")


      def clear_button_activated(self, text):
        self.text_editor.setText("")
        pass

    ############################################################
    #
    if main(__name__):

      try:
        app_name  = os.path.basename(sys.argv[0])
        applet    = QApplication(sys.argv)

        main_view = MainView(app_name, 40, 40, 900, 500)
        main_view.show ()

        applet.exec_()

      except:
        traceback.print_exc()



    Last modified:30 May 2019
