SOL4Py Samples

We have used pictograms on the web-site: TOKYO2020-SPORT-PICTOGRAMS

We have created the following python scripts to create Torch_TOKYO2020_SPORT_PICTOGRAMS_Classifier sample program.

Torch_TOKYO2020_SPORT_PICTOGRAMS_Dataset

Torch_TOKYO2020_SPORT_PICTOGRAMS_DataSetAugmentor

Torch_TOKYO2020_SPORT_PICTOGRAMS_Model

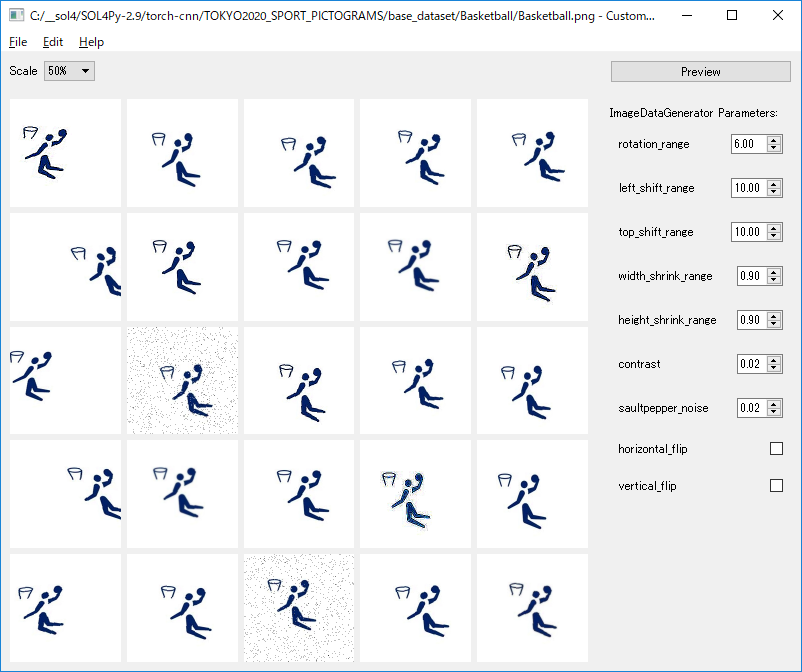

We have used flow_from_directory method of ZImageDataGenerator class to augment each image of TOKYO2020-SPORT-PICTOGRAMS.

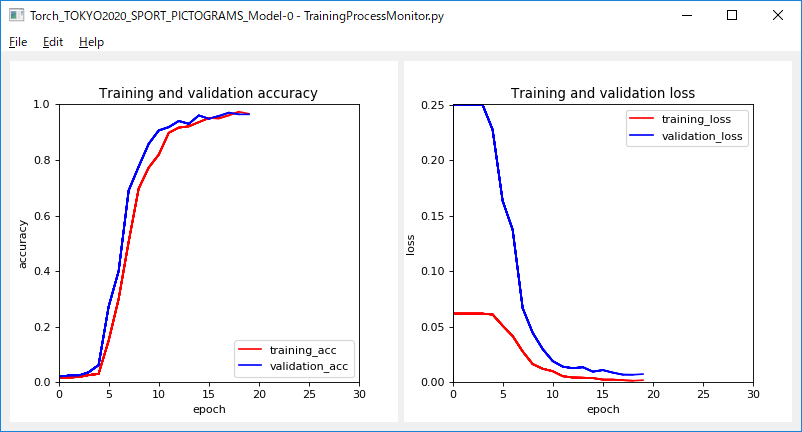

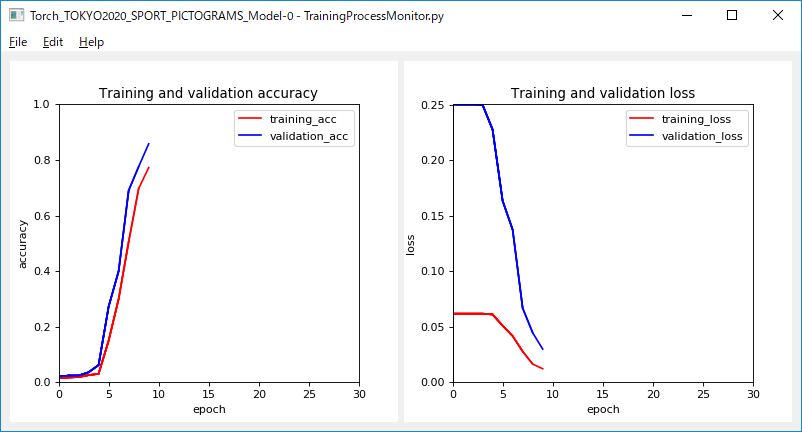

The training process of Torch_TOKYO2020_SPORT_PICTOGRAMS_Model by using dataset generated by ZImageDataGenerator can be monitored by TrainingProcessMonitor as shown below:

#******************************************************************************
#
#  Copyright (c) 2018-2019 Antillia.com TOSHIYUKI ARAI. ALL RIGHTS RESERVED.
#
#    This program is free software: you can redistribute it and/or modify
#    it under the terms of the GNU General Public License as published by
#    the Free Software Foundation, either version 3 of the License, or
#    (at your option) any later version.
#
#    This program is distributed in the hope that it will be useful,
#    but WITHOUT ANY WARRANTY; without even the implied warranty of
#    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
#    GNU General Public License for more details.
#
#    You should have received a copy of the GNU General Public License
#    along with this program.  If not, see <http://www.gnu.org/licenses/>.
#
#******************************************************************************


# 2019/07/13

#  Torch_TOKYO2020_SPORT_PICTOGRAMS_Classifier.py

# encodig: utf-8

import sys
import os
import time
import traceback
import pandas as pd
import seaborn as sns

import matplotlib.pyplot as plt
import numpy as np

sys.path.append('../../')

from SOL4Py.torch.ZTorchImagePreprocessor import ZTorchImagePreprocessor
from SOL4Py.ZTorchImageClassifierView import *

from Torch_TOKYO2020_SPORT_PICTOGRAMS_Model import *

TOKYO2020_SPORT_PICTOGRAMS = 0


############################################################
# Classifier View

class MainView(ZTorchImageClassifierView):
  # Class variables

  # ClassifierView Constructor
  def __init__(self, title, x, y, width, height):
    super(MainView, self).__init__(title, x, y, width, height,
               datasets= {"TOKYO2020_SPORT_PICTOGRAMS": TOKYO2020_SPORT_PICTOGRAMS})

    self.model_loaded = False

    self.resize = 64 #128
    self.crop   = 64 #128

    self.image       = None
    #  Load trained model
    self.classes = self.get_class_names()

    self.model = Torch_TOKYO2020_SPORT_PICTOGRAMS_Model(self.dataset_id, mainv=self)

    if self.model.is_trained():
      self.model.load_dataset()
      self.model.create()
      self.model.load()    # Load a trained weight
      self.model.evaluate()
      self.model_loaded = True
    else:
      print("You have to create a model file")
      print("Please run: python TOKYO2020_SPORT_PICTOGRAMS_Model.py " + str(self.dataset_id))
      QMessageBox.warning(self, "Torch_TOKYO2020_SPORT_PICTOGRAMS_Classifier",
           "Mode file is missing.\nPlease run: python Torch_TOKYO2020_SPORT_PICTOGRAMS_Model.py " + str(self.dataset_id))

    self.show()

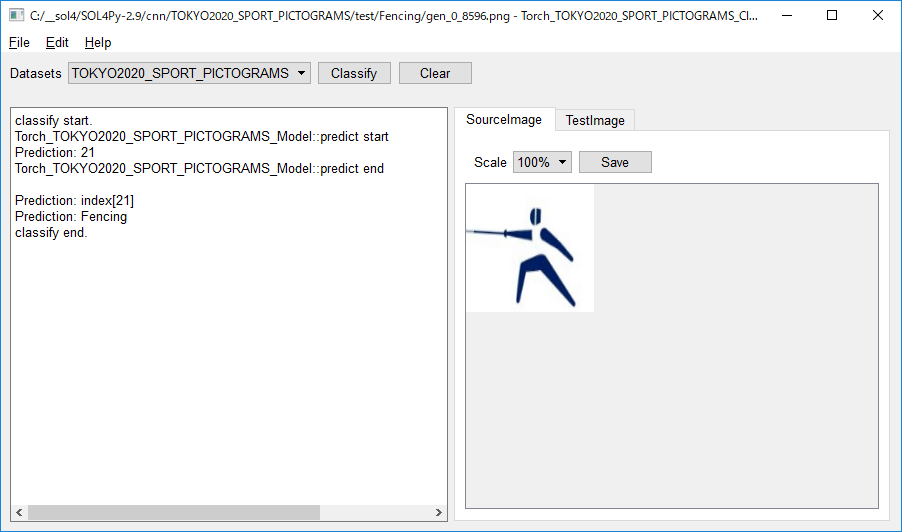

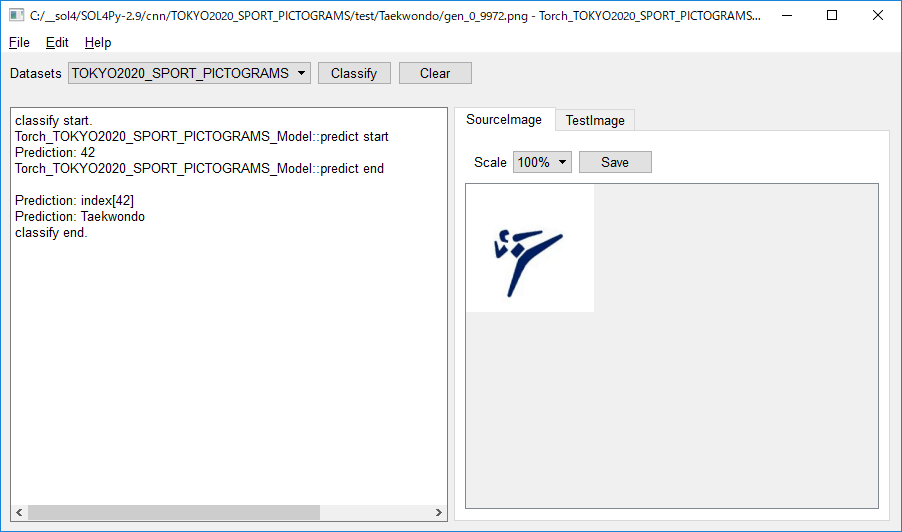

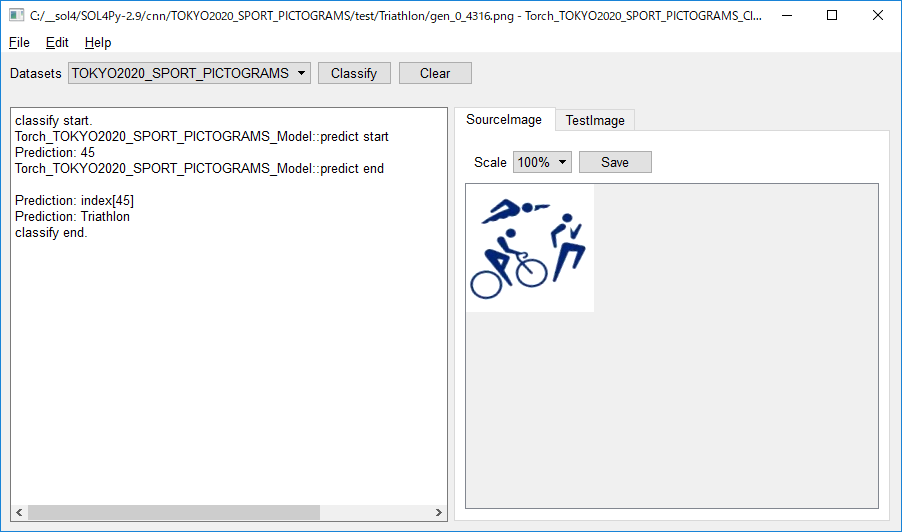

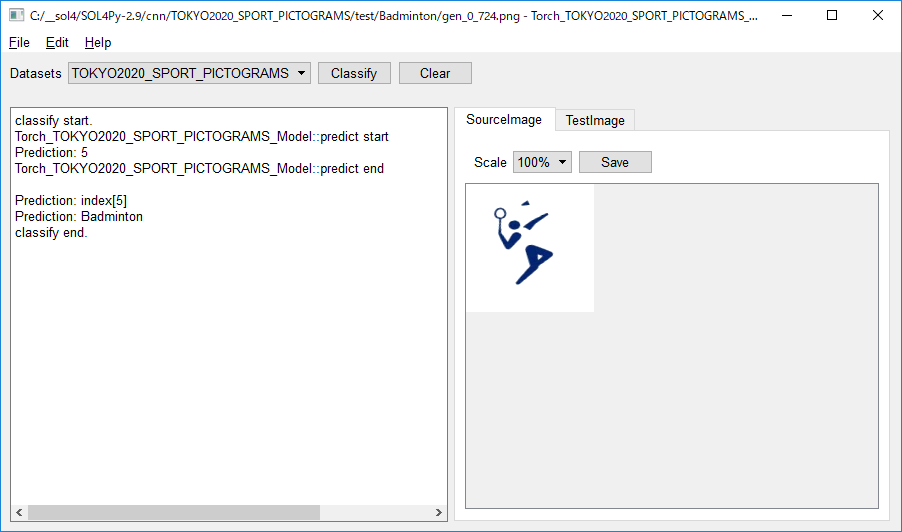

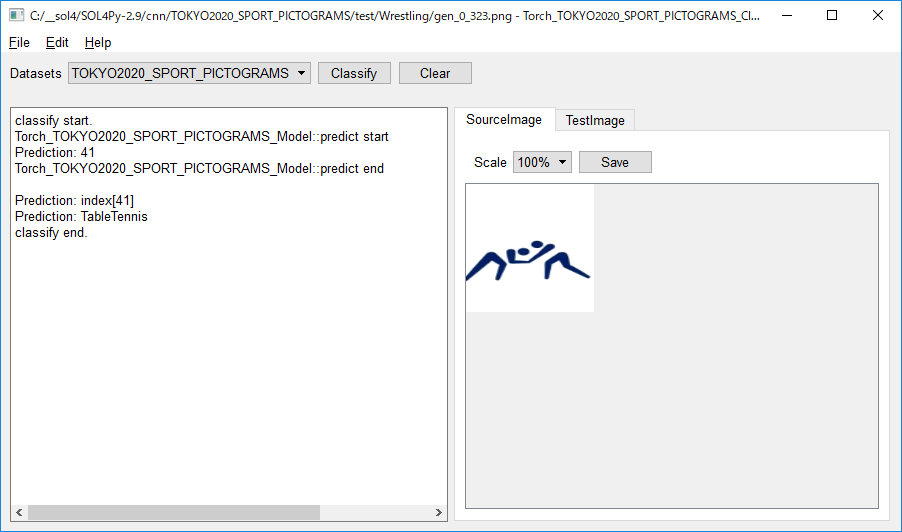

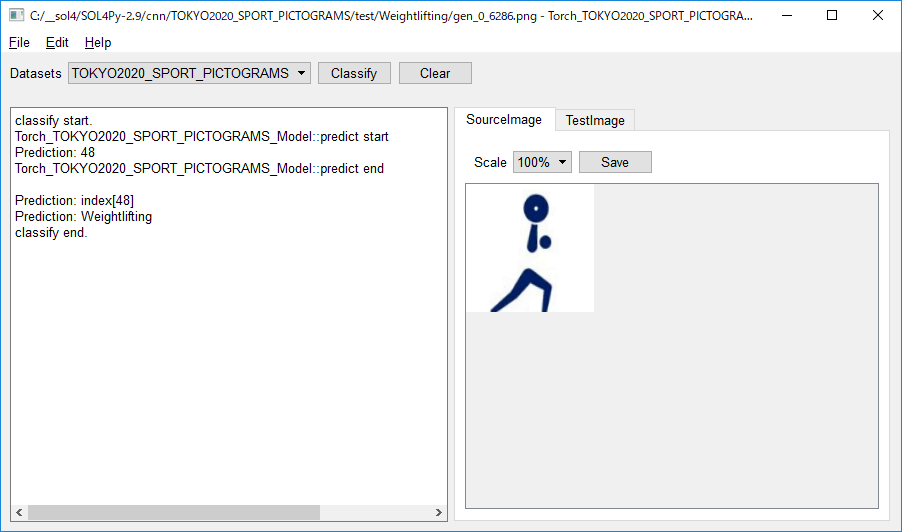

  def classify(self):
    self.write("--------------------------------------------")
    self.write("classify start.")
    self.write(self.filename)
    index = self.model.predict(self.cropped_image)

    label   = self.classes[index]
    self.write("Prediction: {}".format(label) )
    self.write("classify end.")



############################################################
#
if main(__name__):

  try:
    app_name  = os.path.basename(sys.argv[0])
    applet    = QApplication(sys.argv)

    main_view = MainView(app_name, 40, 40, 900, 500)
    main_view.show ()

    applet.exec_()

  except:
    traceback.print_exc()
